Coil Spring: Installation
NOTE:

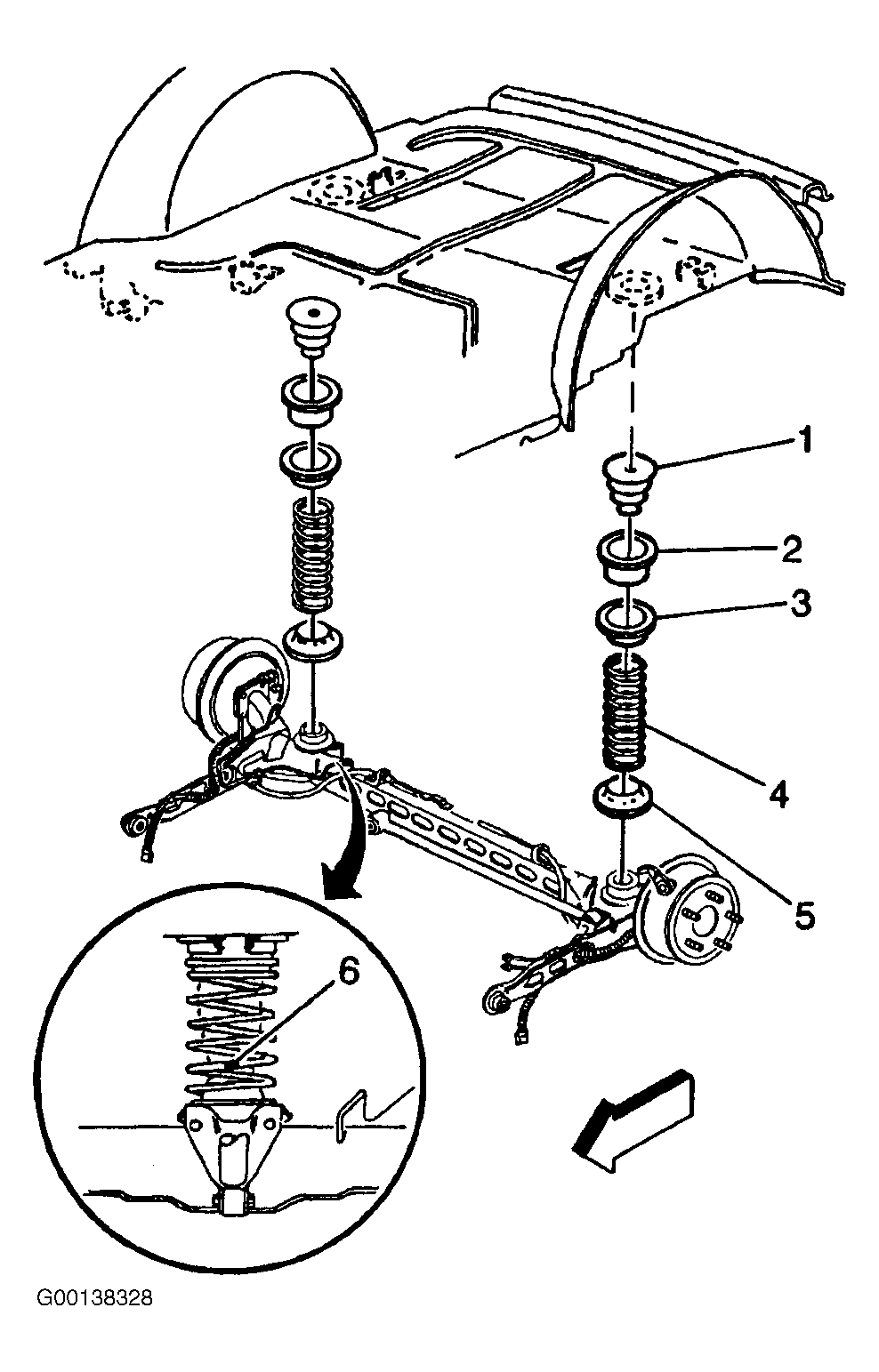

Position the spring so that the paint stripe (6) is facing rearward and centered to the shock absorber. See Fig 1
.
- Install the springs (4) and insulators (5) to the rear axle.
- Use the utility stand in order to raise the rear axle.
- Install the rear axle tie rod to the rear axle. See TIE ROD .
- Install the shock absorbers to rear axle. See SHOCK ABSORBER .
- Install the brake hose bracket to the control arm.
- Remove the utility stand.
- Lower the vehicle.
