Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fog lamp switch to the steering column filler and press into place to secure.

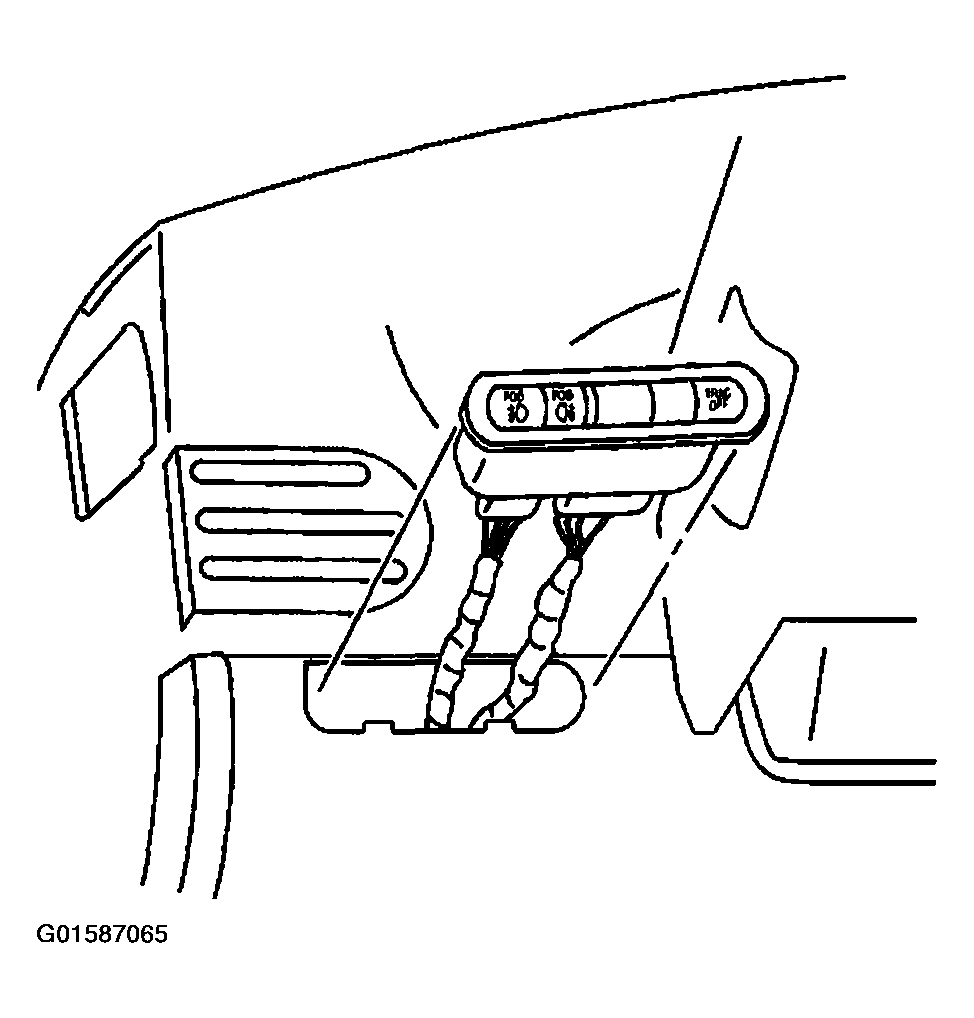

    Fig 1: Positioning Fog Lamp Switch To Steering Column Filler
    G01587065Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the fog lamp switch.
  3. Install the steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages and Console.
  4. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
