Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seal on the drain plug stem.
  2. Install the drain plug. Make sure that the body is fully seated in the side tank.
  3. Lower the vehicle.
  4. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  .

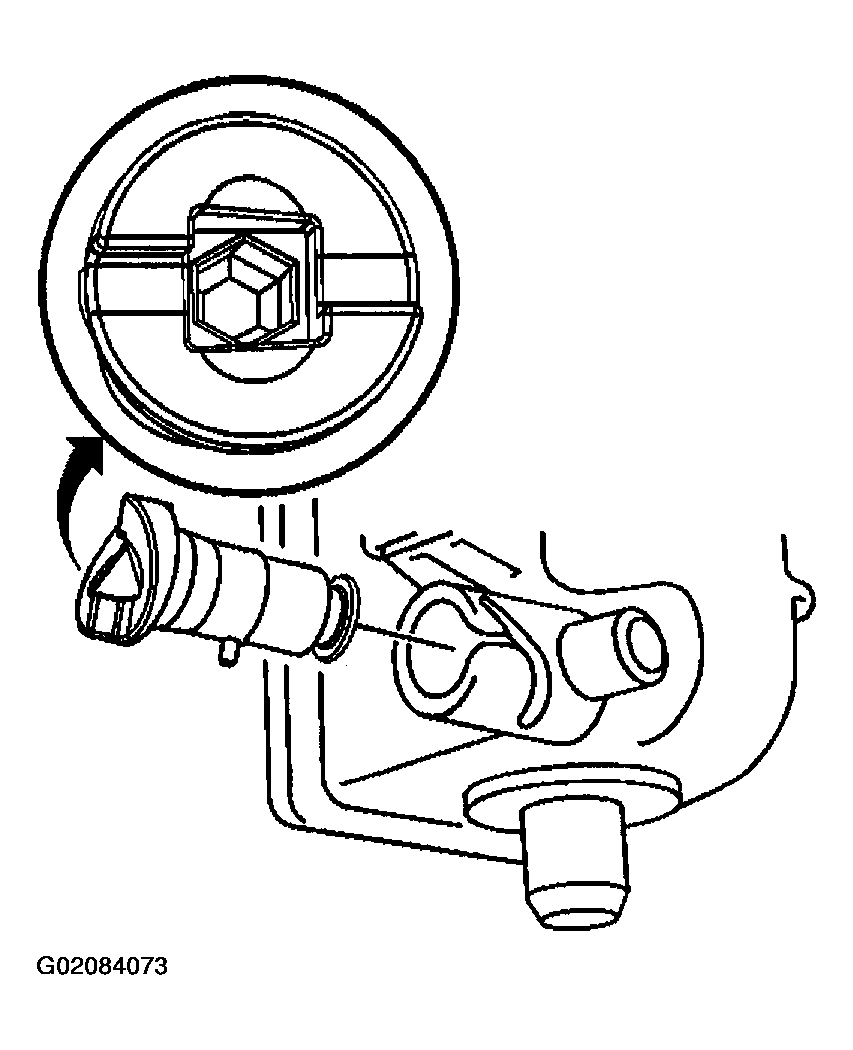

    Fig 1: Installing Drain Plug
    G02084073Courtesy of GENERAL MOTORS CORP.
