Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drill 4 new holes in the air deflector using a drill jig if a new air deflector has been installed.

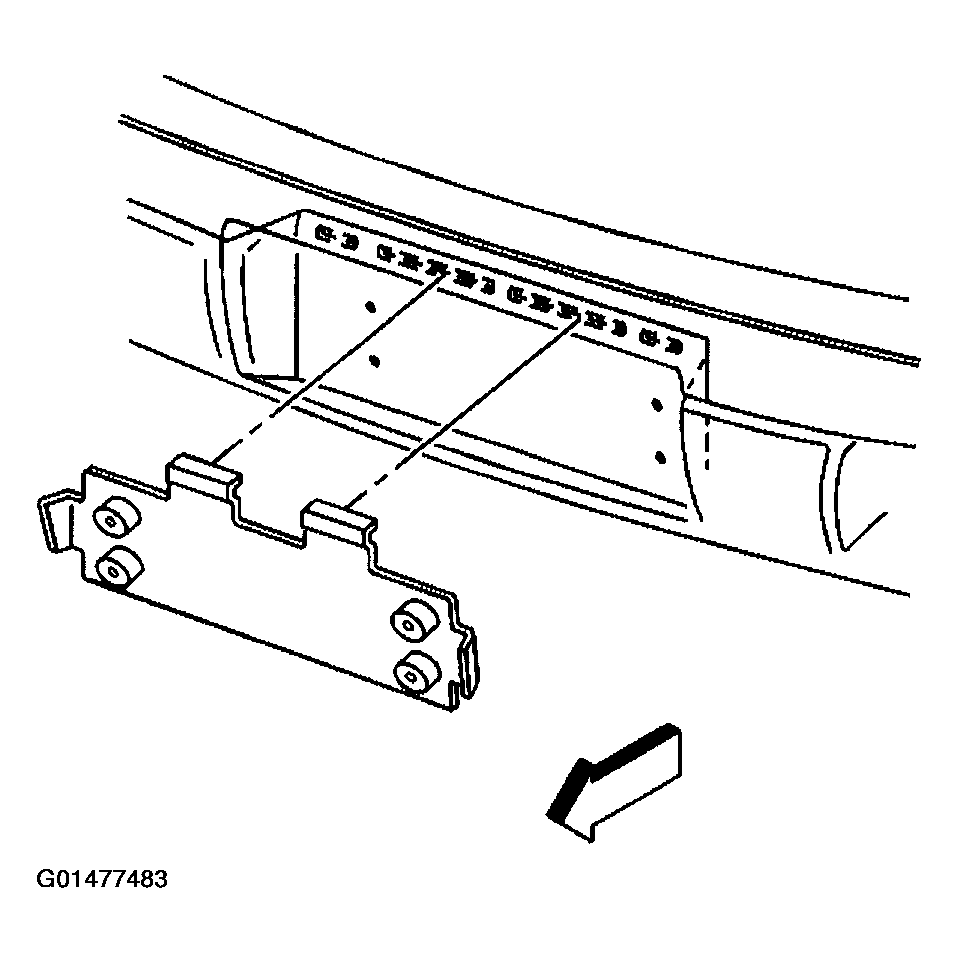

    Fig 1: Locating New Holes For License Plate Bracket
    G01477483Courtesy of GENERAL MOTORS CORP.
  2. Install the bracket to the front air deflector with 4 rivets.
  3. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.

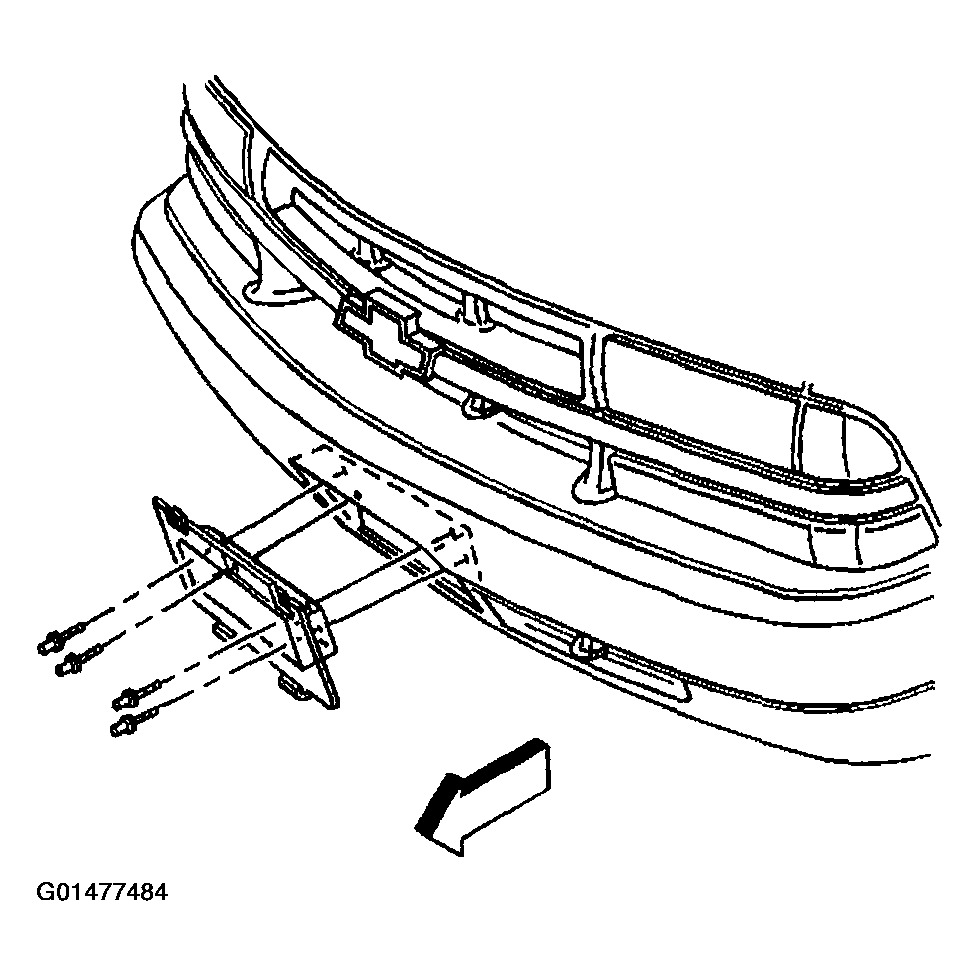

    Fig 2: Installing Bracket To Front Air Deflector With 4 Rivets
    G01477484Courtesy of GENERAL MOTORS CORP.
