Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the bumper impact bar to the vehicle as follows:
1. Position the bumper impact bar on the bumper brackets so that the holes in the impact bar are aligned with the bracket holes.
2. Install 2 bolt plates and 4 nuts on top of the impact bar.
3. Install 2 bolt and nuts through the bottom of the impact bar.
  Tighten

  Tighten the rear bumper impact bar nuts to 90 N.m (66 lb ft).
Install the license plate to the bumper.
Install the license plate lamps. Refer to LICENSE LAMP REPLACEMENT (W/ STEP BUMPER) or LICENSE LAMP REPLACEMENT (W/O STEP BUMPER) or LICENSE LAMP REPLACEMENT (FILLER PANEL) in Lighting Systems.
Install the step pad to the bumper. Refer to STEP PAD REPLACEMENT - REAR BUMPER (PICKUP) or STEP PAD REPLACEMENT - REAR BUMPER (UTILITY) .

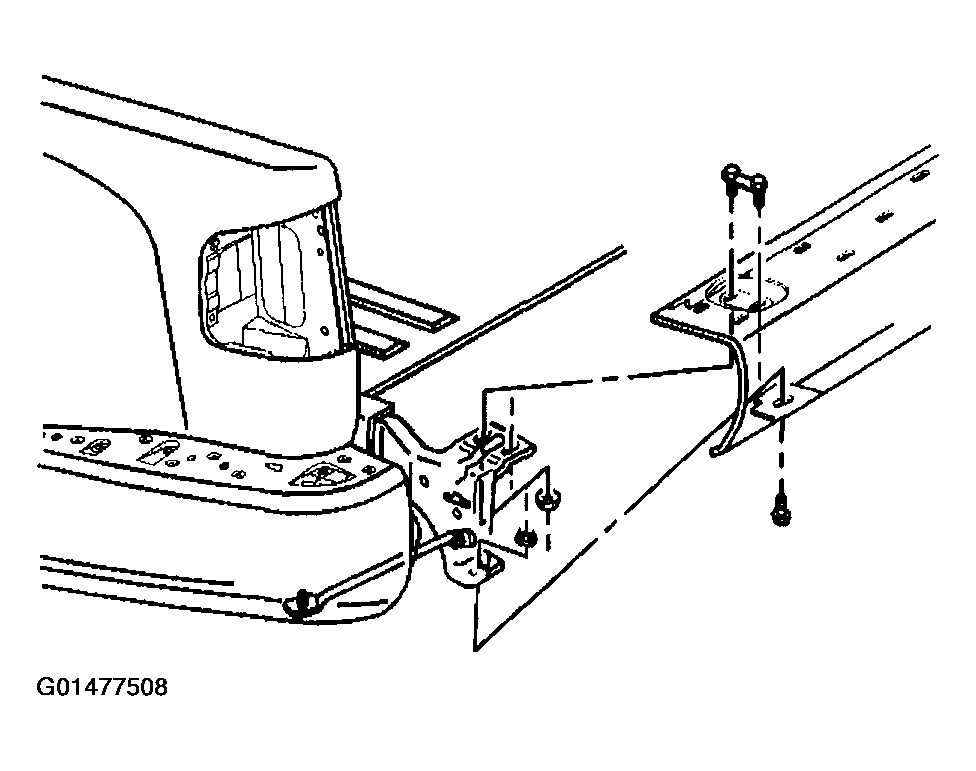

Fig 1: Installing Nuts & Bolts Retaining Bumper Impact Bar To Bumper Brackets
Courtesy of GENERAL MOTORS CORP.
