Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tabs from the filler strip adhesive strips.
  2. Press the filler strip retaining tabs into the bumper slots.
  3. Press the adhesive ends down onto the bumper.

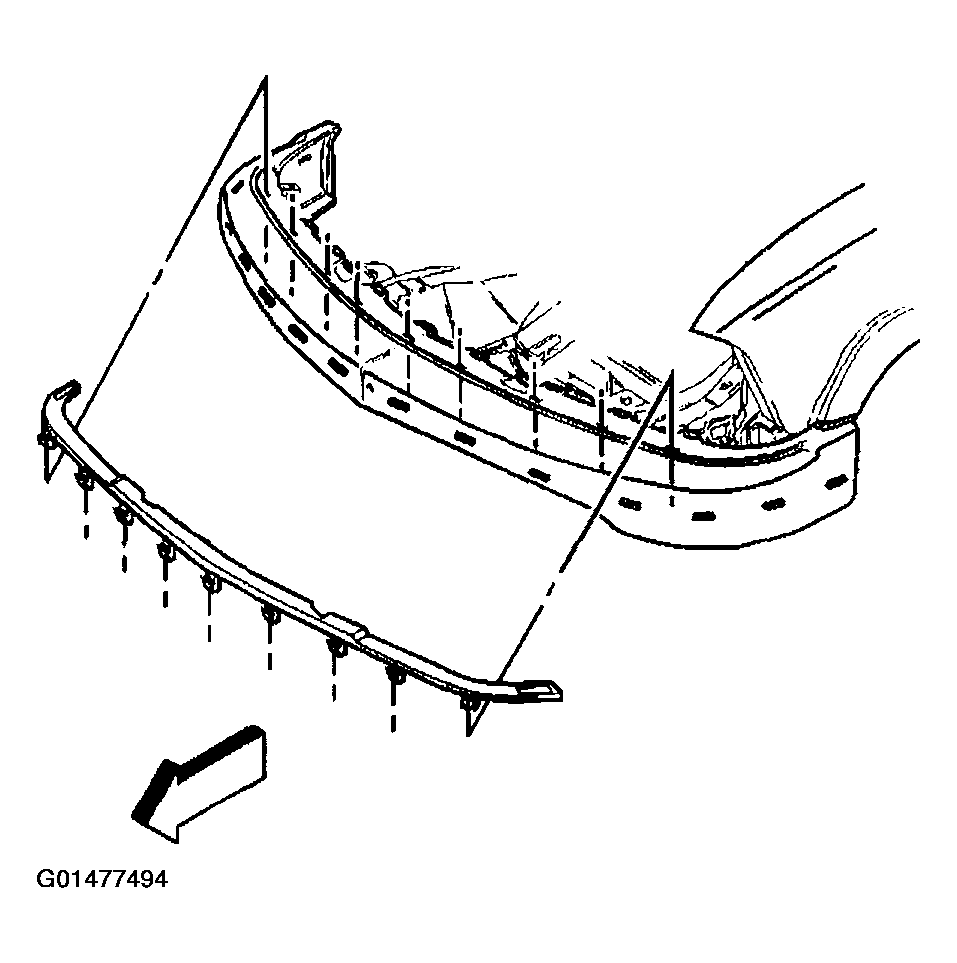

    Fig 1: Bumper Filler Strip
    G01477494Courtesy of GENERAL MOTORS CORP.
