Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamp bulbs to the socket, if removed.
  2. Install the backup lamp bulb/socket to the applique by rotating clockwise.
  3. Install the lift gate applique. Refer to LIFT GATE APPLIQUE REPLACEMENT .

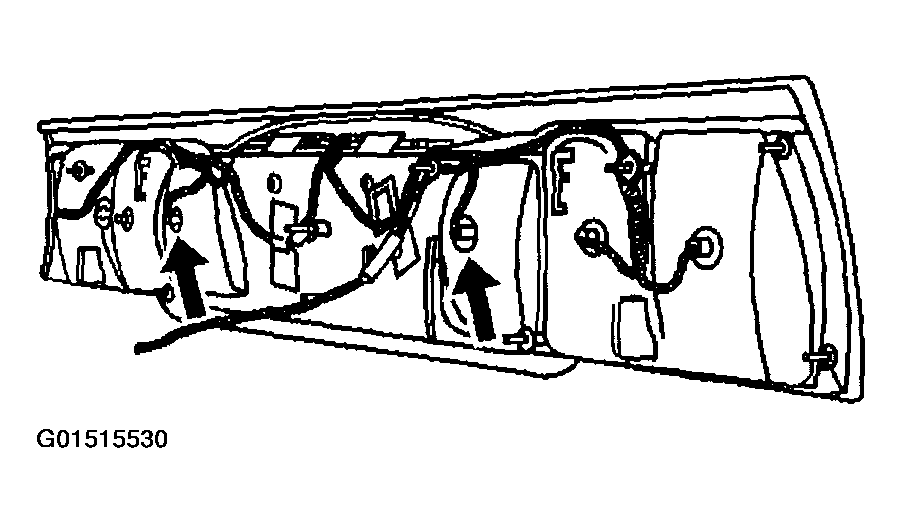

    Fig 1: Backup Lamp Installation
    G01515530Courtesy of GENERAL MOTORS CORP.
