Cruise Control Cable

Disengage cable adjuster lock by pulling adjuster lock-out by hand. See Fig 1 . Adjuster's internal spring will remove most of the cable slack. Remove as much cable slack as possible without moving throttle lever. Engage cable adjuster lock by pushing adjuster lock in.

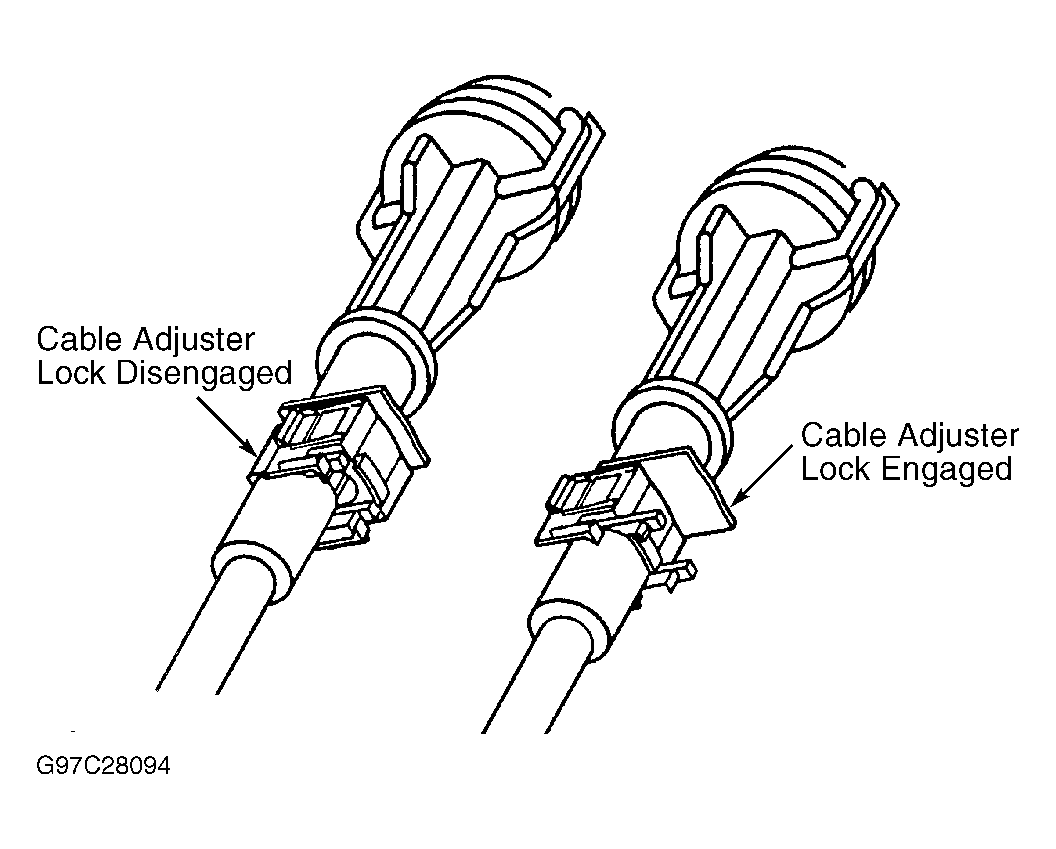

Fig 1: Adjusting Cruise Control Cable
G97C28094Courtesy of GENERAL MOTORS CORP.
