Driven Sprocket Support Assembly: Reassembly

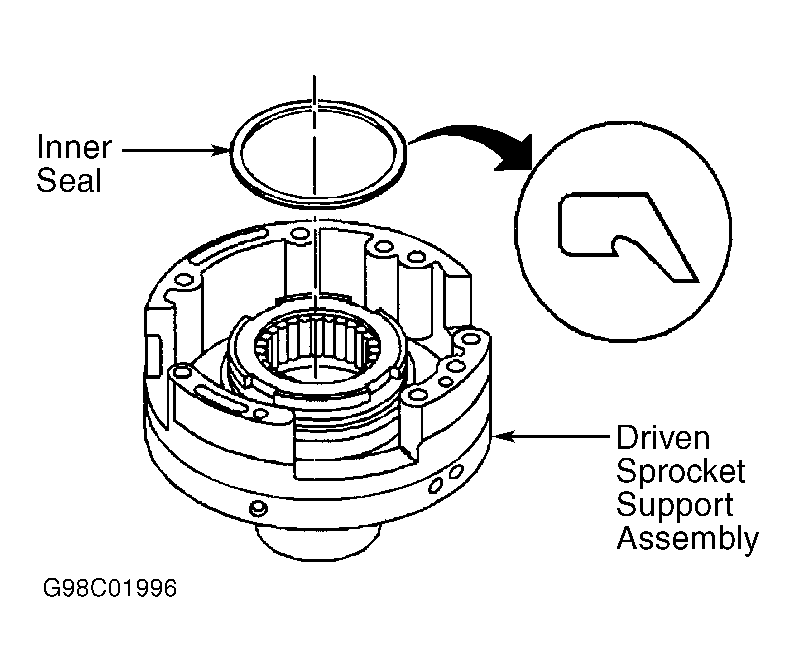

  1. Lubricate NEW inner and outer seal with ATF prior to installation. Install outer seal on 4th clutch piston. Install inner seal for 4th clutch piston onto driven sprocket support hub. See Figure.

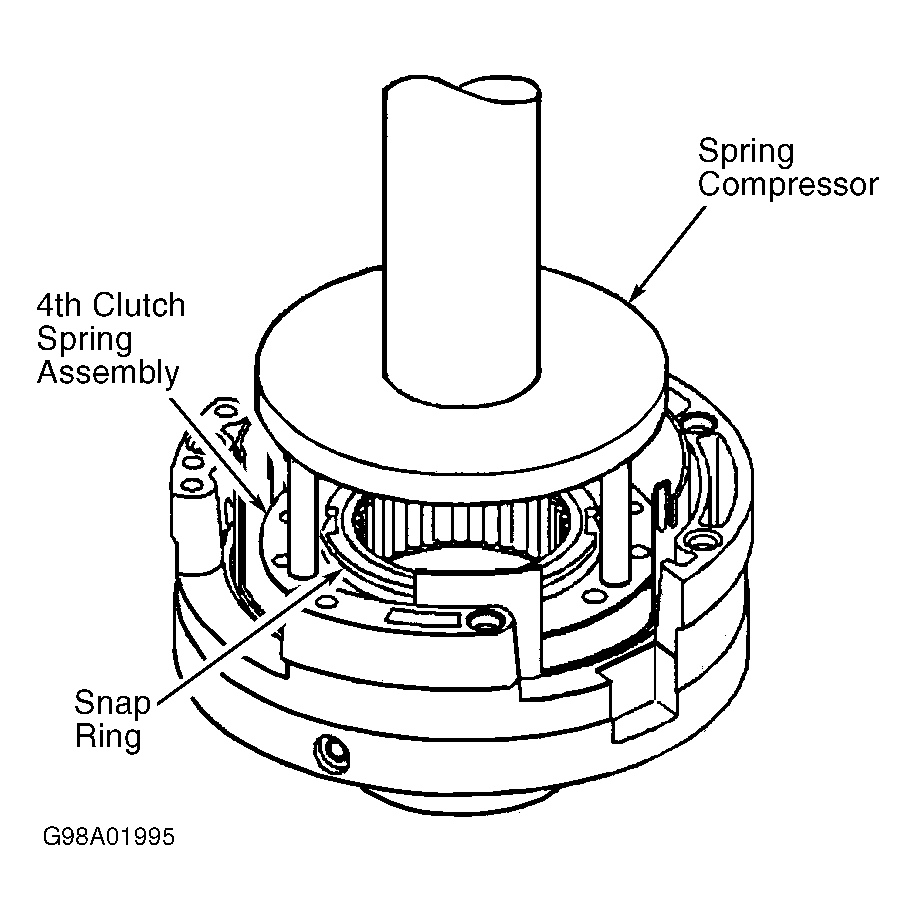

  2. Install 4th clutch piston into driven sprocket support and align components. Install 4th clutch spring assembly into piston. Using spring compressor, compress spring assembly and install snap ring. See Figure. Lubricate NEW oil seal rings for 2nd clutch housing if being replaced. Install rings onto driven sprocket support hub.
