Instrument Panel Fuse Block

Instrument panel fuse block is located under the left side of the instrument panel.

NOTE: AIRBAG fuses are located next to the instrument panel fuse block.

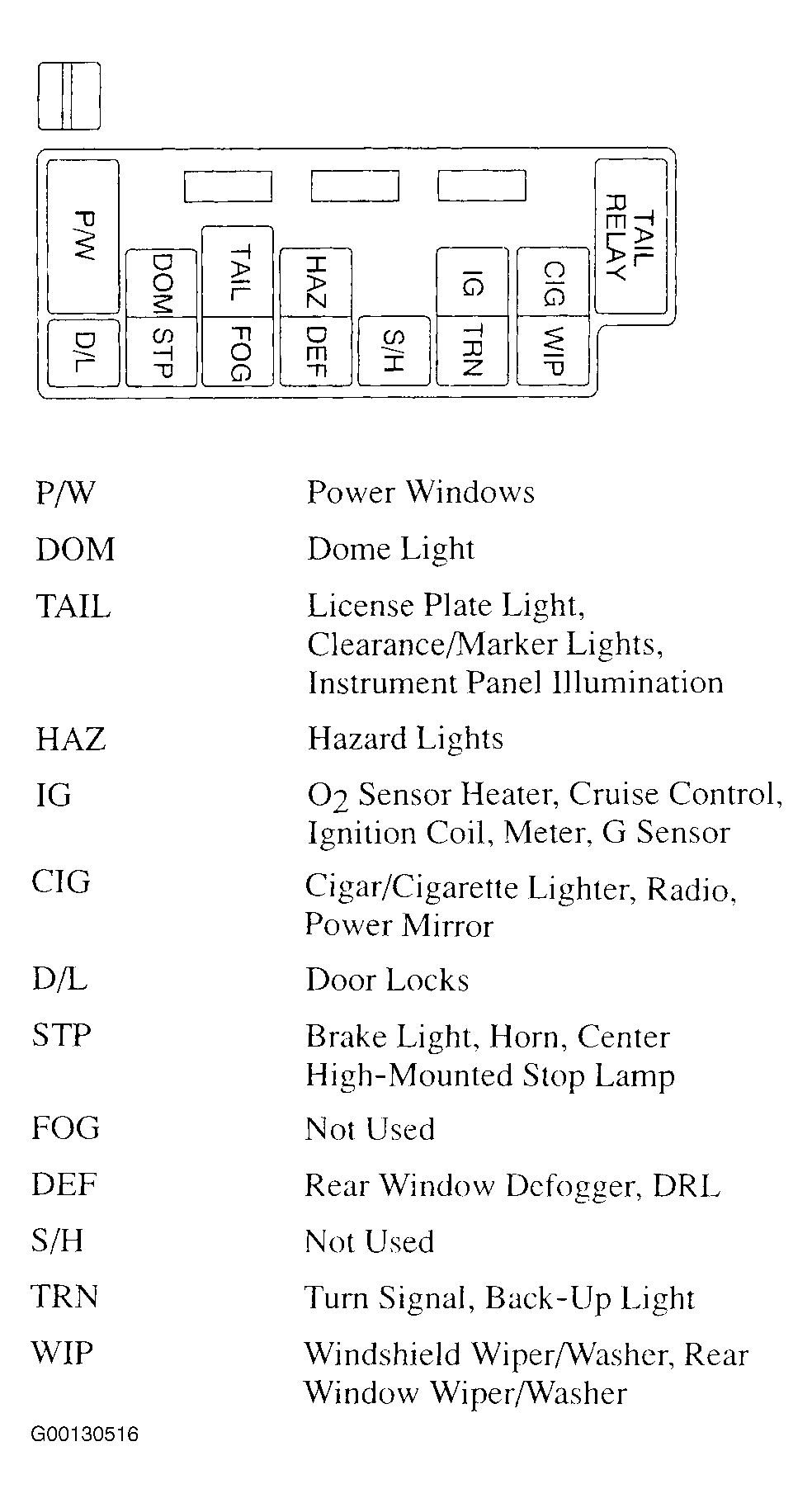

Fig 1: Instrument Panel Fuse Block - Identifying Components & Legend
G00130516Courtesy of GENERAL MOTORS CORP.
