Section 7 (Data Link Communications System - Old Style)
>>
Connector Identification
Connector Identification
WARNING:
This page is about a different variant/trim than selected.

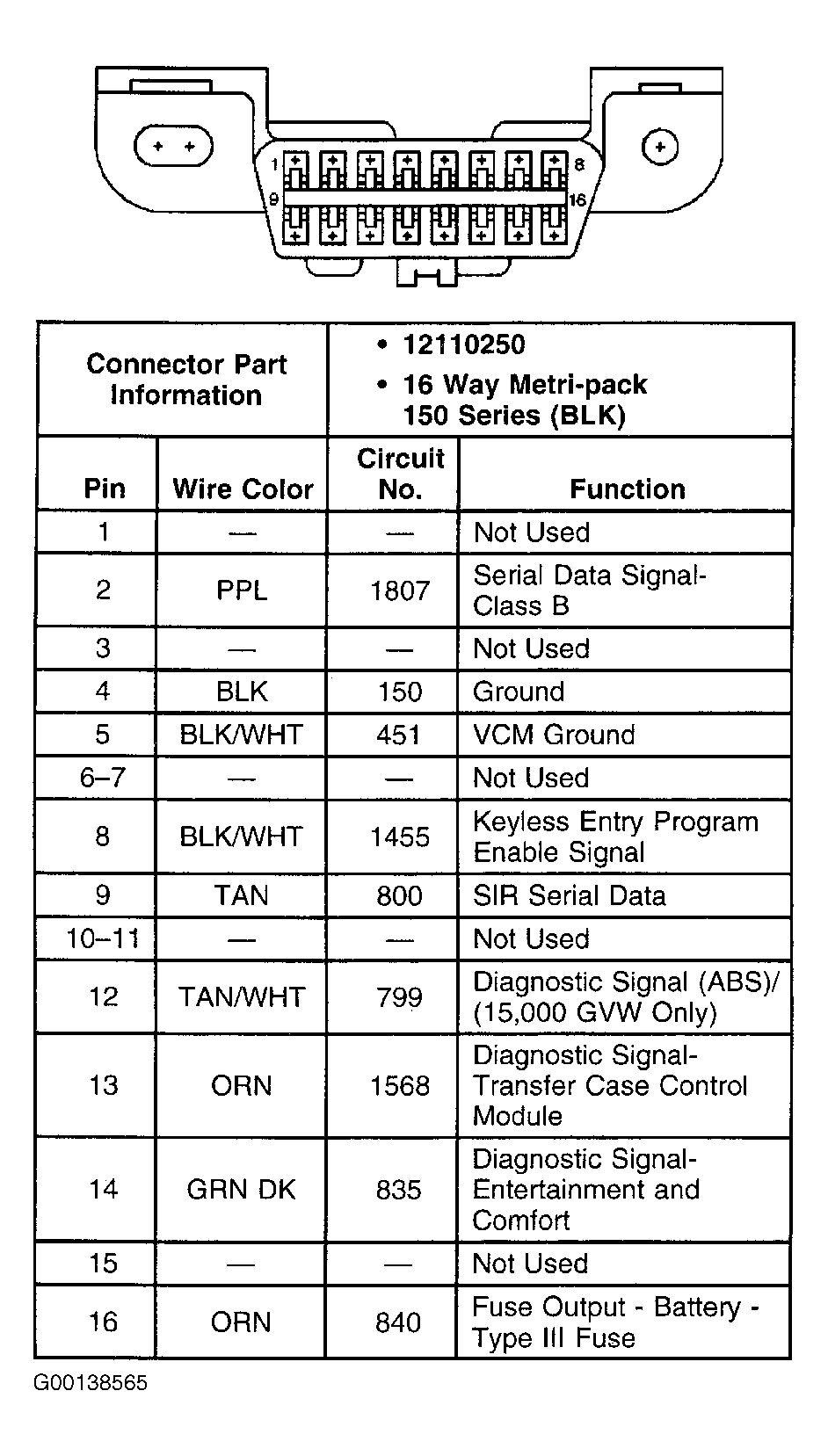

Fig 1: Data Link Connector End View
Courtesy of GENERAL MOTORS CORP.
