COMPONENT LOCATIONS
| Component | Location (Fig. No.) |
|---|---|

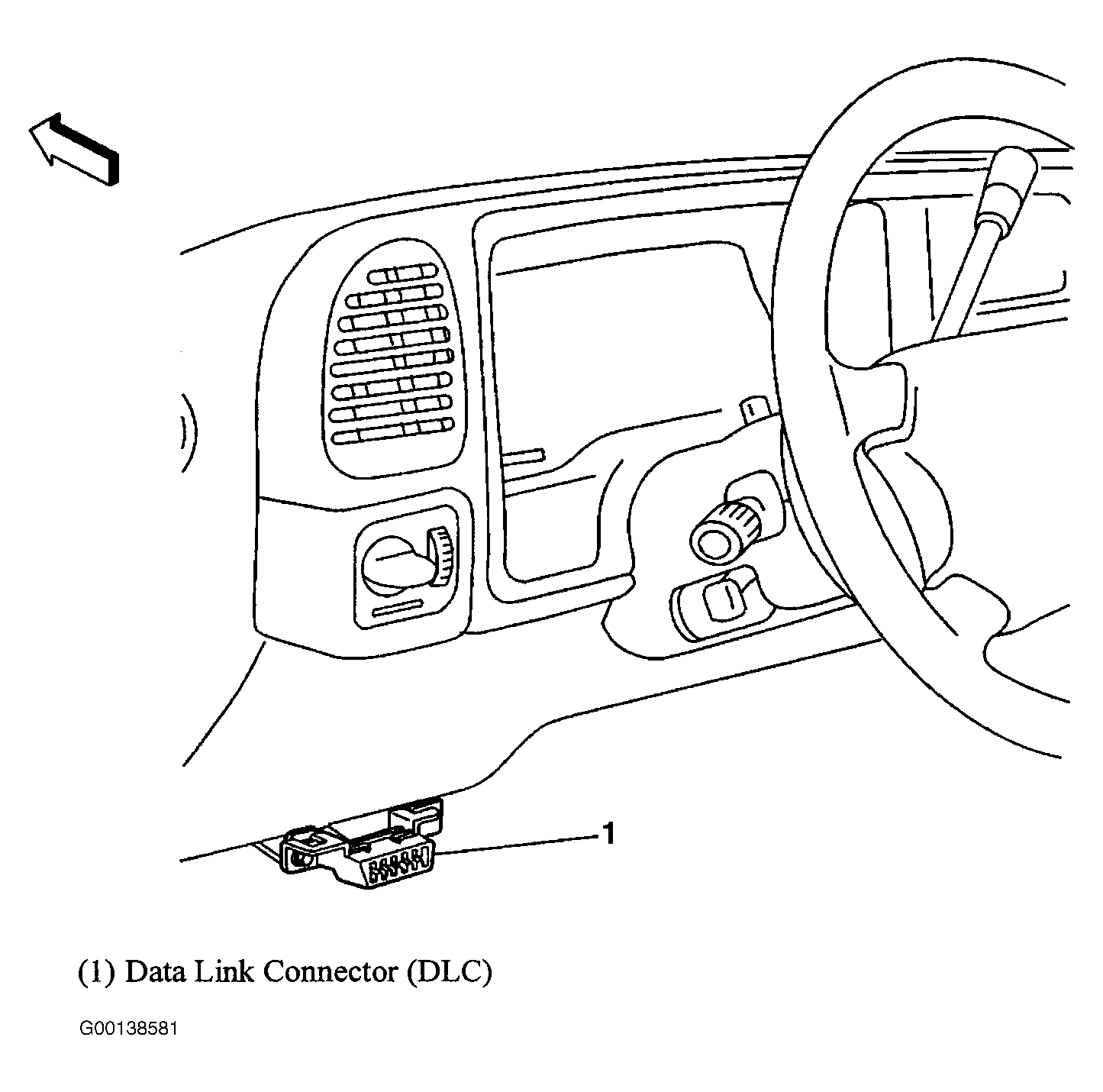

| Data Link Connector (DLC) | Under Driver Side Of Instrument Panel Mounted To Bottom Of Knee Bolster (Fig 1) |

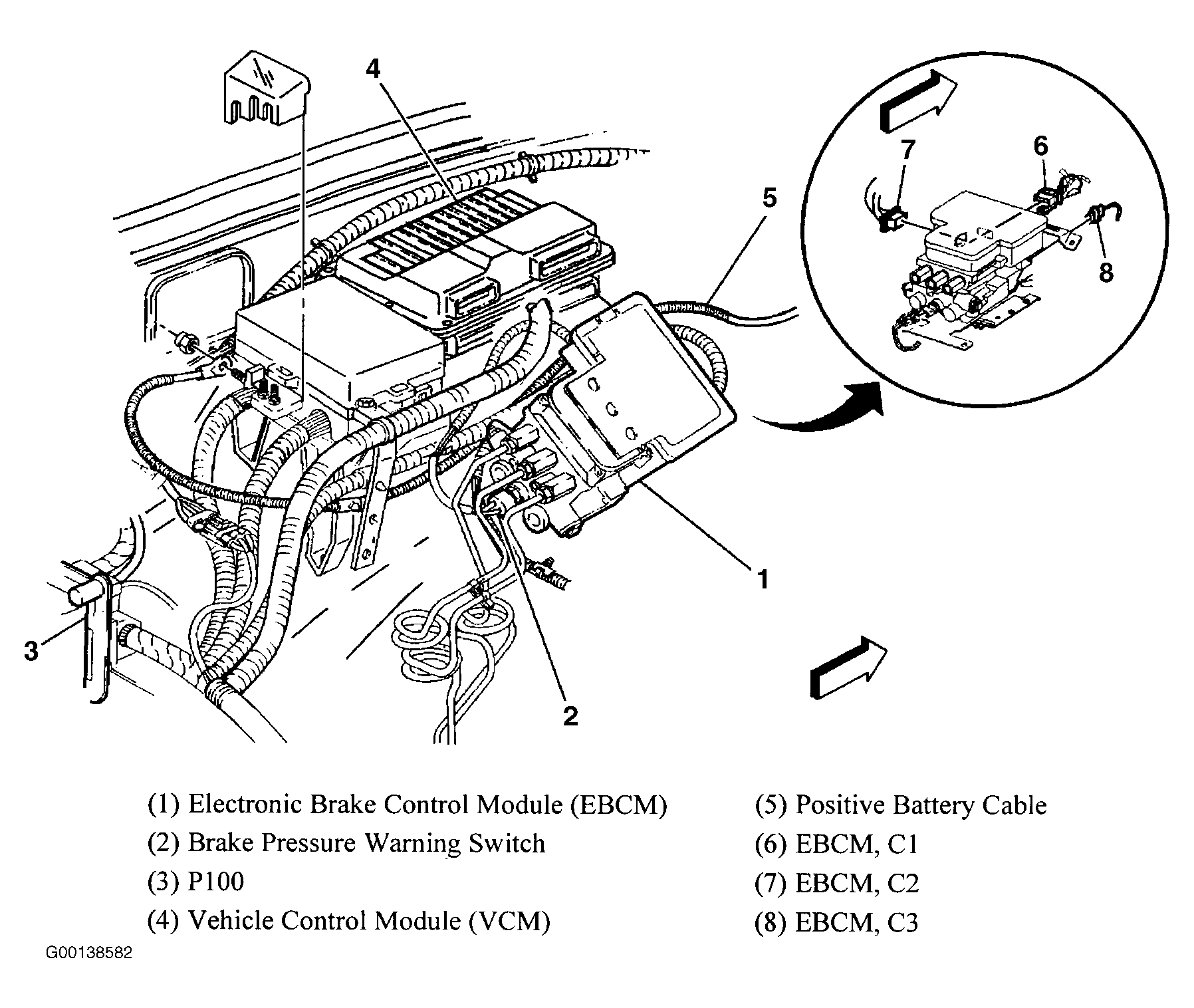

| Electric Brake Control Module (EBCM) | Near Master Brake Cylinder At Driver Front Wheel House (Fig 2) |

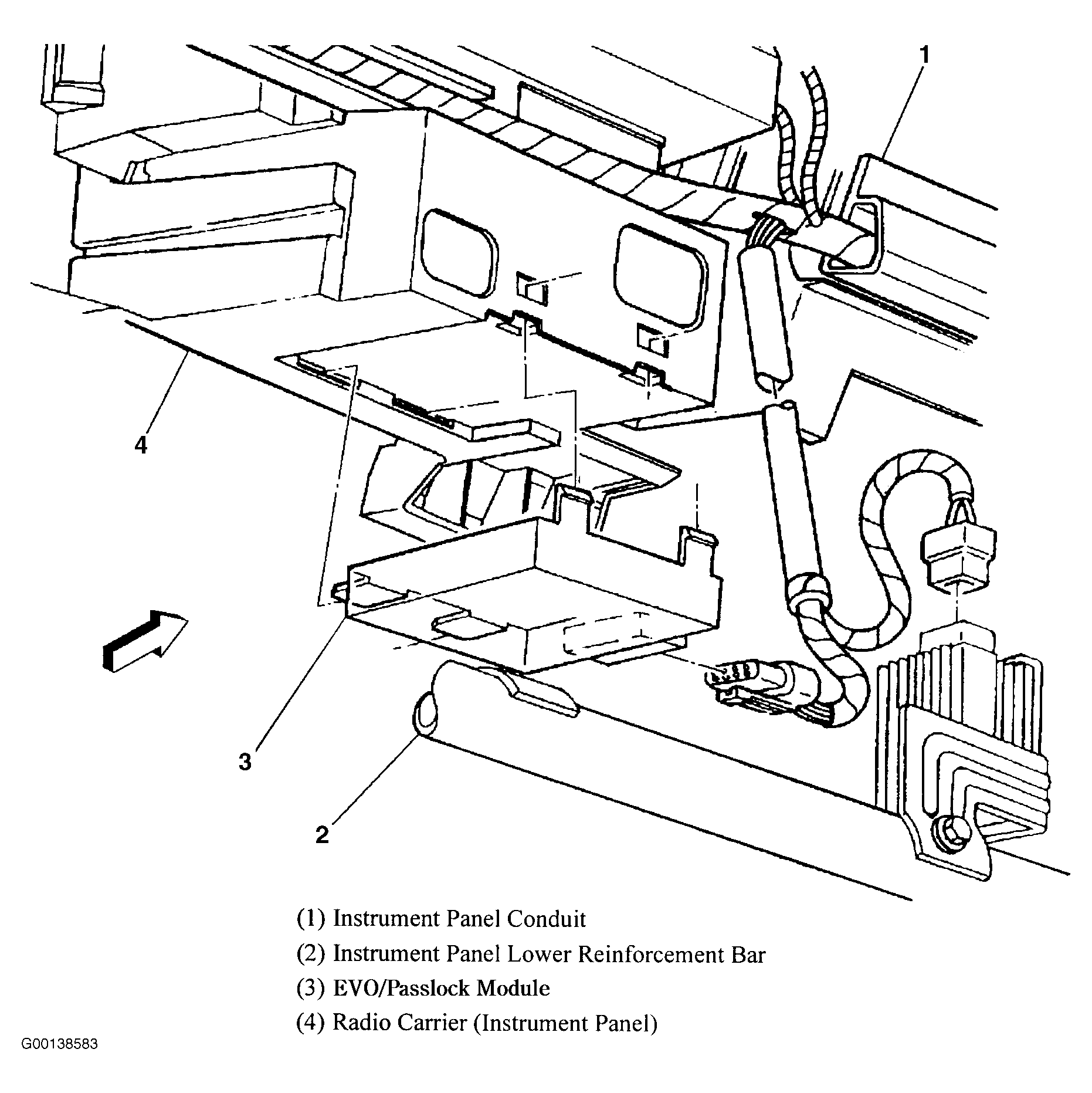

| Electronic Variable Orifice (EVO)/Passlock™ Module | Under Center Of Instrument Panel (Fig 3) |

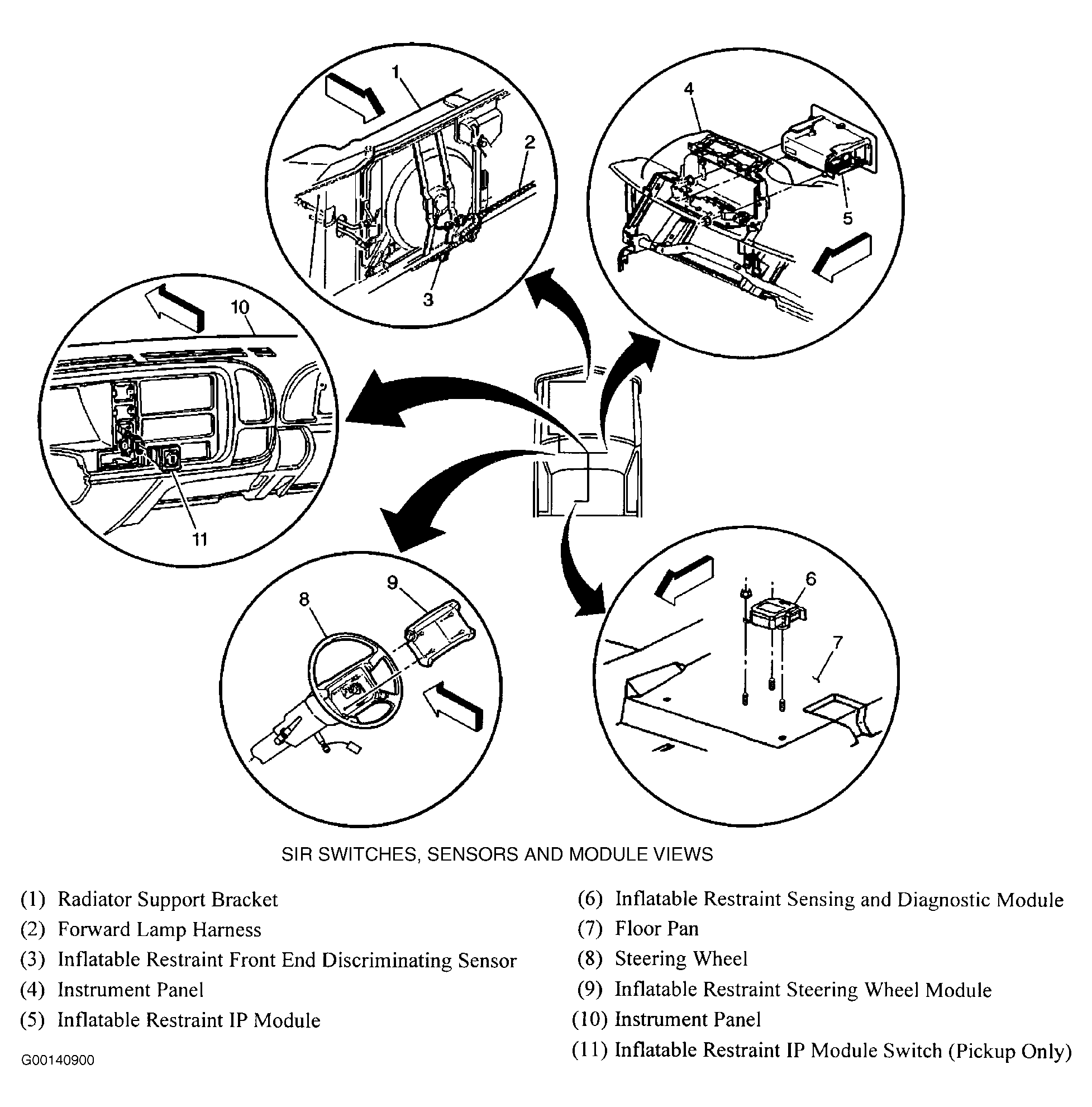

| Inflatable Restraint Sensing And Diagnostic Module (SDM) | Under Driver Seat (Fig 4) |
| Instrument Panel Fuse Block | Lower Driver Side Of Instrument Panel (Fig 5) |

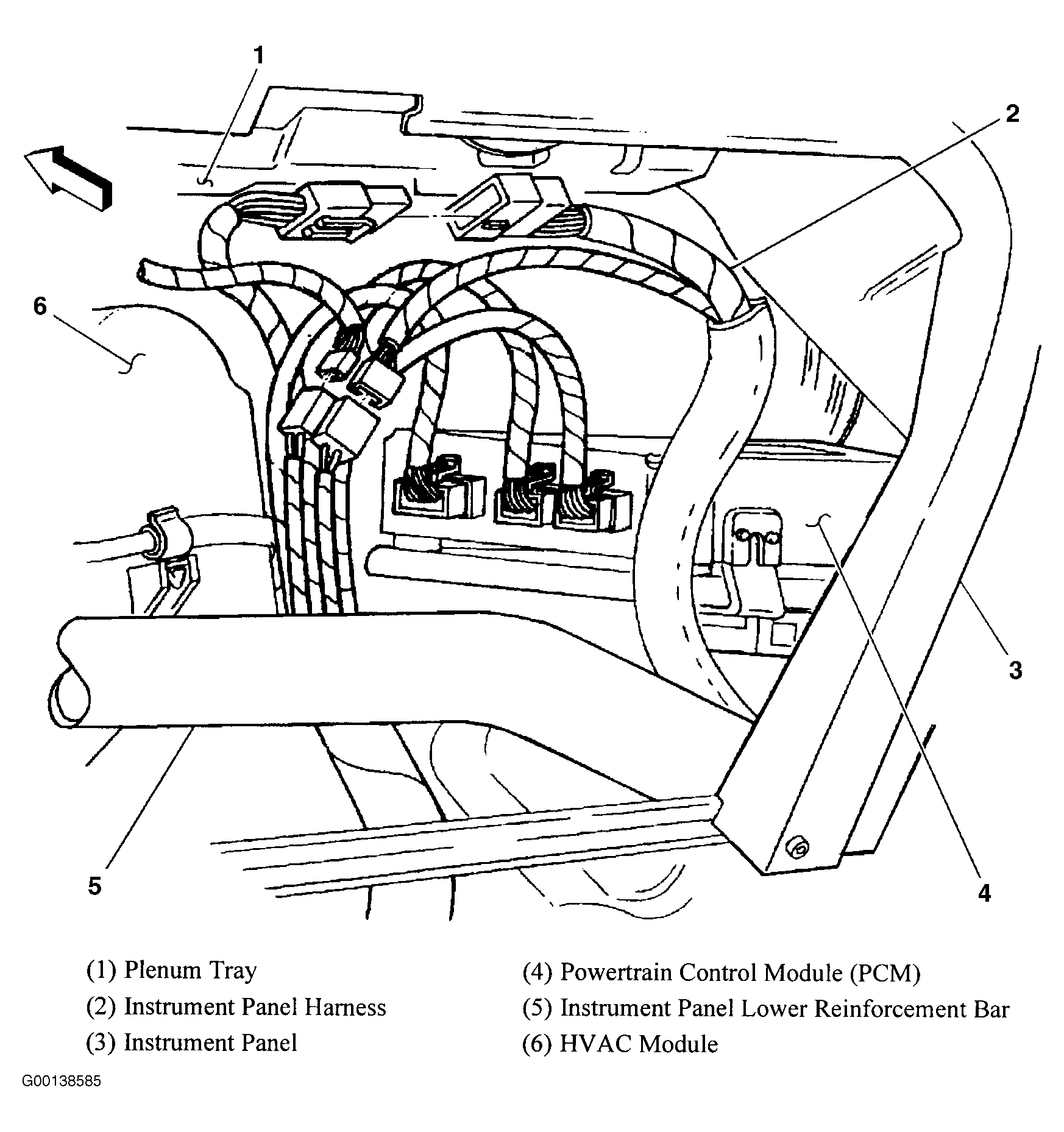

| Powertrain Control Module (PCM) | Under Passenger Side Of Instrument Panel (Fig 6) |

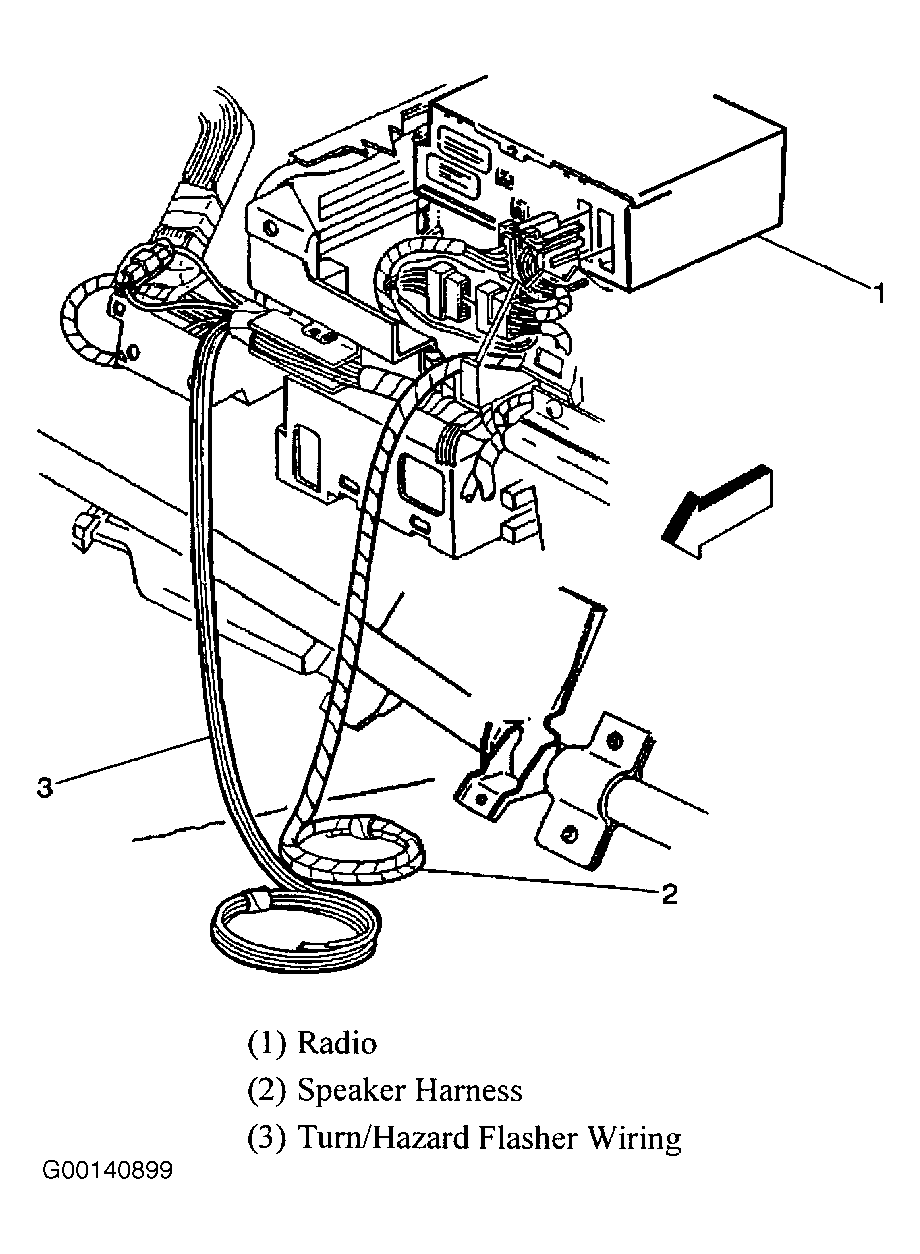

| Radio | Center Of Instrument Panel (Fig 7) |

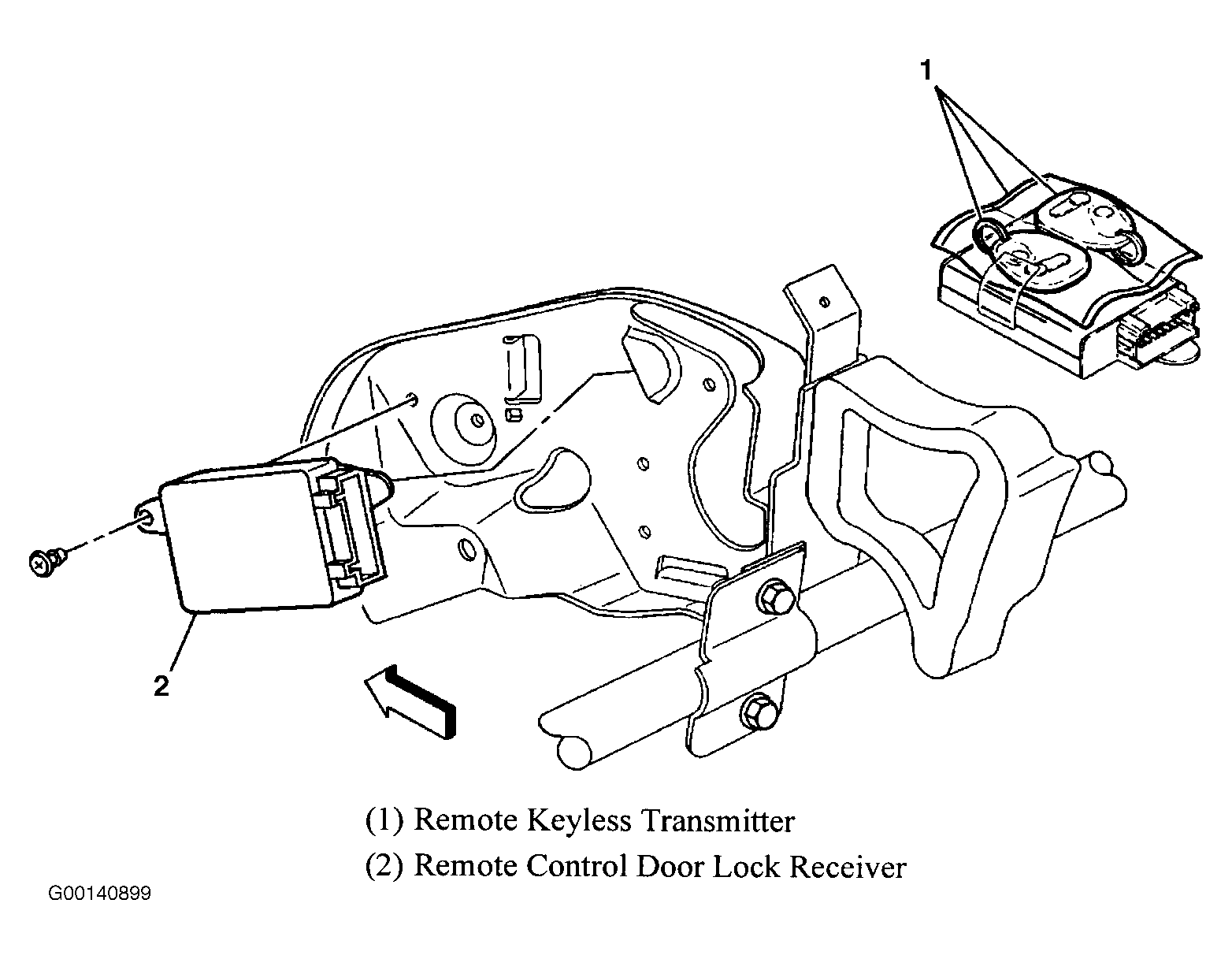

| Remote Control Door Lock Receiver (RCDLR) | Under Center Of Instrument Panel, Right Of Knee Bolster (Fig 8) |
| NP1 Transfer Case Control Module (TCCM) | On Steering Column Support Bracket (Fig 9) |

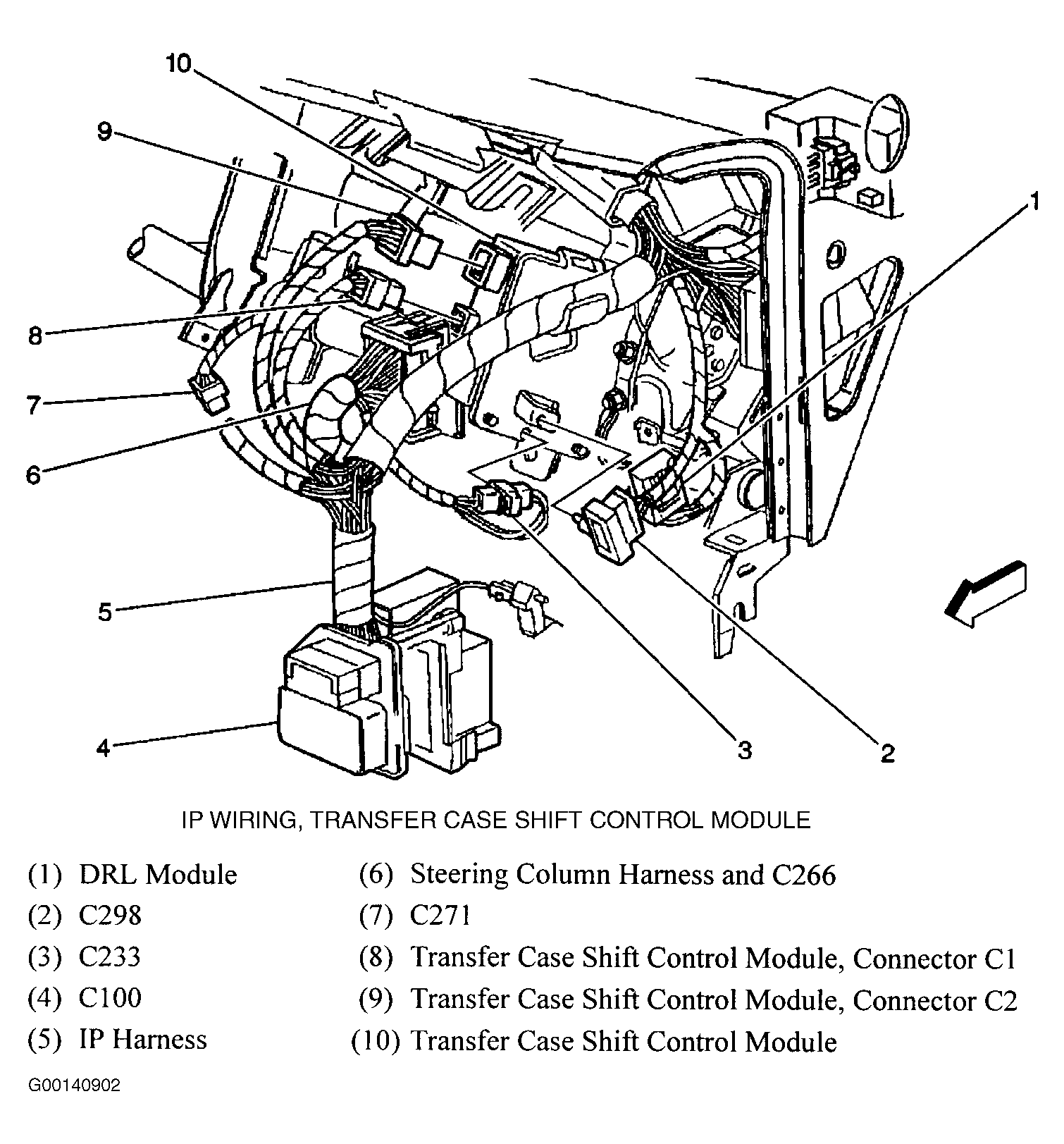

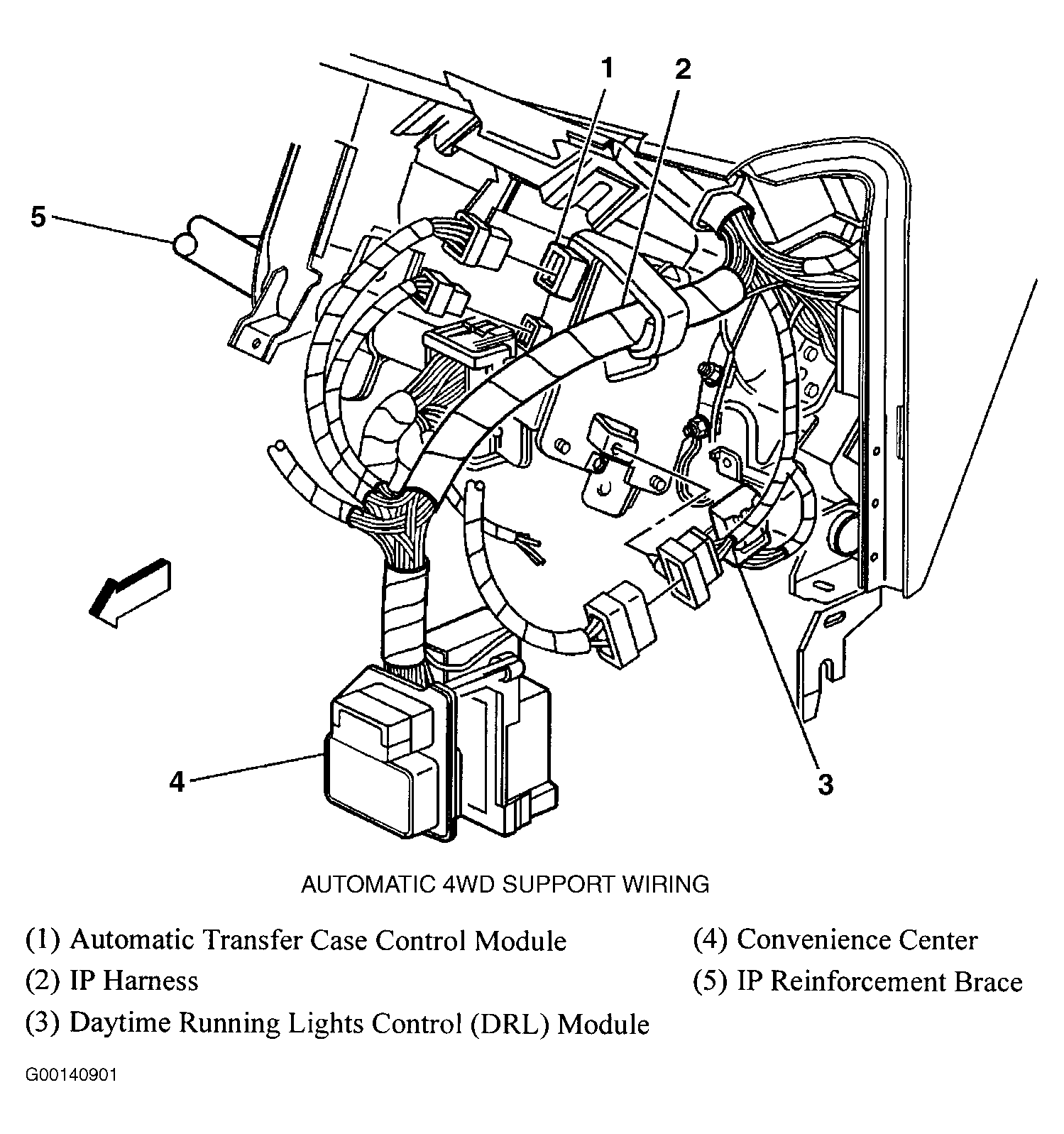

| NP8 Transfer Case Shift Control Module | Under Driver Side Of Instrument Panel Near Convenience Center (Fig 10) |
| Vehicle Control Module (VCM) | Engine Compartment, Near ECBM (Fig 2) |

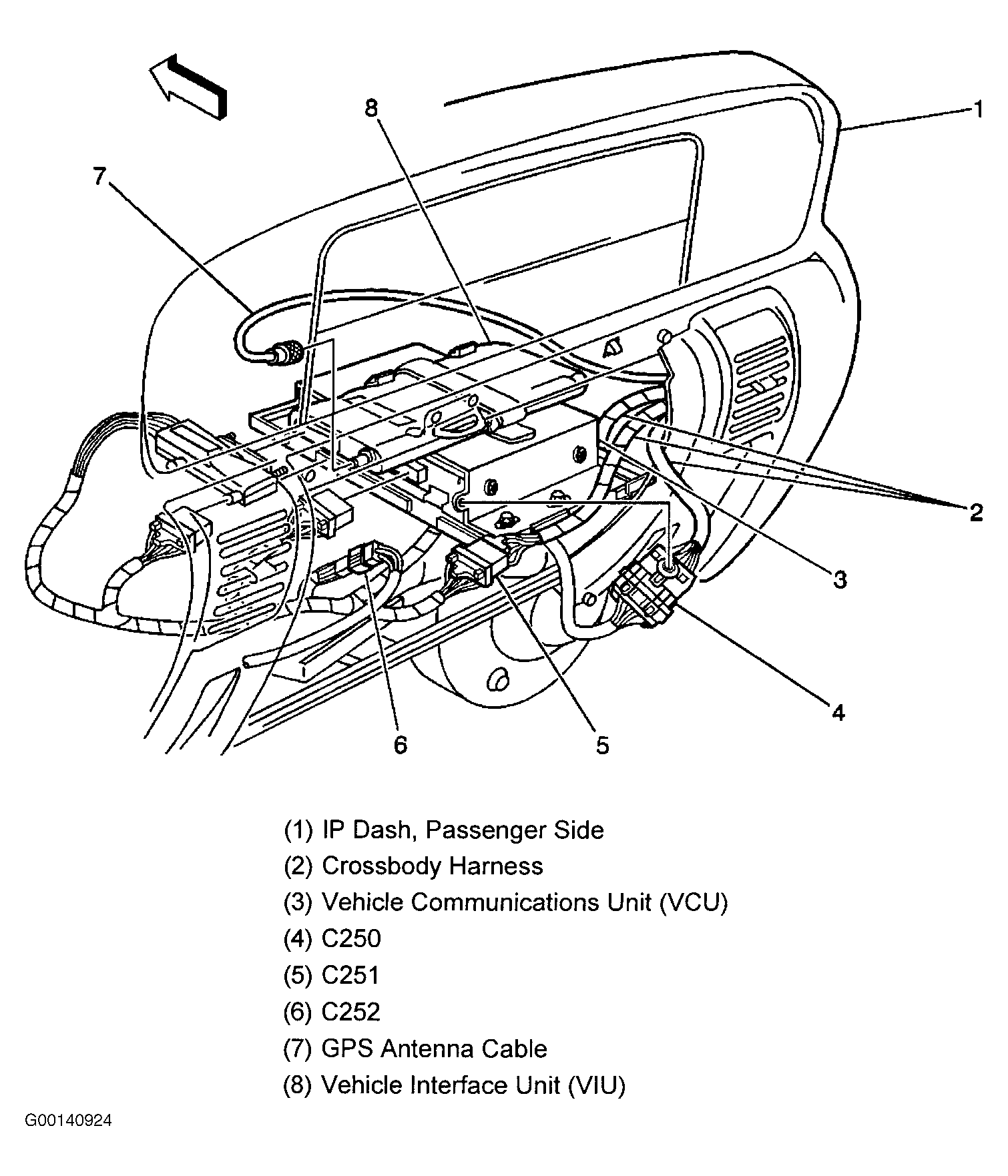

| Vehicle Interface Unit (VIU) | Passenger Side Of Instrument Panel (Fig 11) |
| C100 | Driver Rear Of Engine Compartment At Bulkhead (Fig 5) |

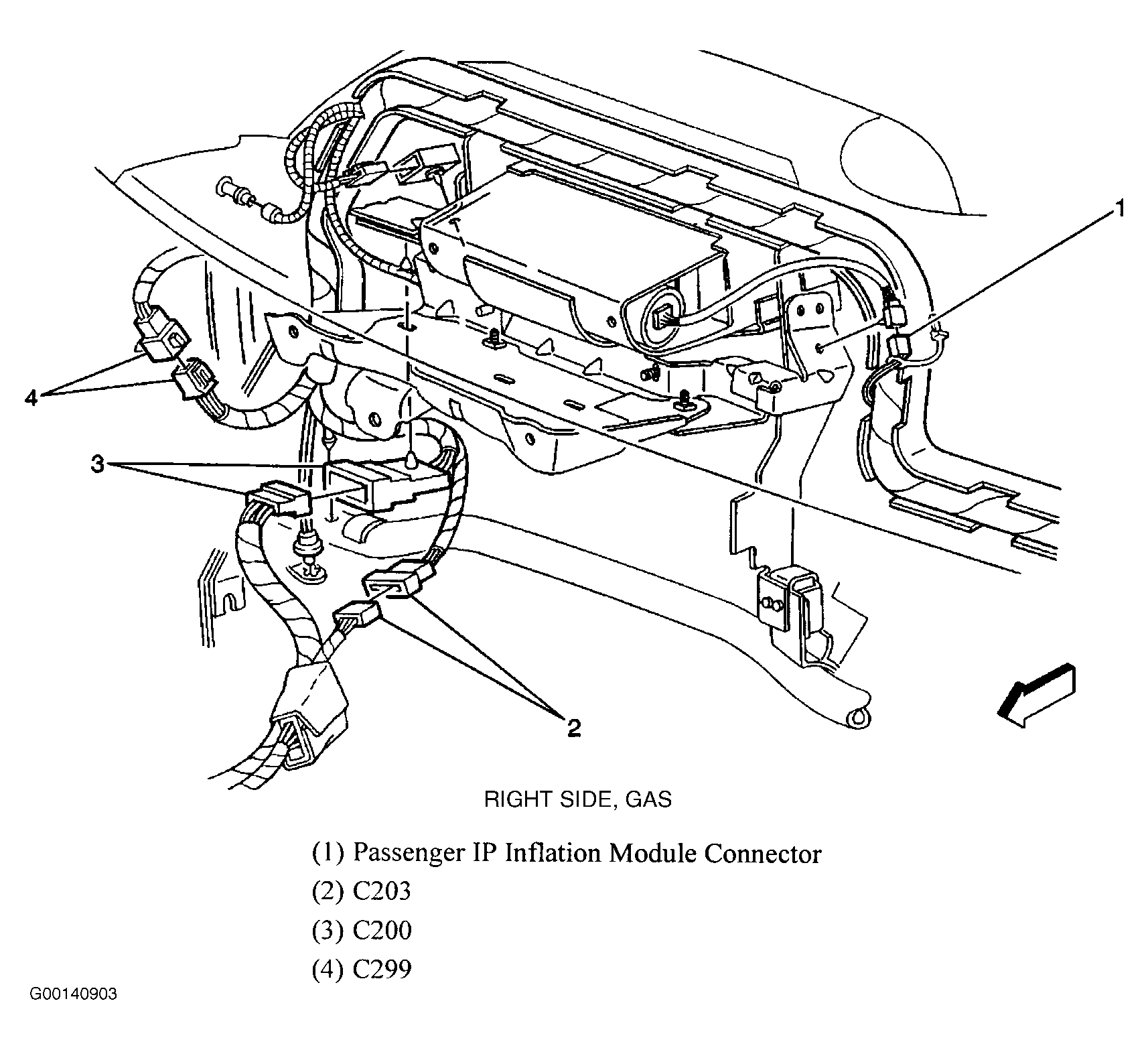

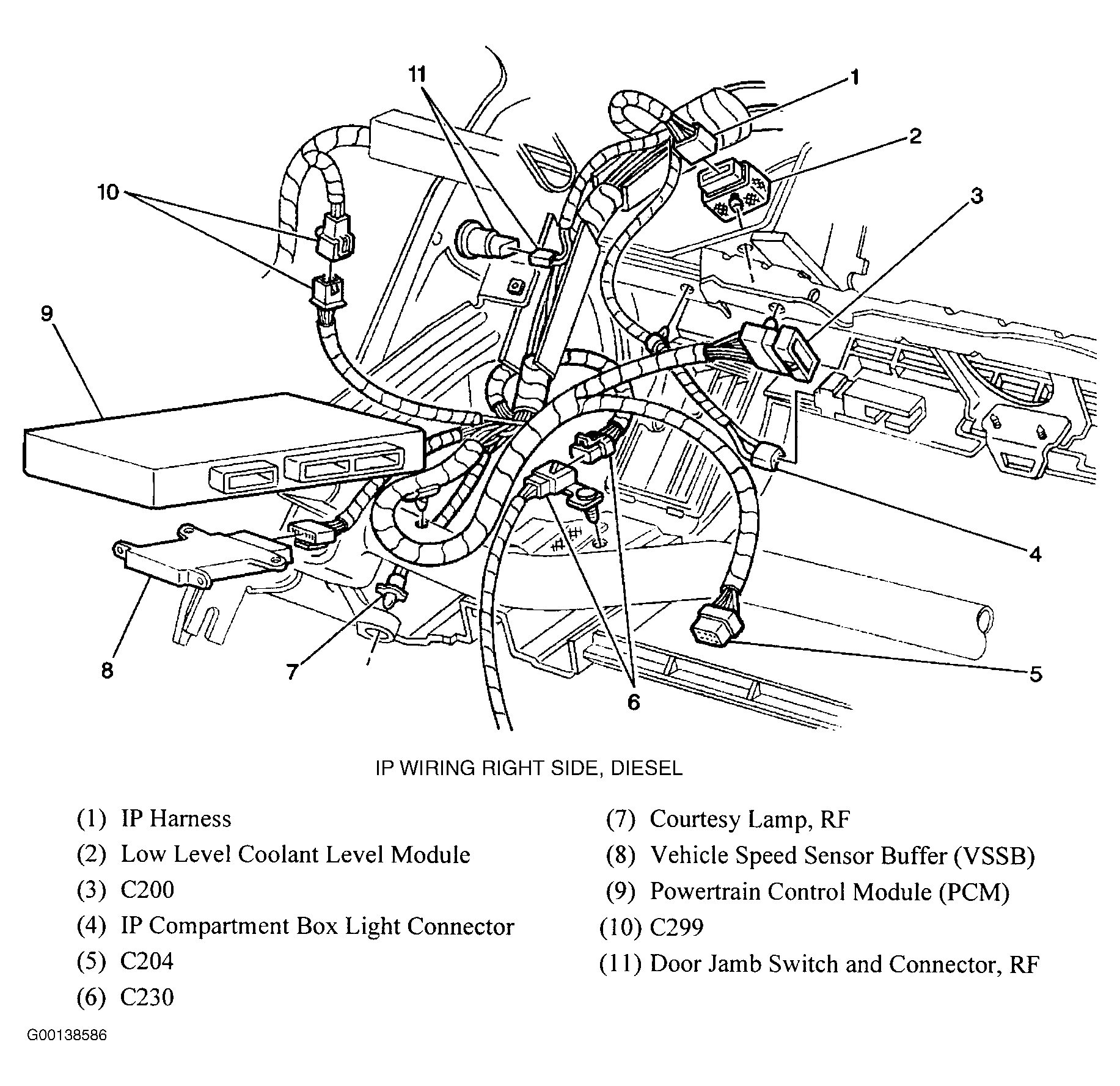

| C200 | Behind Passenger Side Of Instrument Panel, In Foam Wrap (Fig 12 or Fig 13 ) |
| C231 | Instrument Panel Harness To Inflatable Restraint Harness (Fig 14) |
| C239 (Luxury Models) | Instrument Panel Harness Inline To Crossbody Harness, Next To C230 |

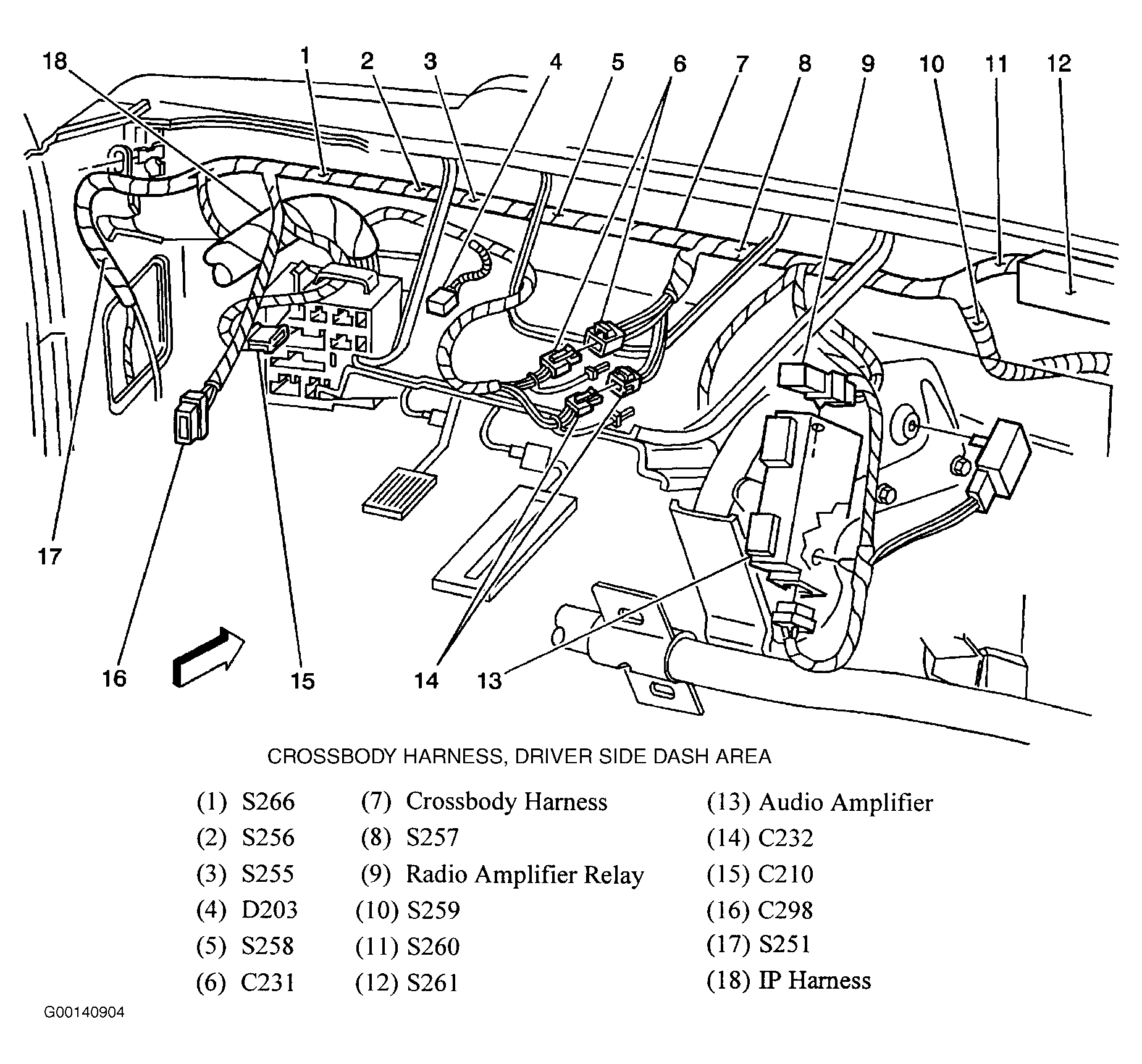

| C298 | Behind Driver Side Of Instrument Panel, Near Convenience Center (Fig 10 and Fig 14 ) |
| G103 (Gasoline) | Top Front Center Of Engine, Near Thermostat Housing (Fig 15) |

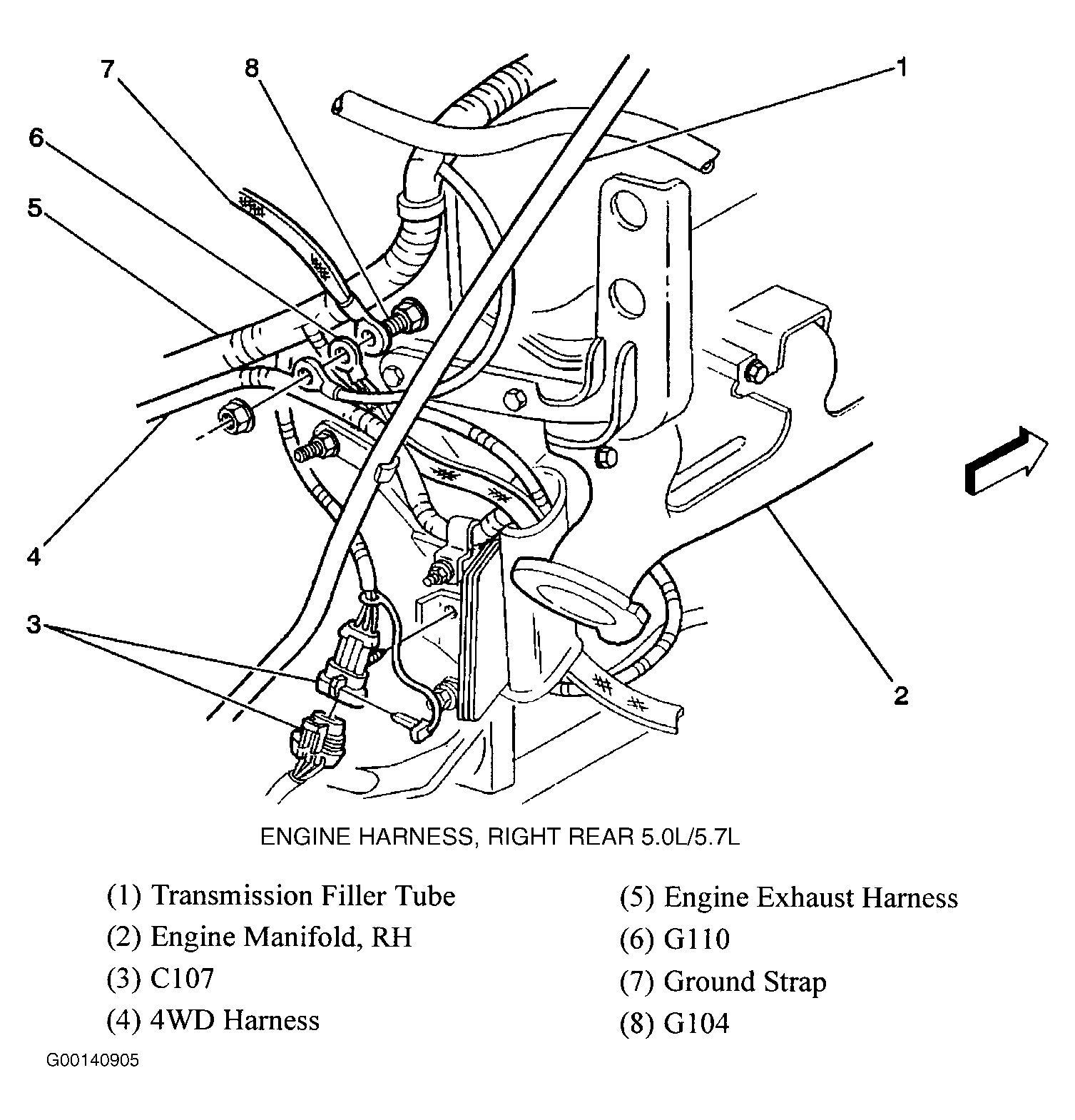

| G104 (5.0/5.7L Engine) | Rear Side Of Passenger Cylinder Head (Fig 16) |

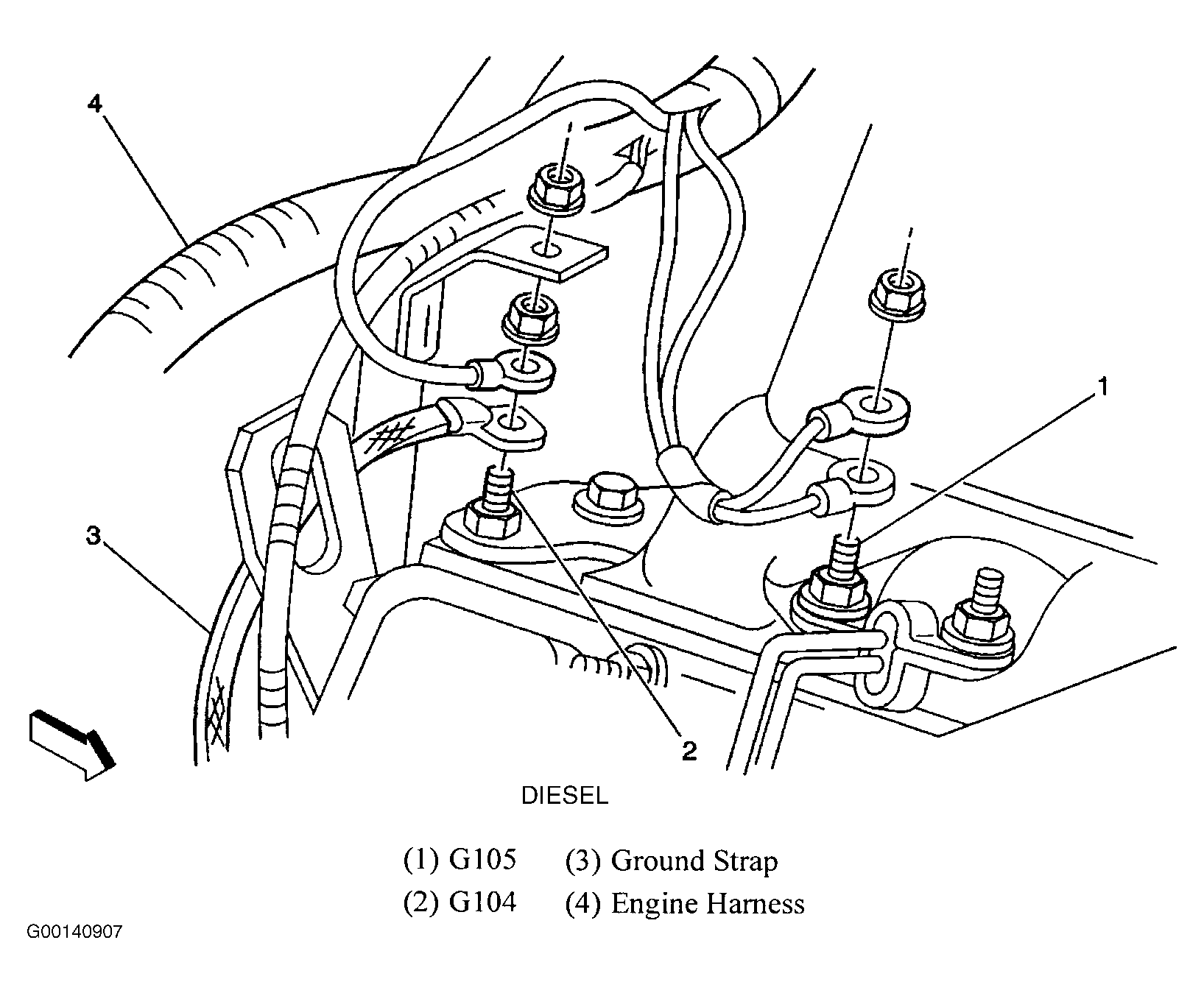

| G104 (6.5L Engine) | Top Rear Side Of Passenger Cylinder Head (Fig 17) |

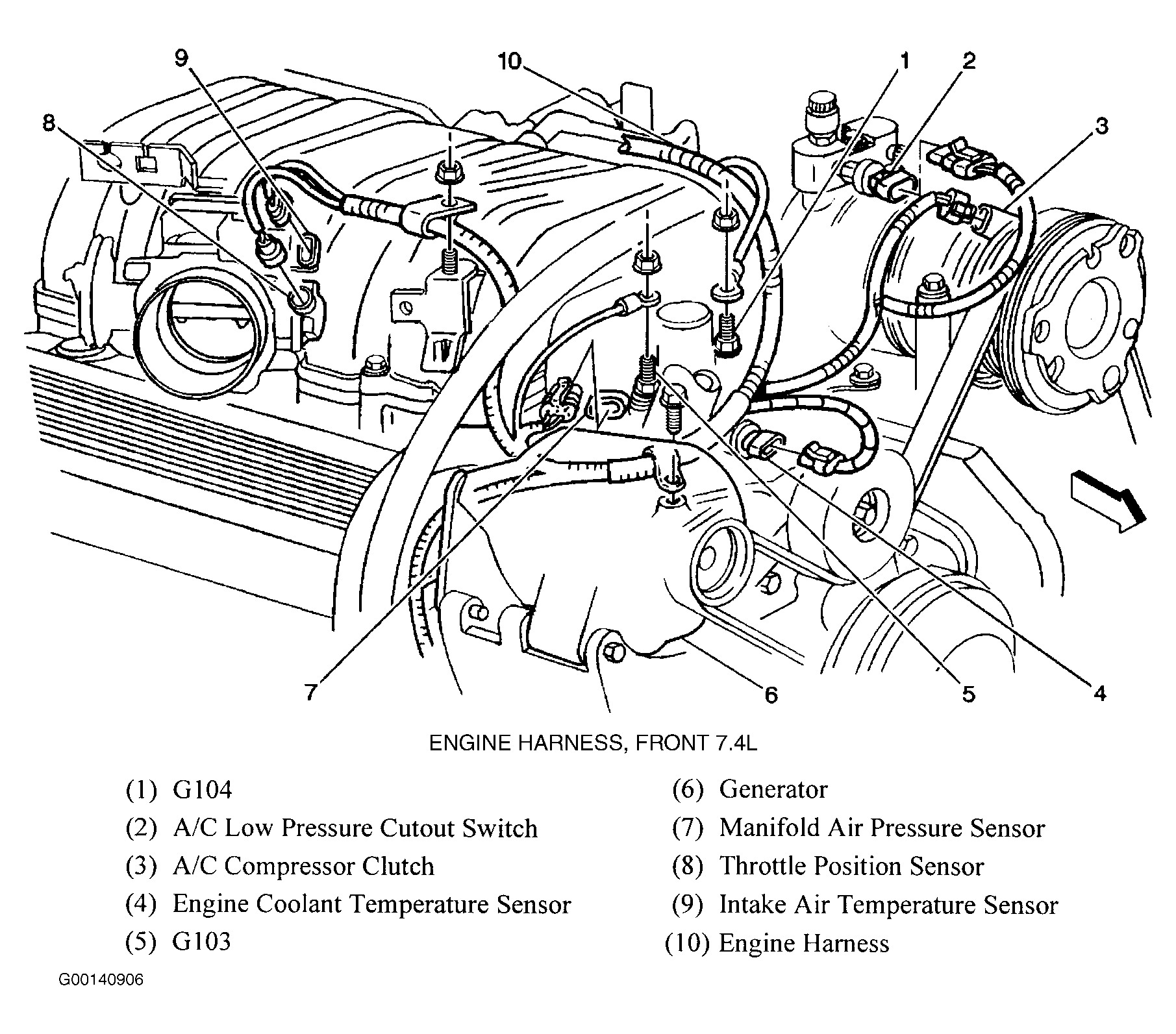

| G104 (7.4L Engine) | Rear Side Of Engine Block, Below Passenger Cylinder Head (Fig 15) |

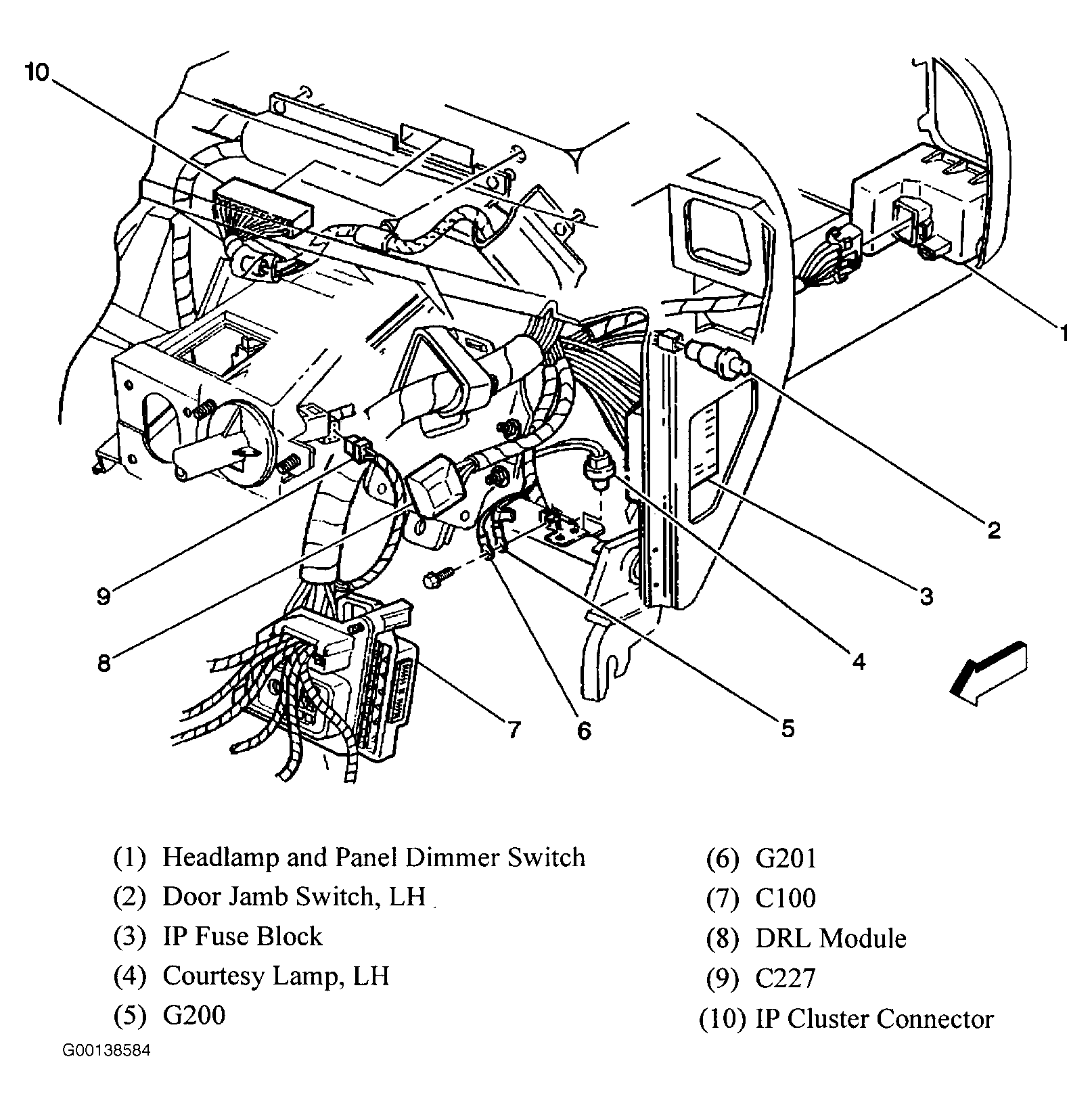

| G200 | Behind Driver Side Of Instrument Panel, On Tie Bar Below Fuse Block (Fig 5) |
| S150 | Engine Harness, Near EBCM Breakout |
| S204 | Instrument Panel Harness, Near C100 Towards DLC |
| S215 | Instrument Panel Harness, Near Instrument Cluster Breakout Towards Radio Connectors |
| S272 | Instrument Panel Harness, Near Auxiliary Power Outlet Breakout |
| S280 | Instrument Panel Harness, Near DLC Breakout |
