Service Hints
WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

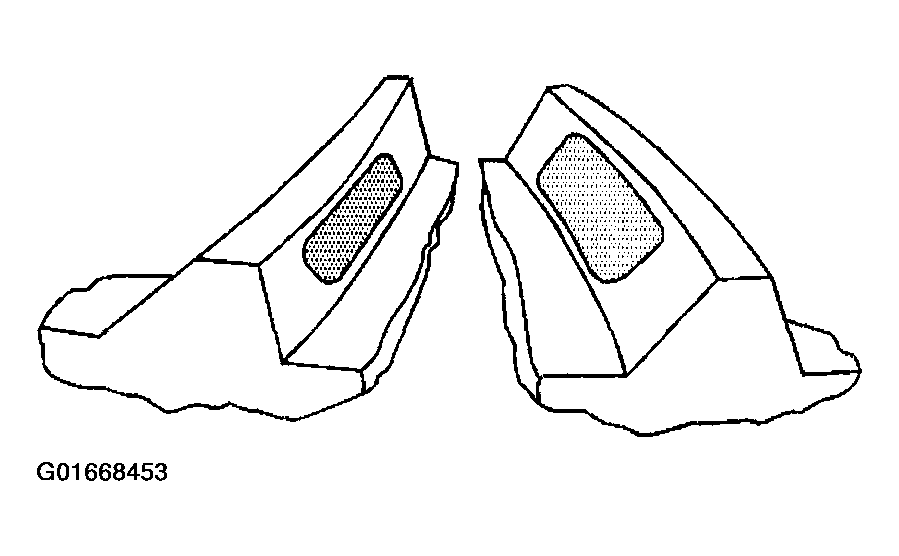

Loose bearings on the drive pinion or in the differential case may cause patterns that vary. If the contact pattern varies, inspect the following preload settings:
- Total assembly
- Differential case
- Pinion
If these settings are correct, inspect for damage or incorrectly assembled parts.
