Compressor Sealing Washers Replacement
WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Keep dirt and foreign material from the sealing surfaces of the washers, the hose block, and the compressor ports.
Clean all of the sealing surfaces with a lint-free rag.
- Do not reuse sealing washers.
- The sealing washers do not need oiling prior to assembly.

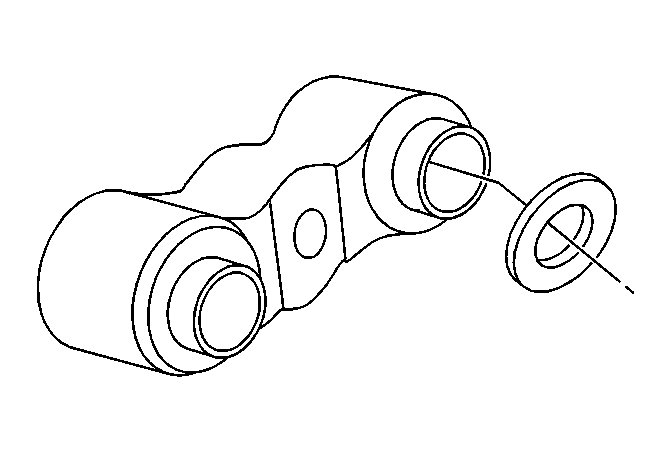

- Ensure that the sealing washers are seated within the compressor machined surfaces.
- The washers must bottom against the surface of the block fitting.
