Installation Procedure
WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Fill the compressor with oil. Refer to Compressor Oil Level Check .

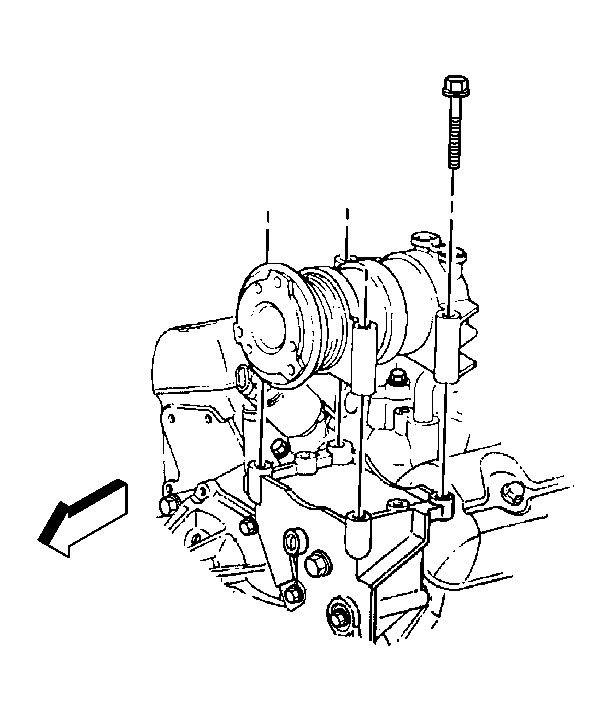

- Install the compressor into the bracket.
- Install the compressor bolts.
Tighten: Tighten the nuts to 50 N.m (37 lb ft).
- Install the A/C compressor hose assembly. Refer to Compressor Hose Assembly Replacement (4.3L) or Compressor Hose Assembly Replacement (4.8L, 5.3L, 6.0L) .
- Connect the electrical connections.
- Install the drive belt.
- Recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
- Inspect the system for leaks. Refer to Leak Testing .
