Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to Battery Replacement  .
  2. Remove the battery tray bolts from the following:
    • Fender inner panel
    • Battery tray reinforcement
    • Battery tray support

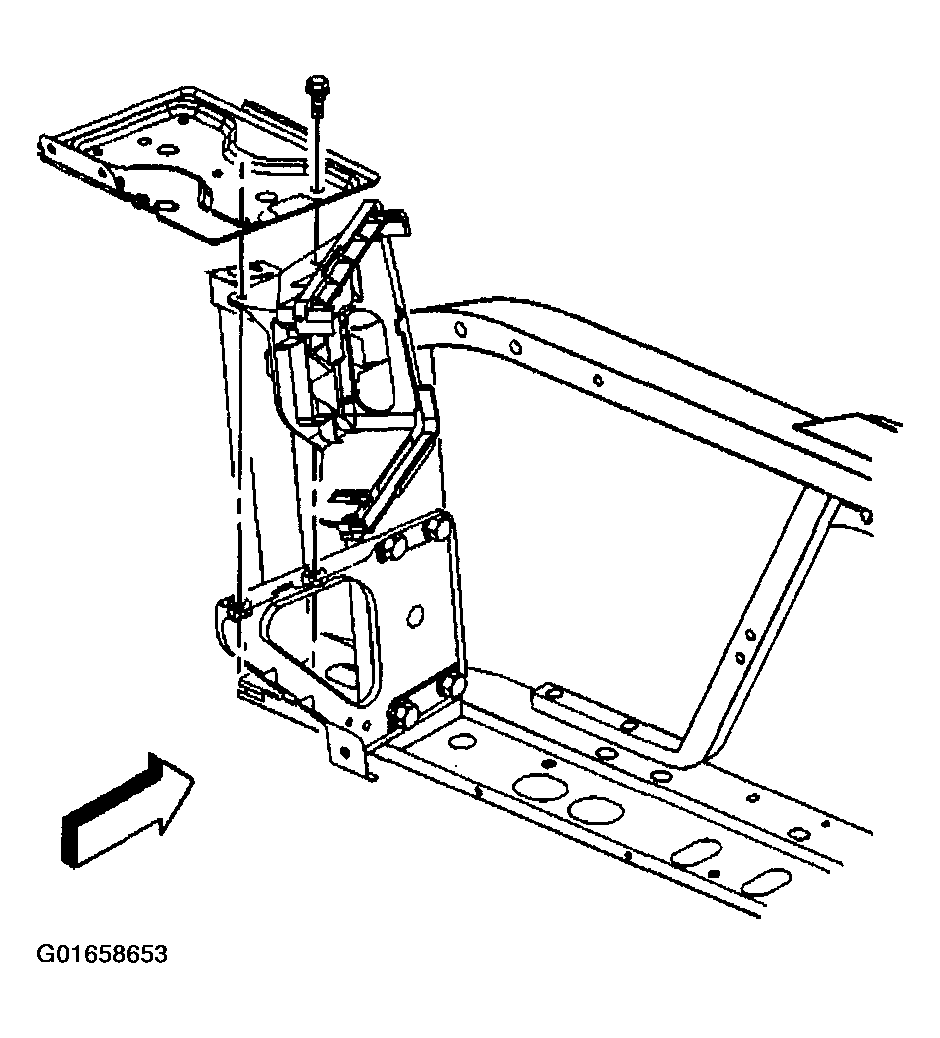

    Fig 1: Battery Tray Replacement
    G01658653Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery tray.
