Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the auxiliary battery relay.
NOTE: Refer to Fastener Notices in CAUTIONS & NOTICES .

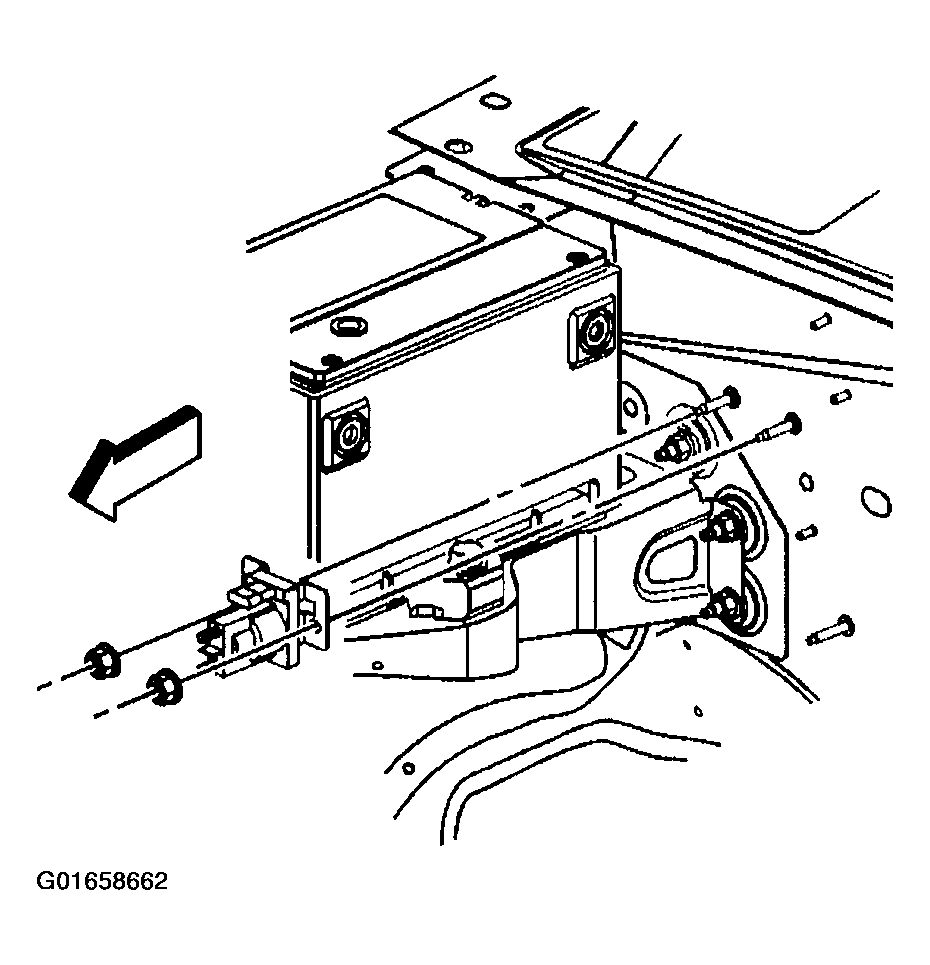

Fig 1: Installing Auxiliary Battery Relay Nuts

G01658662

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary battery relay nuts.
Tighten

Tighten the auxiliary battery relay nuts to 9 N.m (80 lb in).

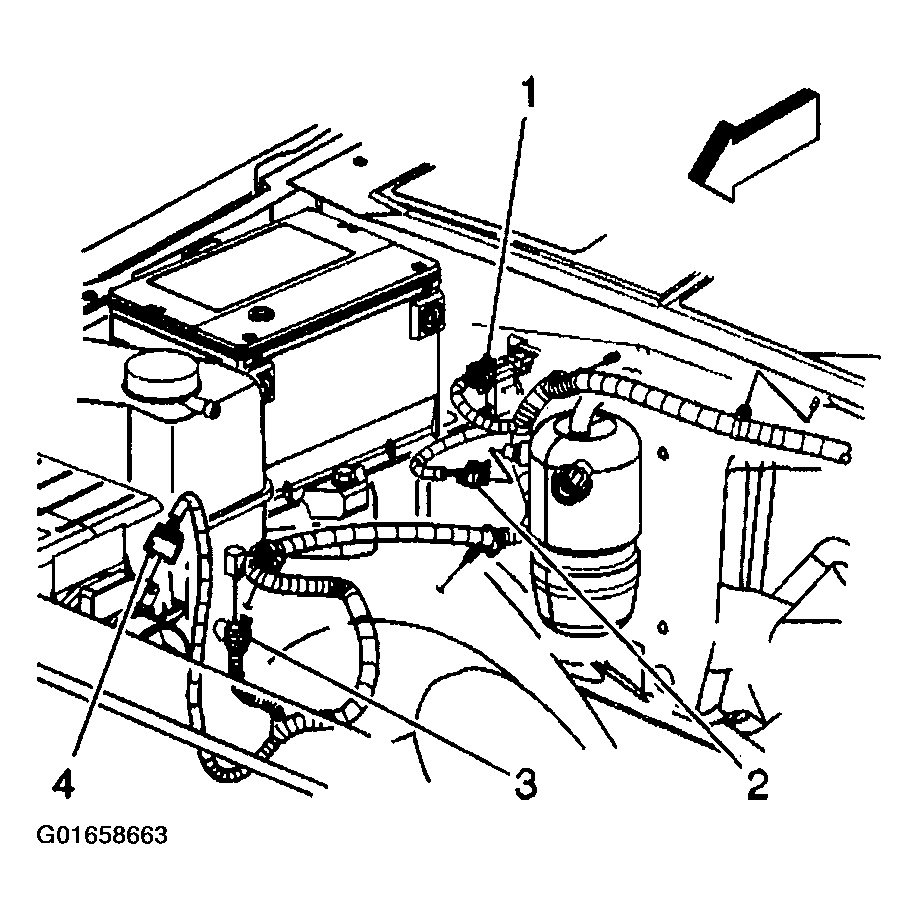

Fig 2: Connecting Auxiliary Battery Relay Electrical Connector

G01658663

Courtesy of GENERAL MOTORS CORP.

Connect the auxiliary battery relay electrical connector (1).
Install the auxiliary battery positive cable to the auxiliary battery relay.

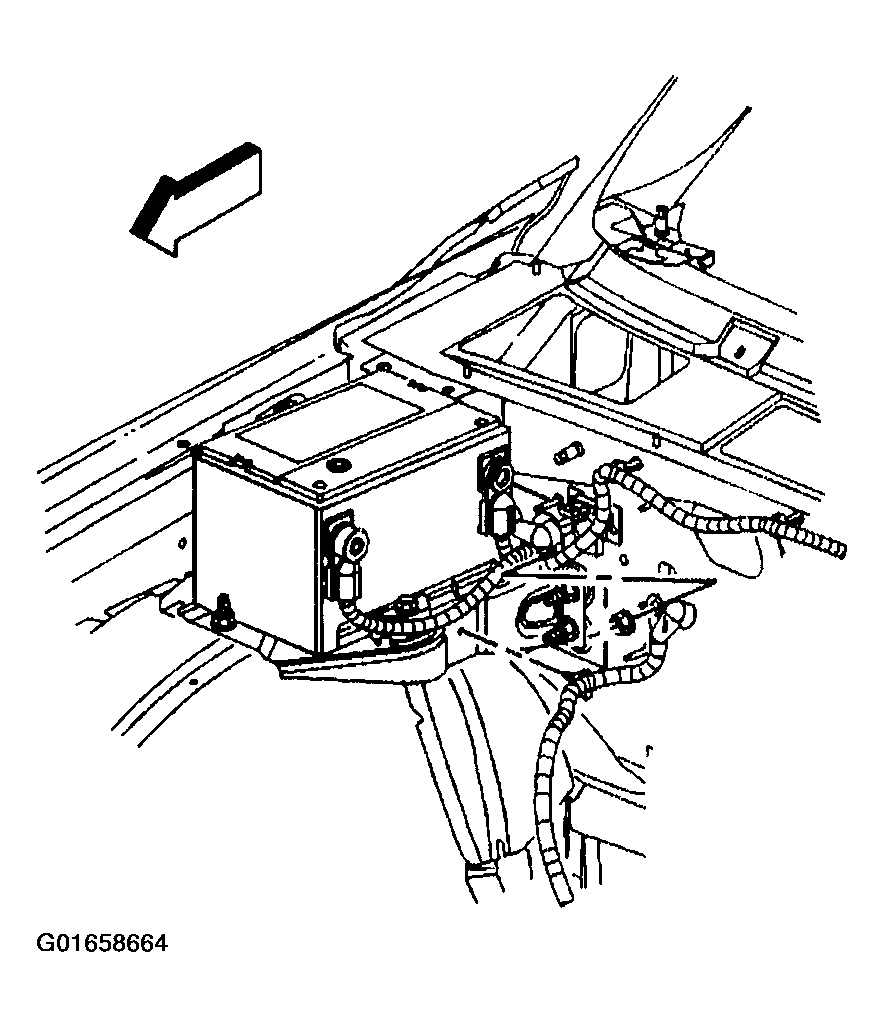

Fig 3: Installing Auxiliary Battery Positive Cable Nut

G01658664

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary battery positive cable nut.
Tighten

Tighten the auxiliary positive cable nut to 9 N.m (80 lb in).
Position the boot to cover the stud.
Install the auxiliary battery positive cable to the auxiliary battery relay.

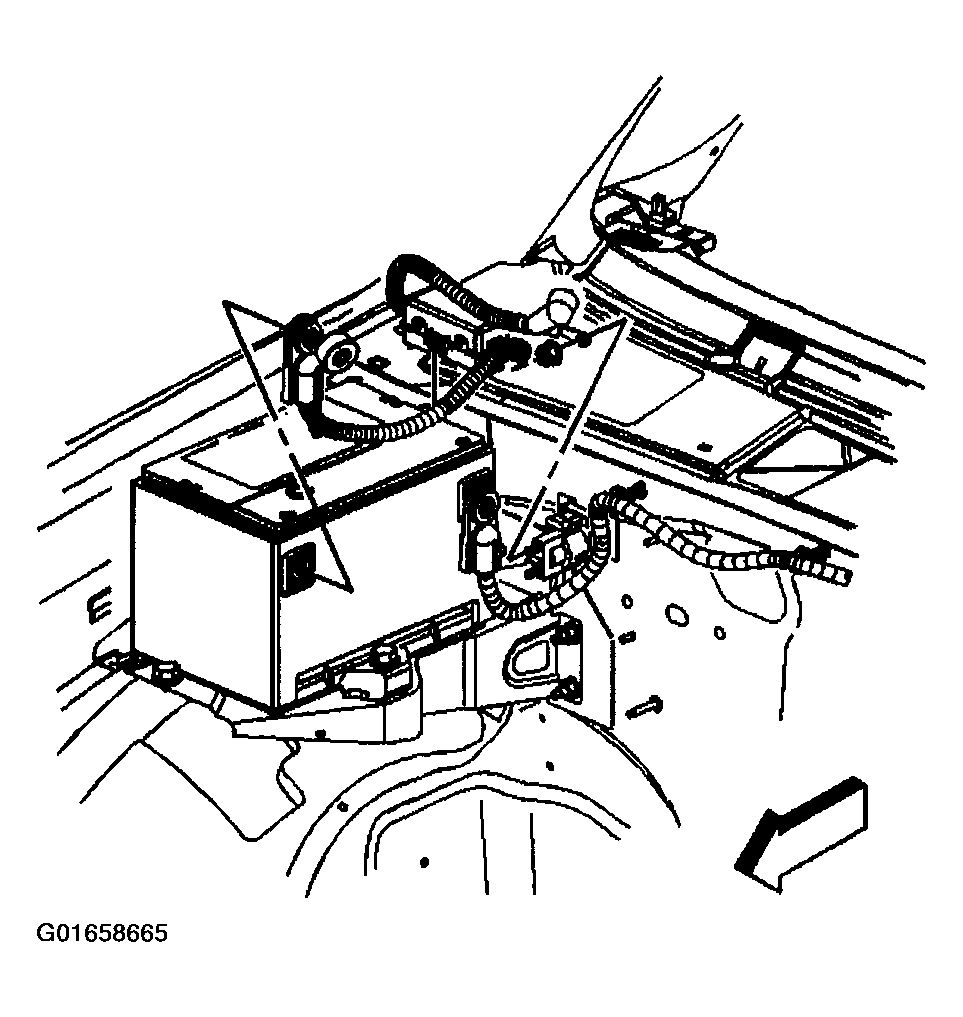

Fig 4: Installing Auxiliary Battery Positive Cable Nut

G01658665

Courtesy of GENERAL MOTORS CORP.

Install the auxiliary battery positive cable nut.
Tighten

Tighten the auxiliary positive cable nut to 9 N.m (80 lb in).
Position the boot to cover the stud.

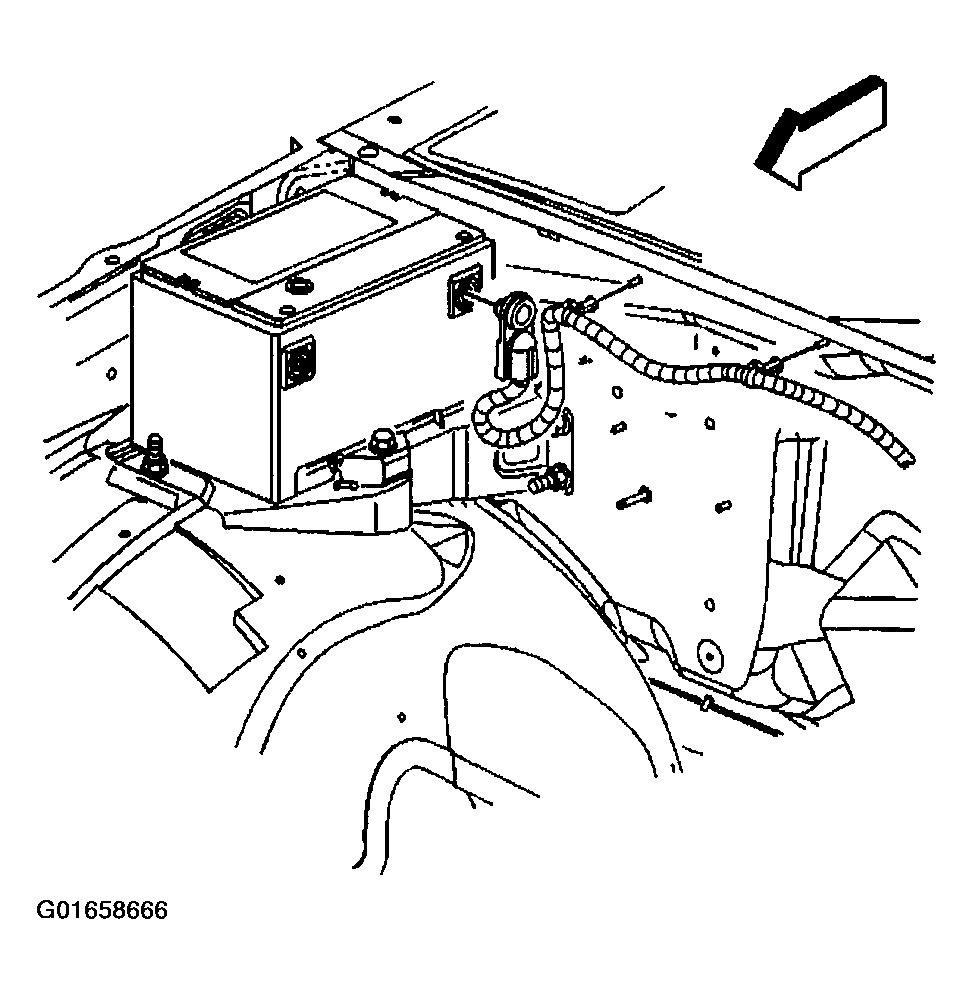

Fig 5: Connecting Auxiliary Negative Battery Cable

G01658666

Courtesy of GENERAL MOTORS CORP.

Connect the auxiliary negative battery cable.
Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
