Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery positive cable to the vehicle.
Install the battery positive cable to the starter solenoid stud.
NOTE: Refer to CAUTIONS & NOTICES .
Install the starter solenoid nut.

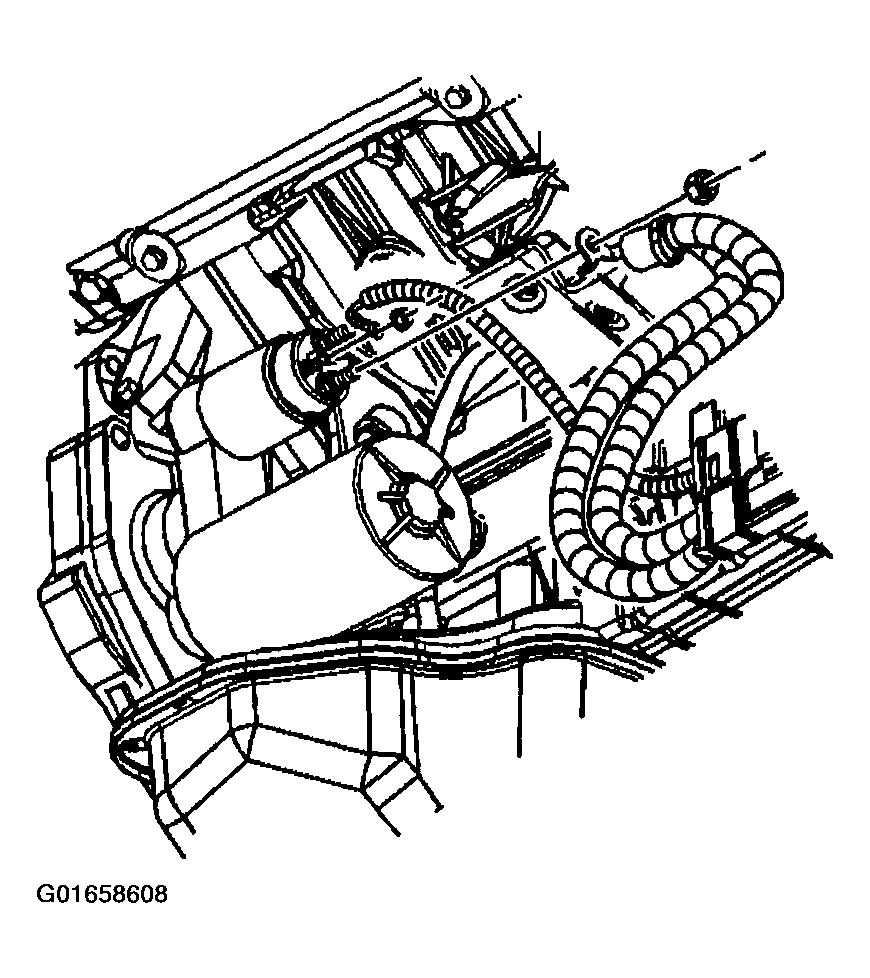

Fig 1: Installing Starter Solenoid Nut
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the starter solenoid nut to 9 N.m (80 lb in).
Install the battery positive cable in the retainer.
Install the battery positive cable bracket and nut.
Tighten

Tighten the battery cable retainer nut to 12 N.m (106 lb in).

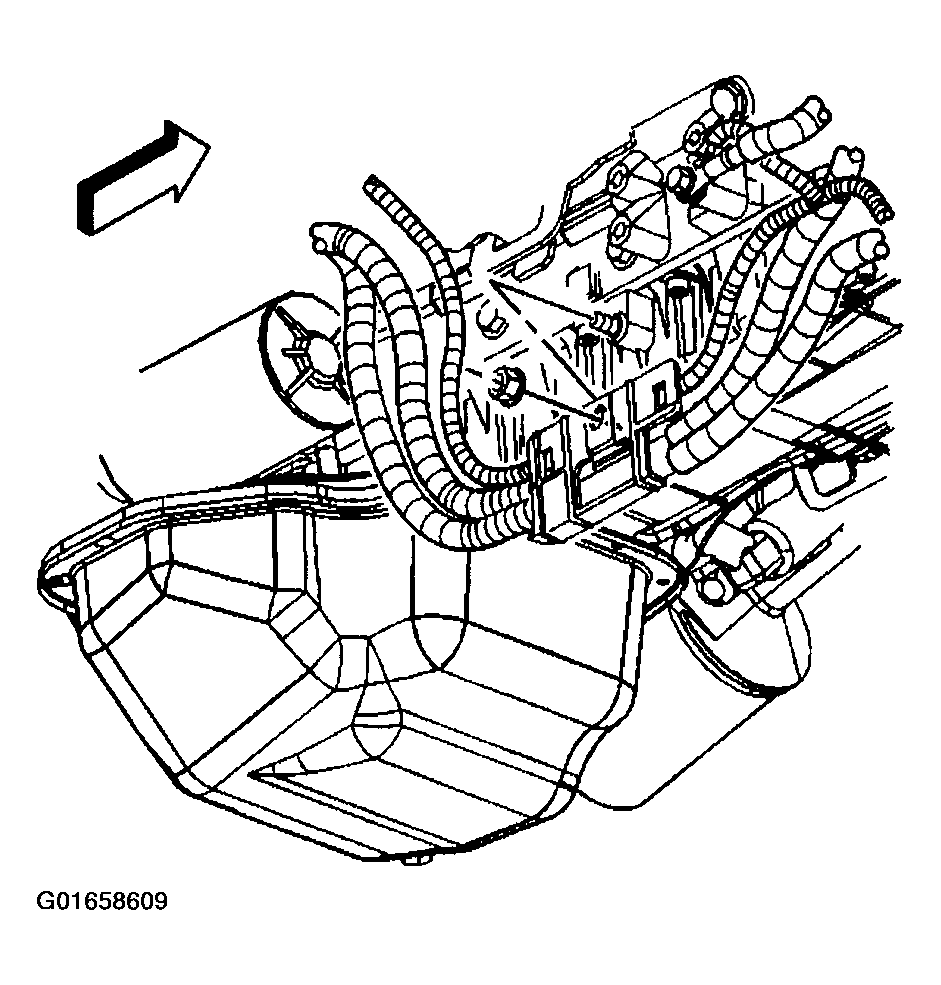

Fig 2: Installing Battery Cable Channel Bolts
Courtesy of GENERAL MOTORS CORP.
Install the battery positive cable to the channel.

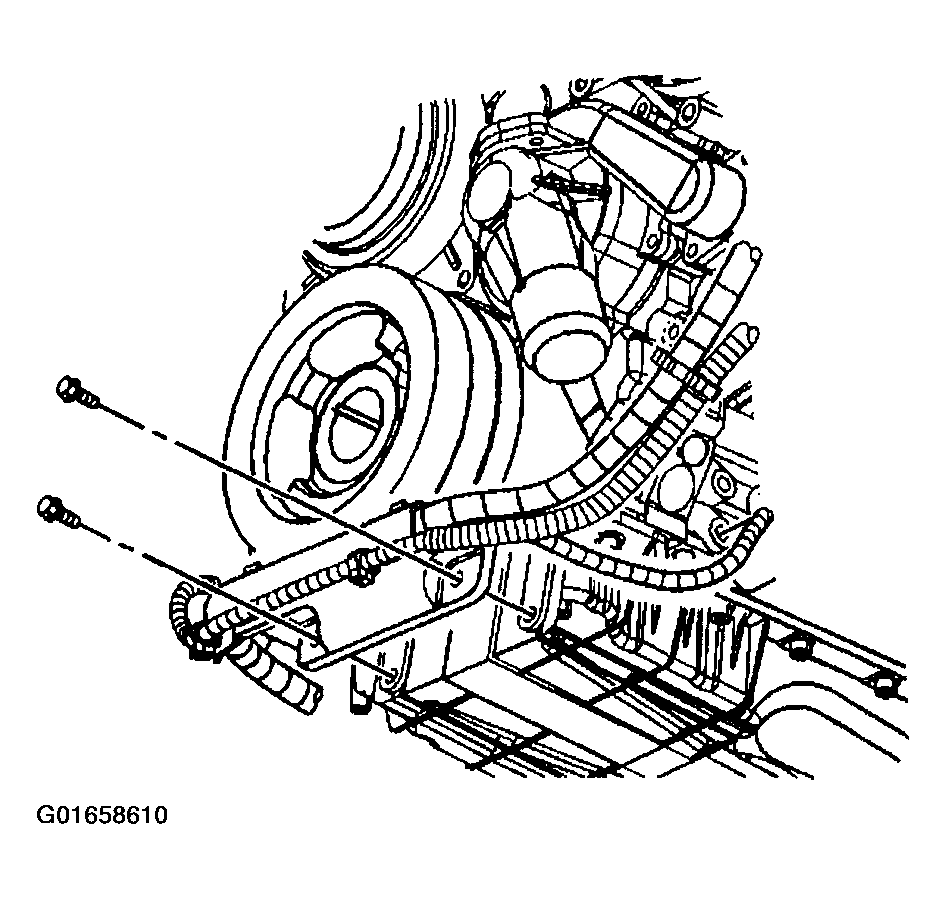

Fig 3: Installing Battery Cable Channel Bolts

Courtesy of GENERAL MOTORS CORP.

Install the battery cable channel bolts.
Tighten

Tighten the battery cable channel bolts to 8 N.m (71 lb in).
Lower the vehicle.
Install the negative cable clip to the clip on the positive cable.

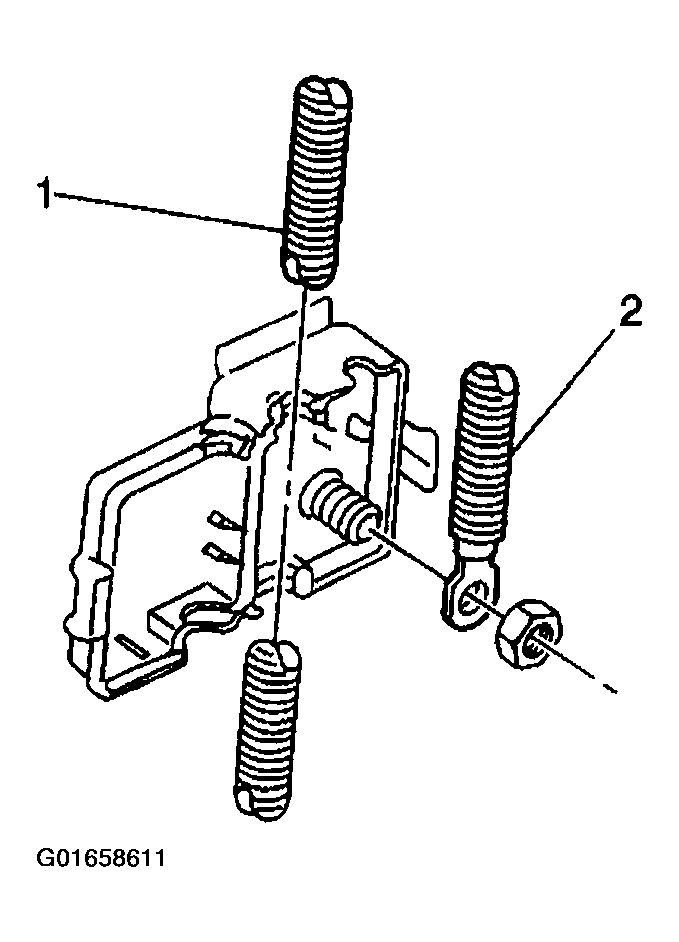

Fig 4: Installing Positive Cable Into Junction Block

Courtesy of GENERAL MOTORS CORP.

Install the positive cable (1) into the junction block.
Snap the junction block cover closed.
Tighten the positive cable bolt at the UBEC.
Tighten

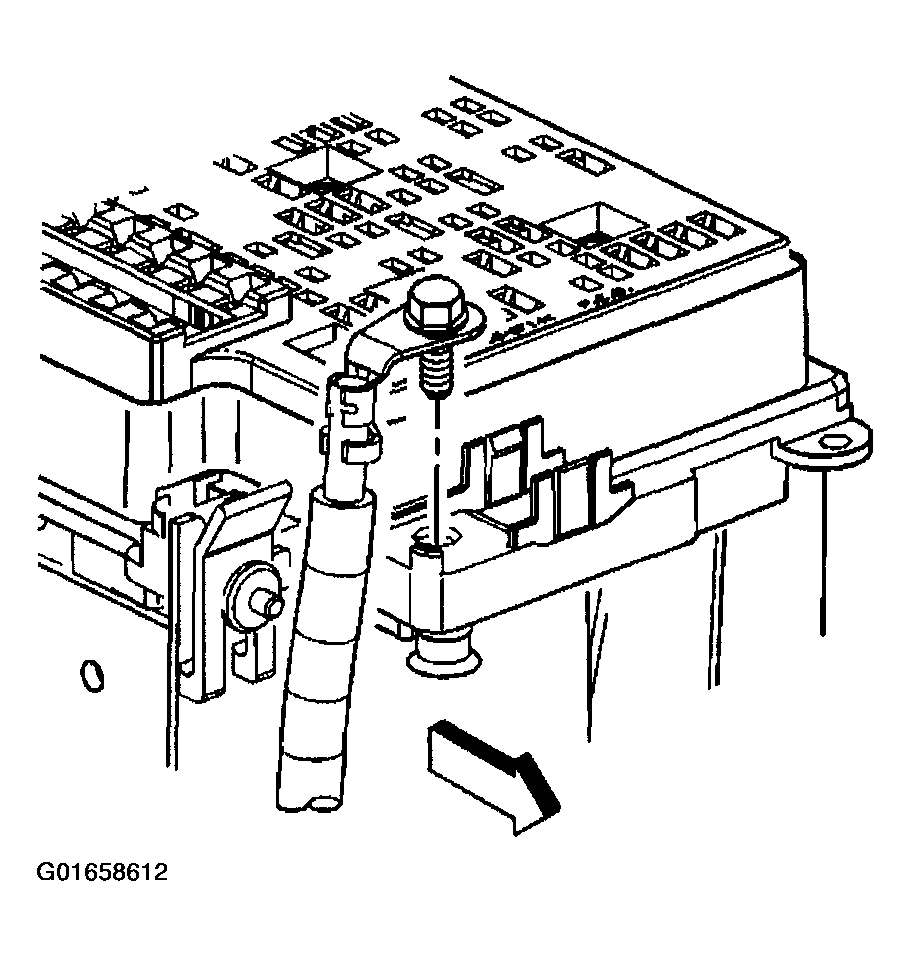

Fig 5: Tightening Positive Cable Bolt
Courtesy of GENERAL MOTORS CORP.

Tighten the positive cable bolt at the UBEC to 9 N.m (80 lb in).

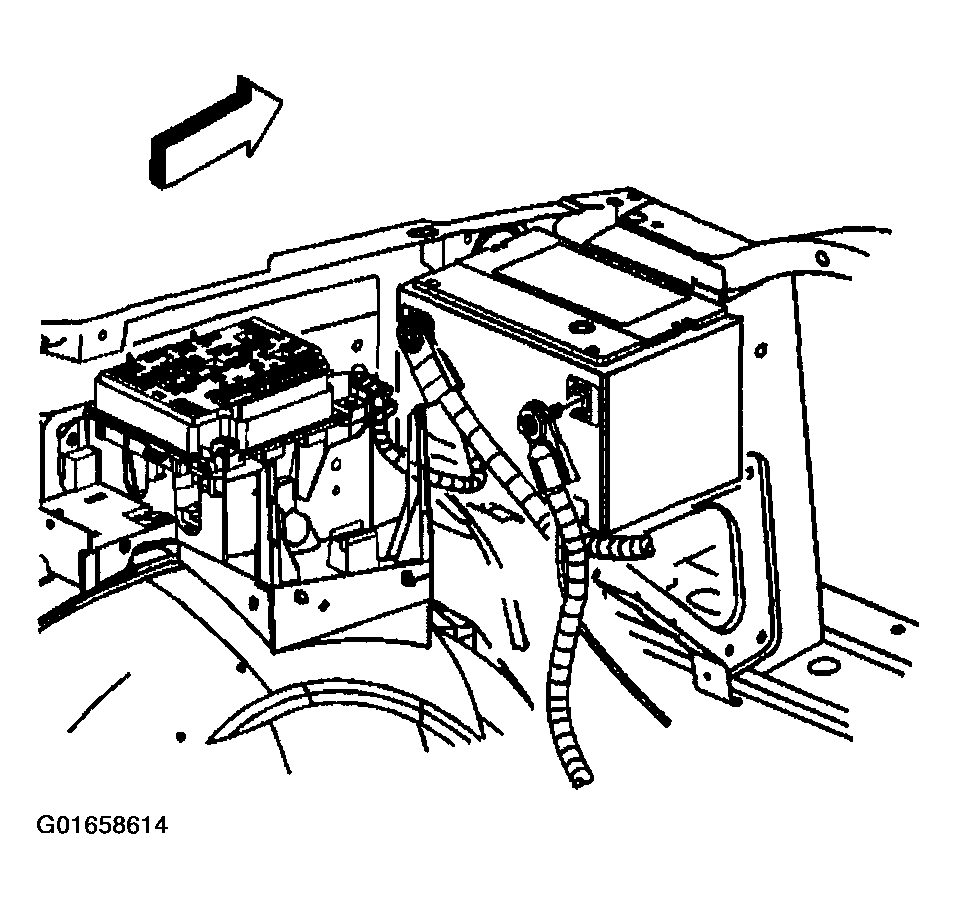

Fig 6: Connecting Positive Battery Cable

Courtesy of GENERAL MOTORS CORP.

Connect the positive battery cable.
Tighten

Tighten the positive battery cable bolt to 17 N.m (13 lb ft).

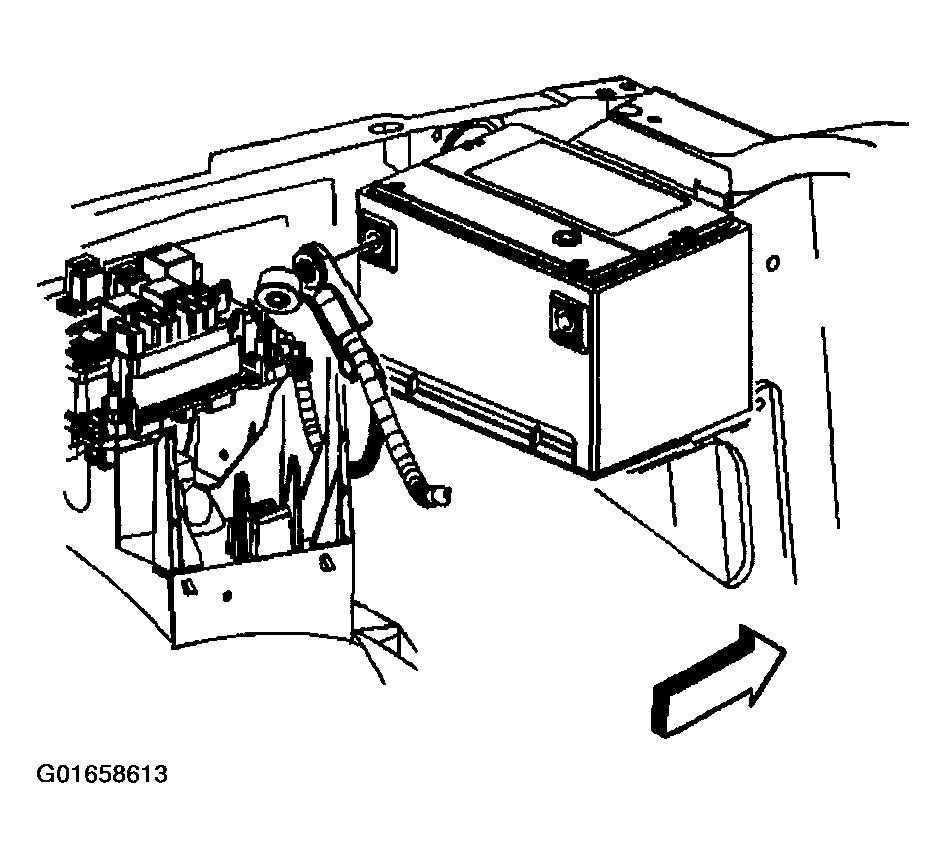

Fig 7: Connecting Negative Battery Cable

Courtesy of GENERAL MOTORS CORP.

Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
