Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the positive battery cable.
Install the positive cable to the clip (7) on the oil pan.
Install the positive cable (1) to the starter.
NOTE: Refer to Fastener Notice CAUTIONS & NOTICES .
Install the starter lead nut (9).
Tighten

Tighten the starter lead nut to 9 N.m (80 lb in).

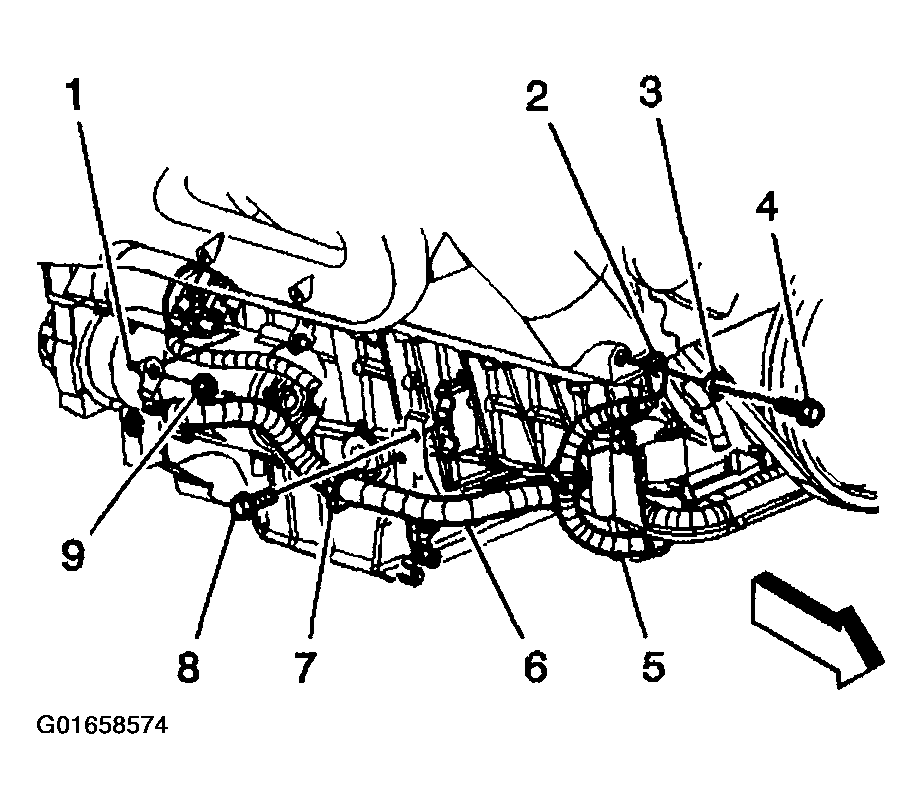

Fig 1: Installing Starter Lead Nut
Courtesy of GENERAL MOTORS CORP.

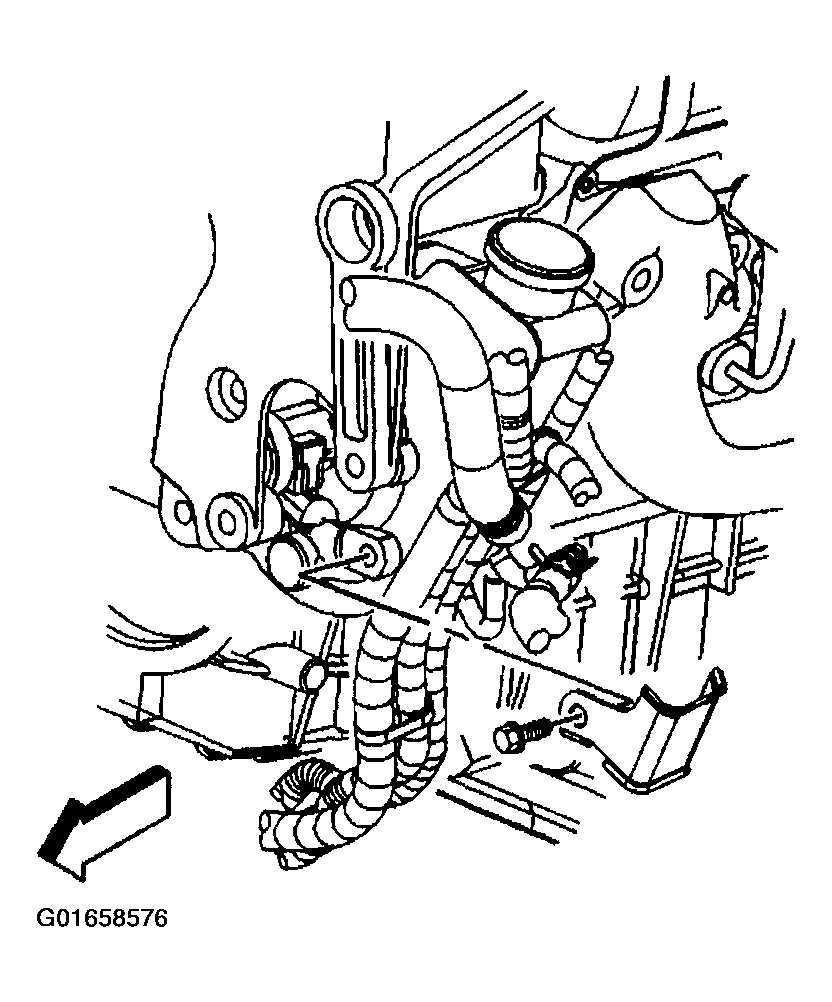

Install the positive cable to the channel.

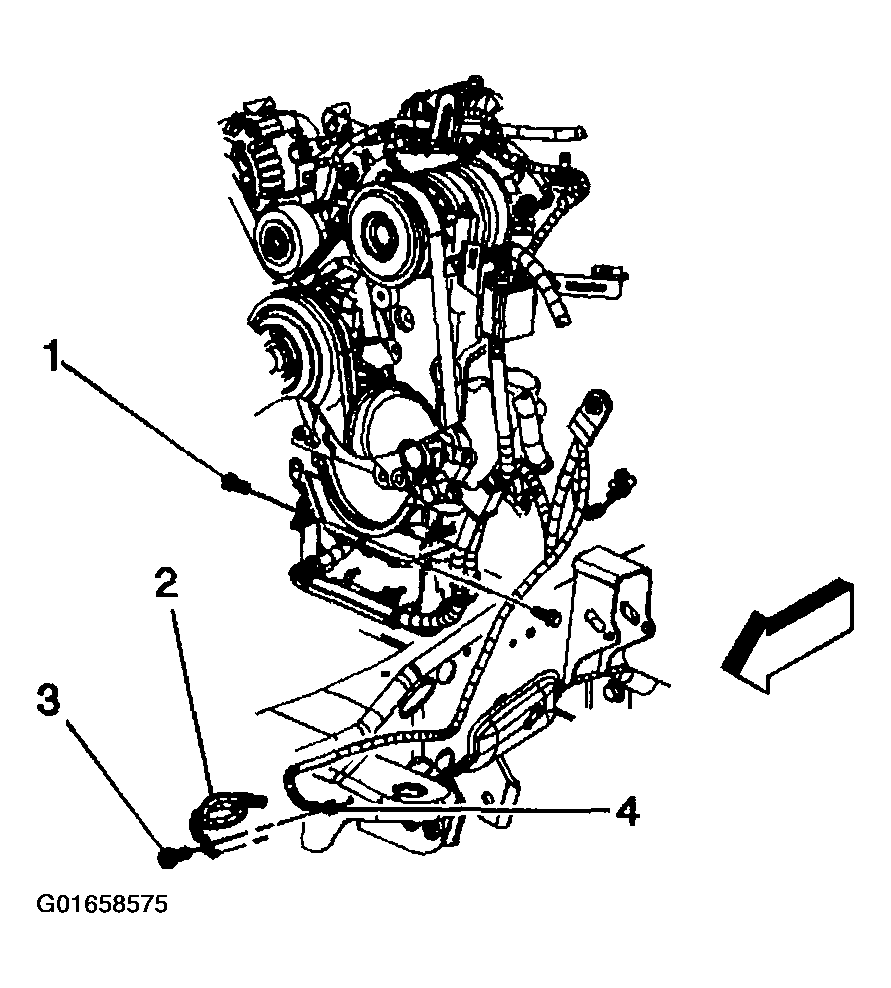

Fig 2: Installing Battery Cable Channel Bolts

Courtesy of GENERAL MOTORS CORP.

Install the battery cable channel bolts (1).
Tighten

Tighten the battery cable channel bolts to 12 N.m (106 lb in).
Install the negative cable to the battery channel.
Lower the vehicle.

Fig 3: Installing Battery Cable Bracket And Bolt To Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Install the battery cable bracket and bolt to the power steering pump.
Tighten

Tighten the battery cable bracket bolt to 25 N.m (18 lb ft).

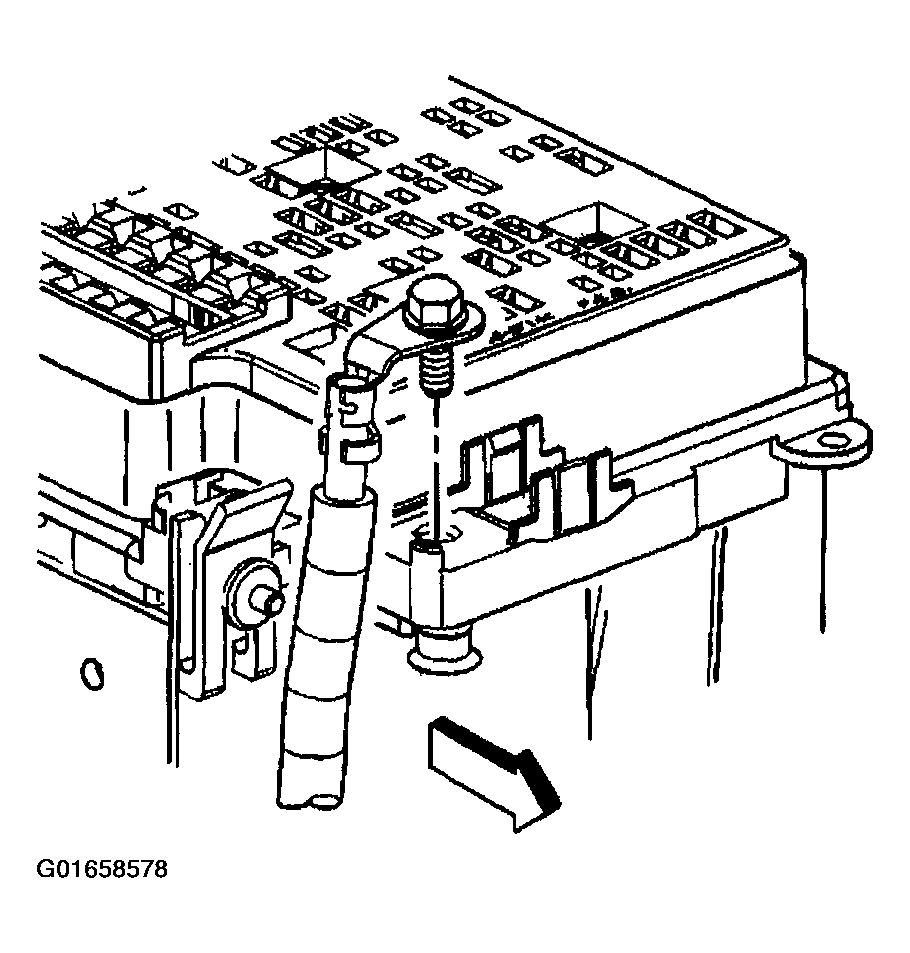

Fig 4: Installing Positive Cable To Junction Block
Courtesy of GENERAL MOTORS CORP.
Install the positive cable (1) to the junction block.
Snap the junction block cover.
Important: The bolt is integral to the battery cable and is not removable.
Tighten the positive cable bolt at the UBEC.
Tighten

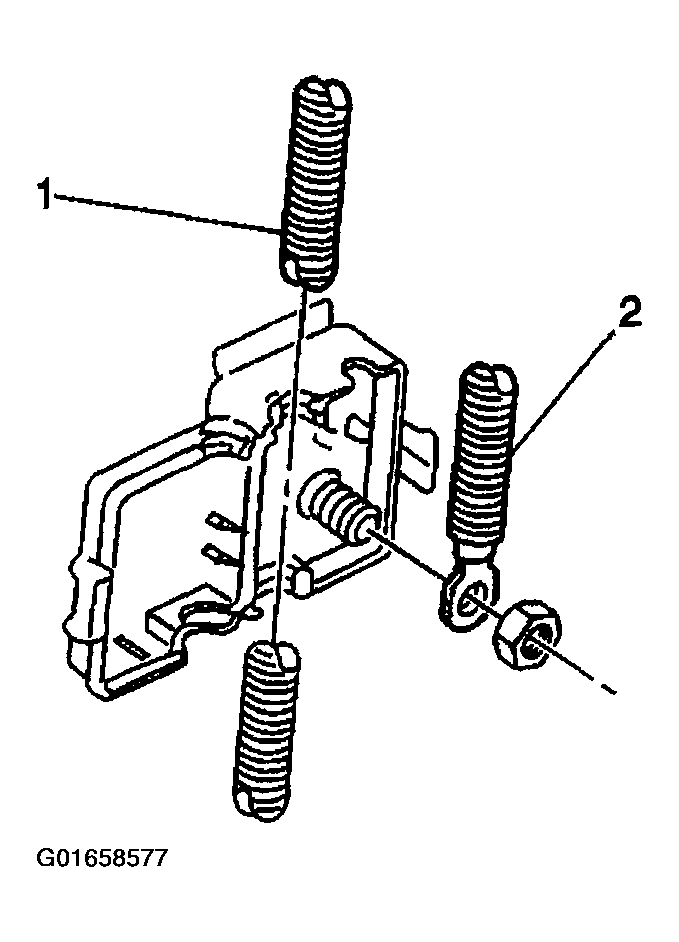

Fig 5: Tightening Positive Cable Bolt
Courtesy of GENERAL MOTORS CORP.

Tighten the positive cable bolt at the UBEC to 9 N.m (80 lb in).

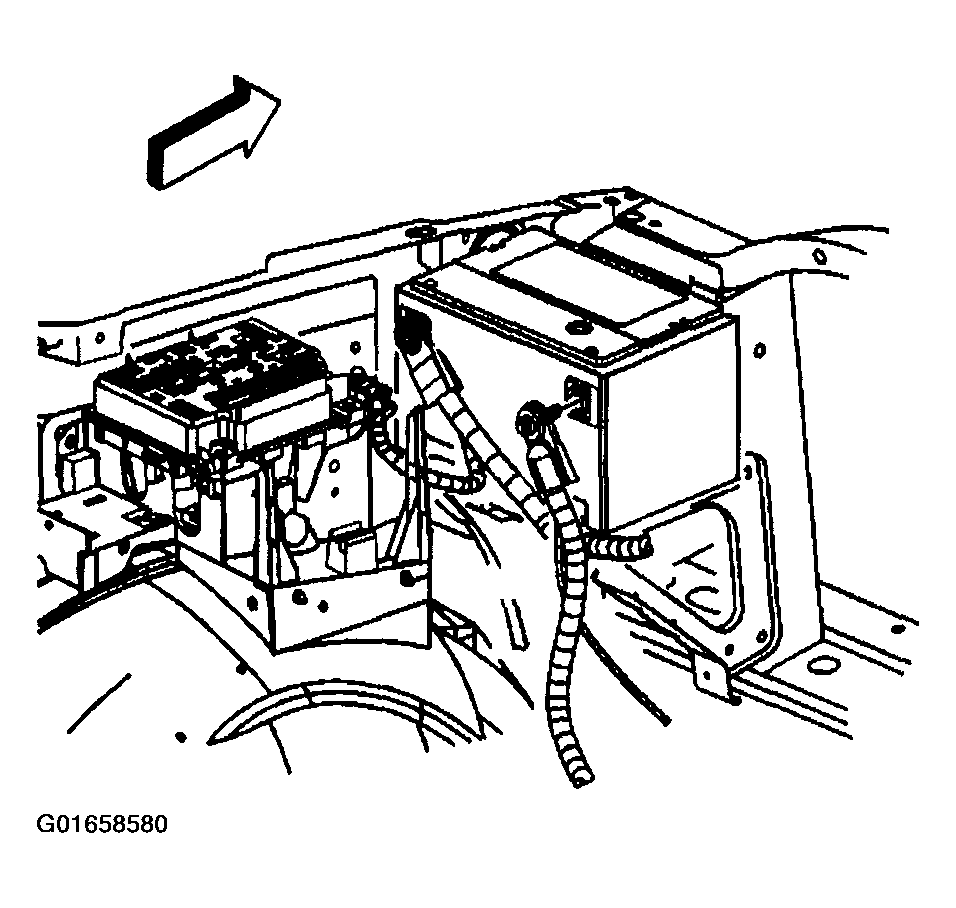

Fig 6: Connecting Positive Battery Cable

Courtesy of GENERAL MOTORS CORP.

Connect the positive battery cable.
Tighten

Tighten the positive battery cable bolt to 17 N.m (13 lb ft).
Snap the positive battery cable cap.

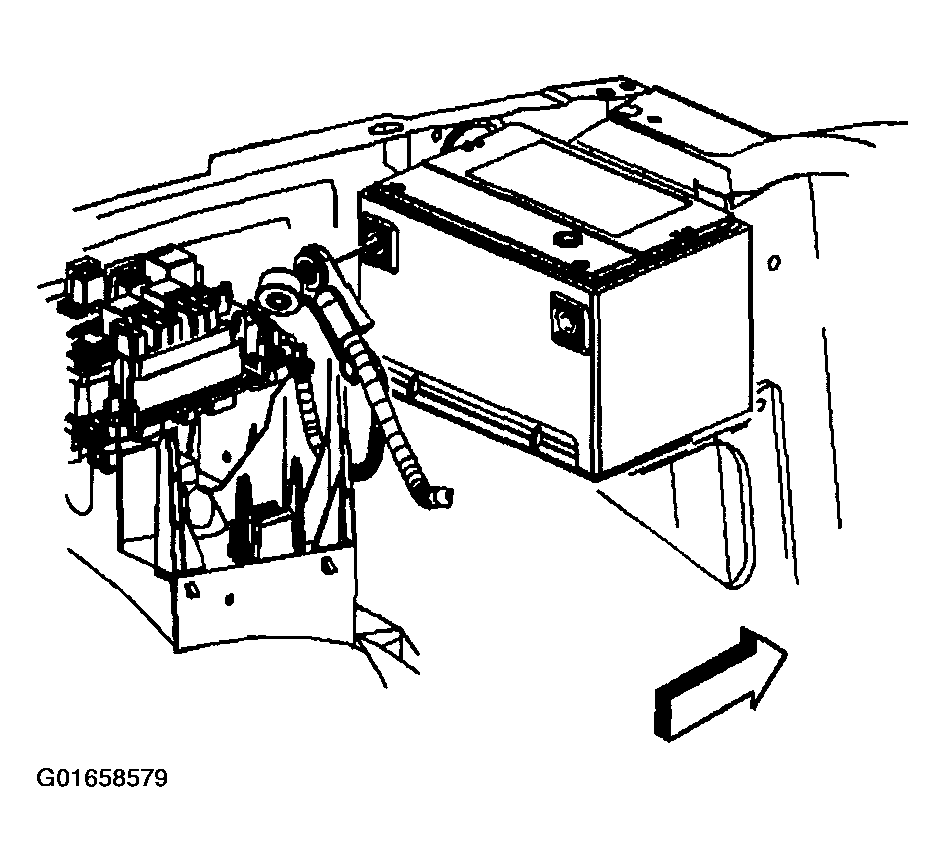

Fig 7: Connecting Negative Battery Cable

Courtesy of GENERAL MOTORS CORP.

Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) .
