Installation Procedure

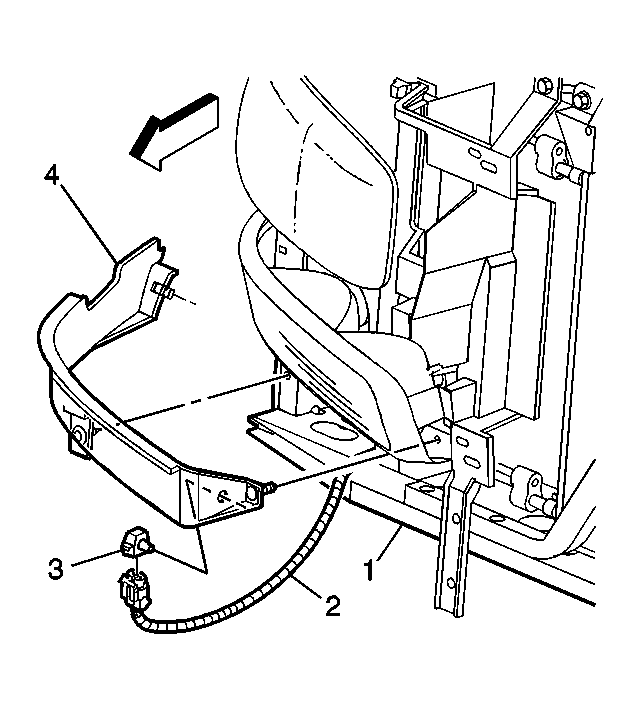

    Fig 1: Ambient Air Temperature Sensor
    GM612474Courtesy of GENERAL MOTORS CORP.
  1. Install the ambient temperature sensor (3).
  2. Connect the electrical connector to the ambient temperature sensor (3).
  3. Install the Park/Turn Signal.
