Connector Identification

WARNING: This page is about a different car, the 2000 GMC Safari and 2000 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1, Fig 2, Fig 3, Fig 4, Fig 5 & Fig 6 .

Fig 1: Identifying SDM Connector Terminals

G99J00363

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Front-end Discriminating Sensor Connector Terminals

G98D09243

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying SIR Coil Connector Terminals

G98D09276

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Passenger-side Air Bag Connector Terminals

G98H09278

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Passenger-side Trim Cover Connector Terminals

G98B13616

Courtesy of GENERAL MOTORS CORP.

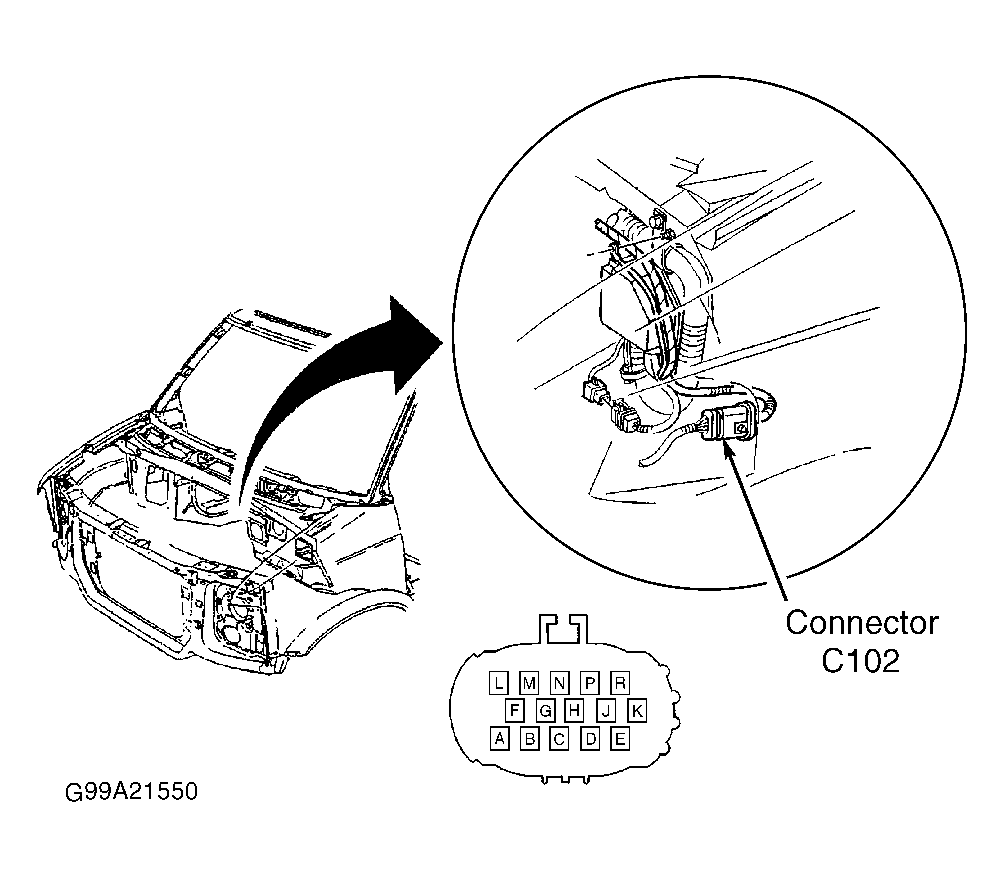

Fig 6: Locating & Identifying Connector C102 Terminals

G99A21550

Courtesy of GENERAL MOTORS CORP.
