Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the leaf spring assembly from vehicle. Refer to Leaf Spring Replacement .
  3. Remove the shackle nut and the bolt from the spring.

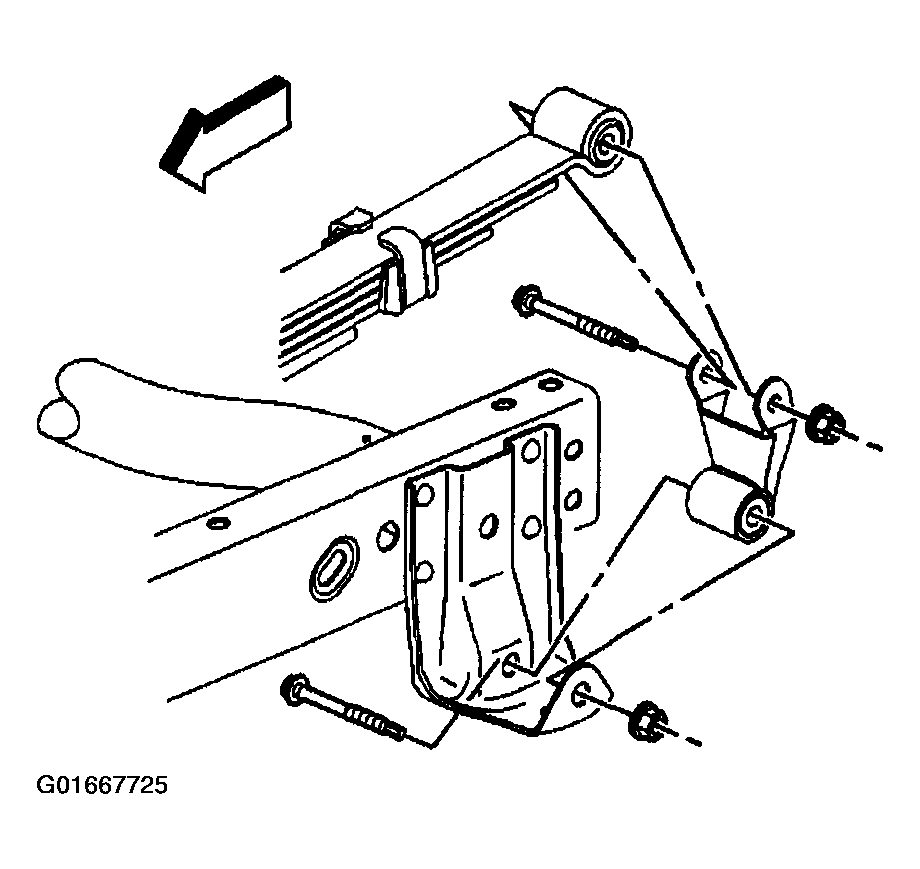

    Fig 1: Spring Shackle
    G01667725Courtesy of GENERAL MOTORS CORP.
