Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the leaf spring assembly from vehicle. Refer to Leaf Spring Replacement .
  3. Remove the bushing from the leaf spring using the following procedure:
    1. 3.1. Place the leaf spring in a press.
    2. 3.2. Press the bushing out.
    3. 3.3. Clean the spring bushing bore of any foreign or old bushing material.

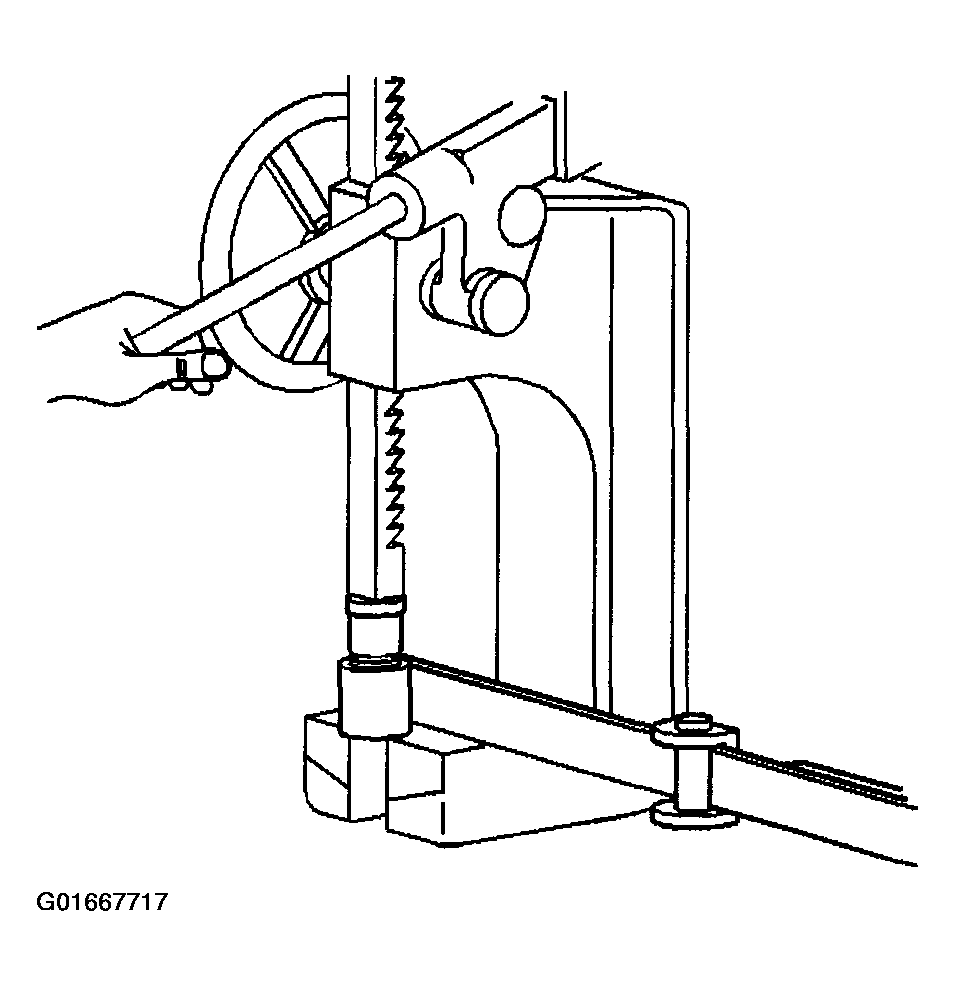

    Fig 1: Removing Bushing From Leaf Spring
    G01667717Courtesy of GENERAL MOTORS CORP.
