Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply rubber lubricant to the bushing (1) and spring eye (2).
  2. Install the bushing to the leaf spring.
    1. 2.1. Place the leaf spring in a press.
    2. 2.2. Press the bushing into the spring.

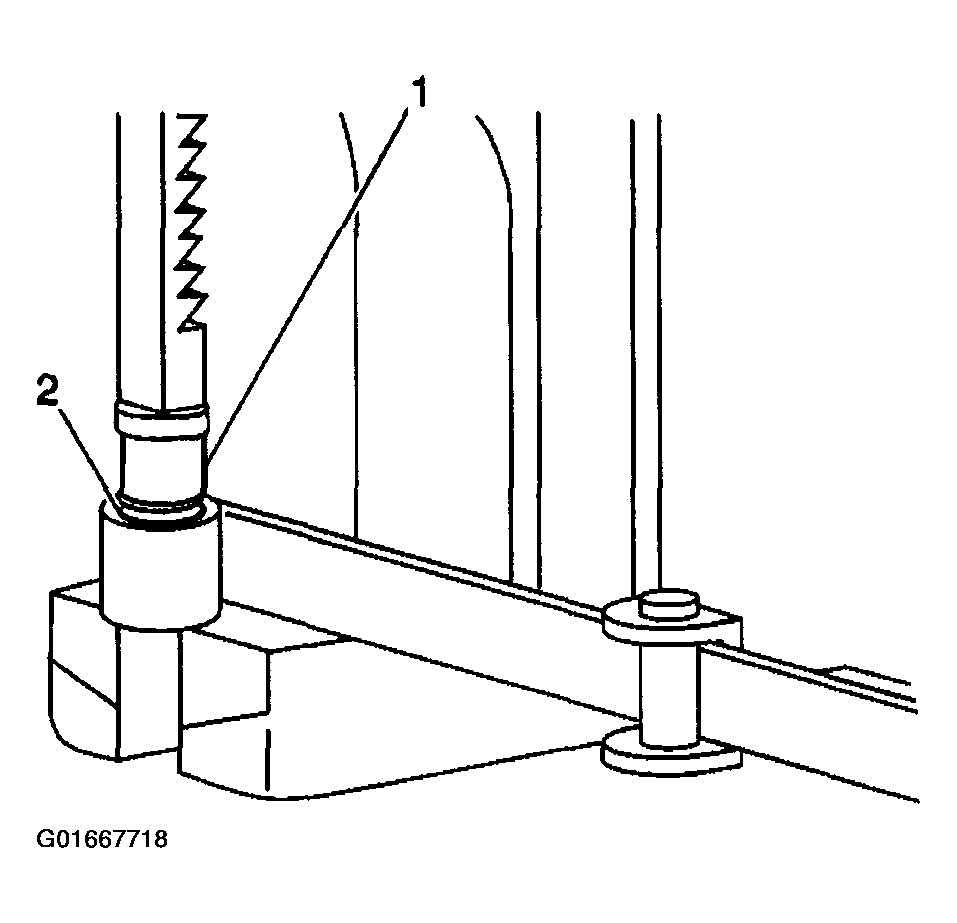

    3. Fig 1: Installing Bushing To Leaf Spring
    G01667718Courtesy of GENERAL MOTORS CORP.
  3. Install the leaf spring assembly to the vehicle. Refer to Leaf Spring Replacement .
  4. Remove the safety stands.
  5. Lower the vehicle.
