Test B: Scan Tool Will Not Communicate With Components

For testing procedure, refer to flowchart. See Fig 1 and Fig 2 .

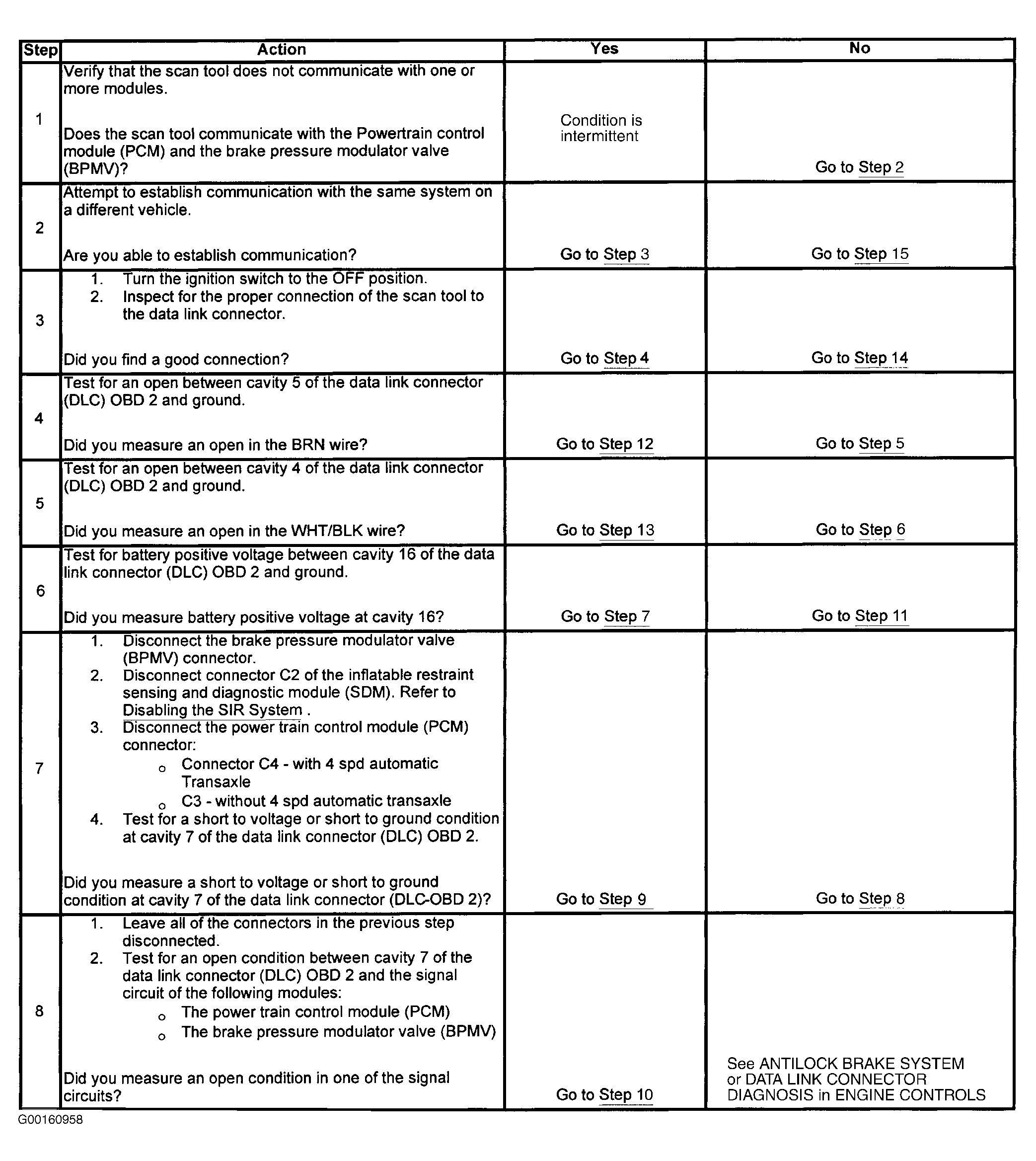

Fig 1: Test B: Scan Tool Will Not Communicate With Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

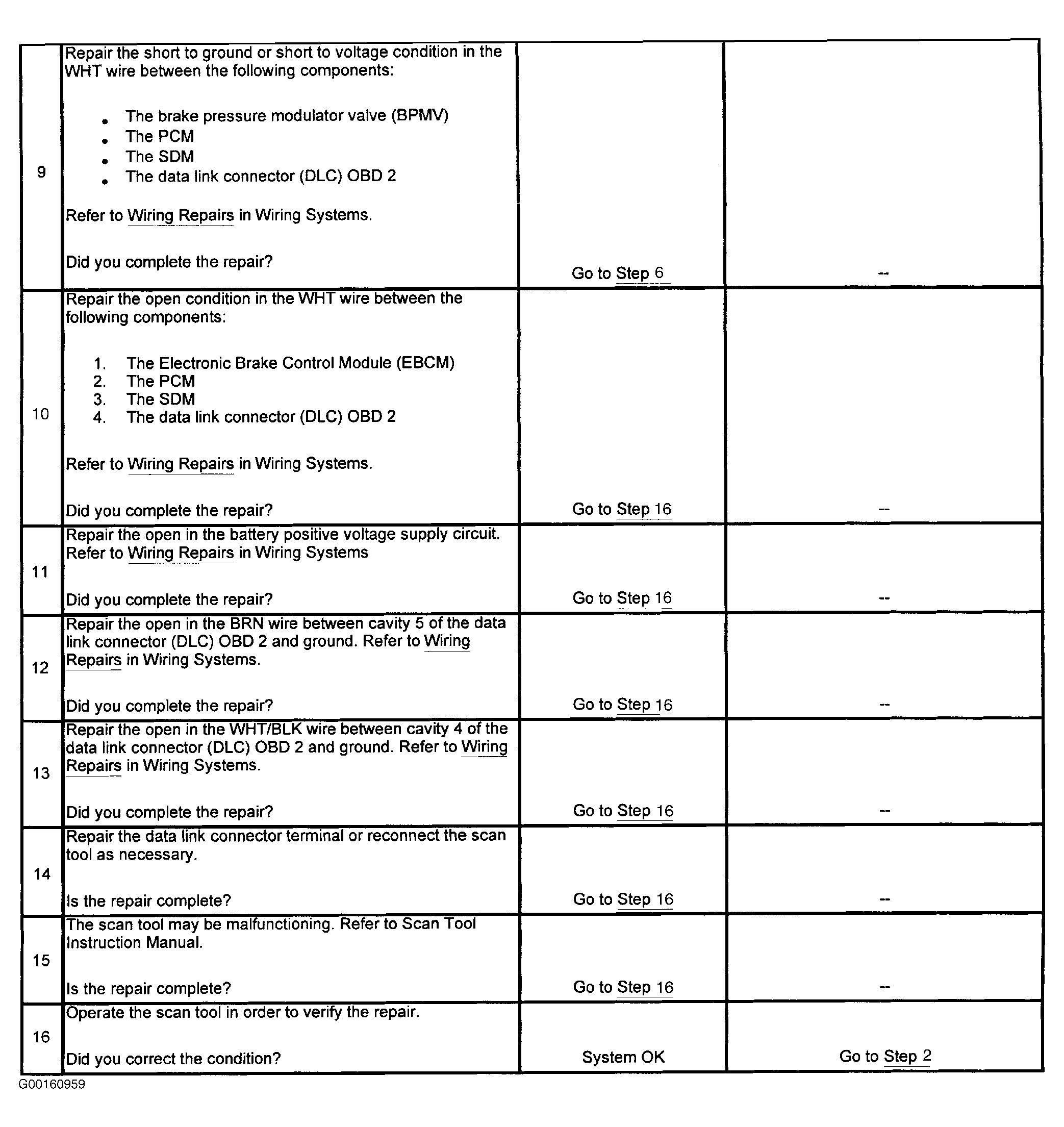

Fig 2: Test B: Scan Tool Will Not Communicate With Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
