Rear Suspension: Description

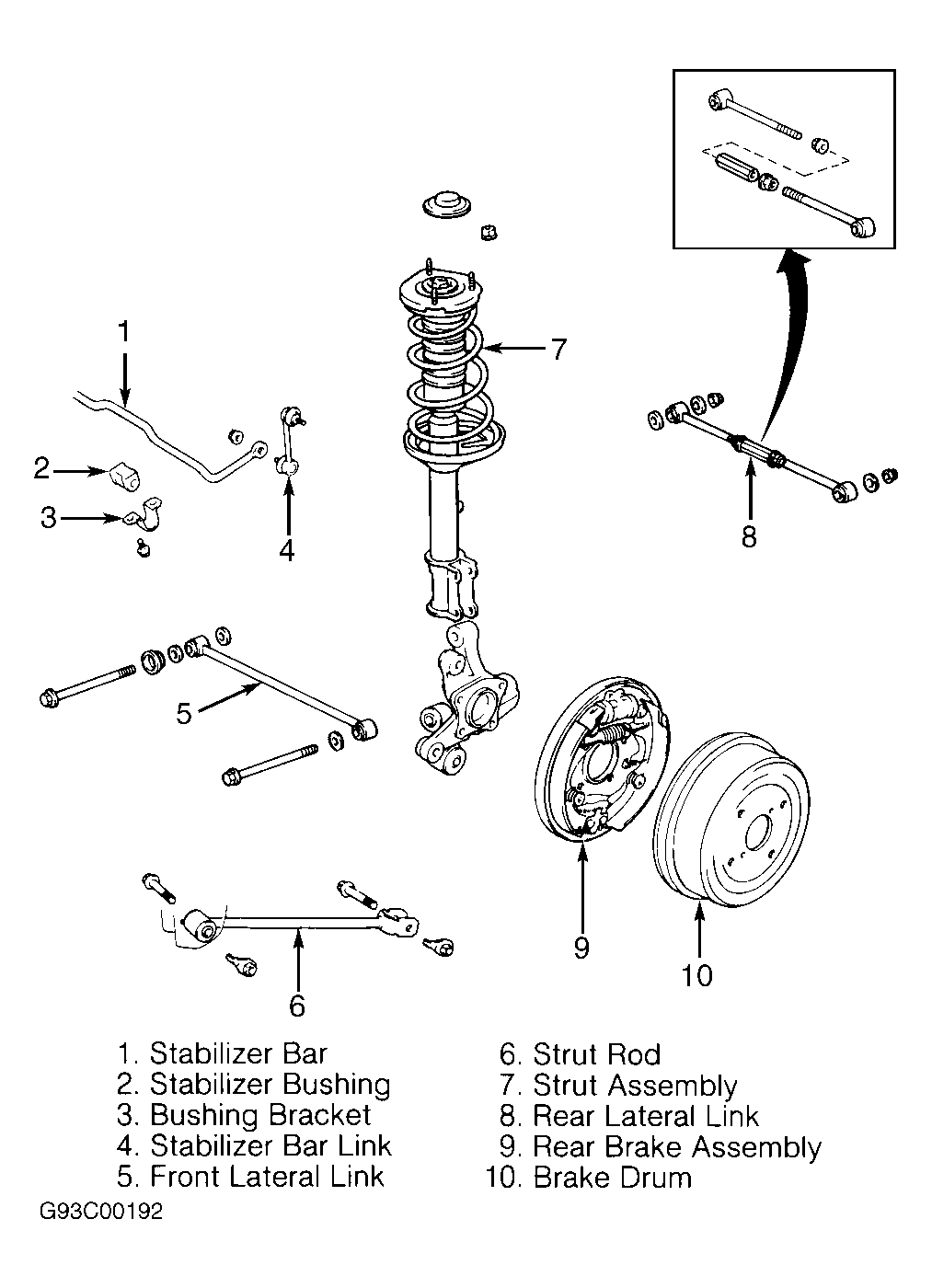

Rear suspension is MacPherson strut-type, independent suspension. Upper end of strut is anchored to body by a strut support. Stabilizer bar and link are anchored by strut assembly. Lower end of rear suspension knuckle attaches to strut rod and 2 lateral links. See Fig 1 .
