Lower Control Arm: Installation

To install, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS  . Check wheel alignment. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

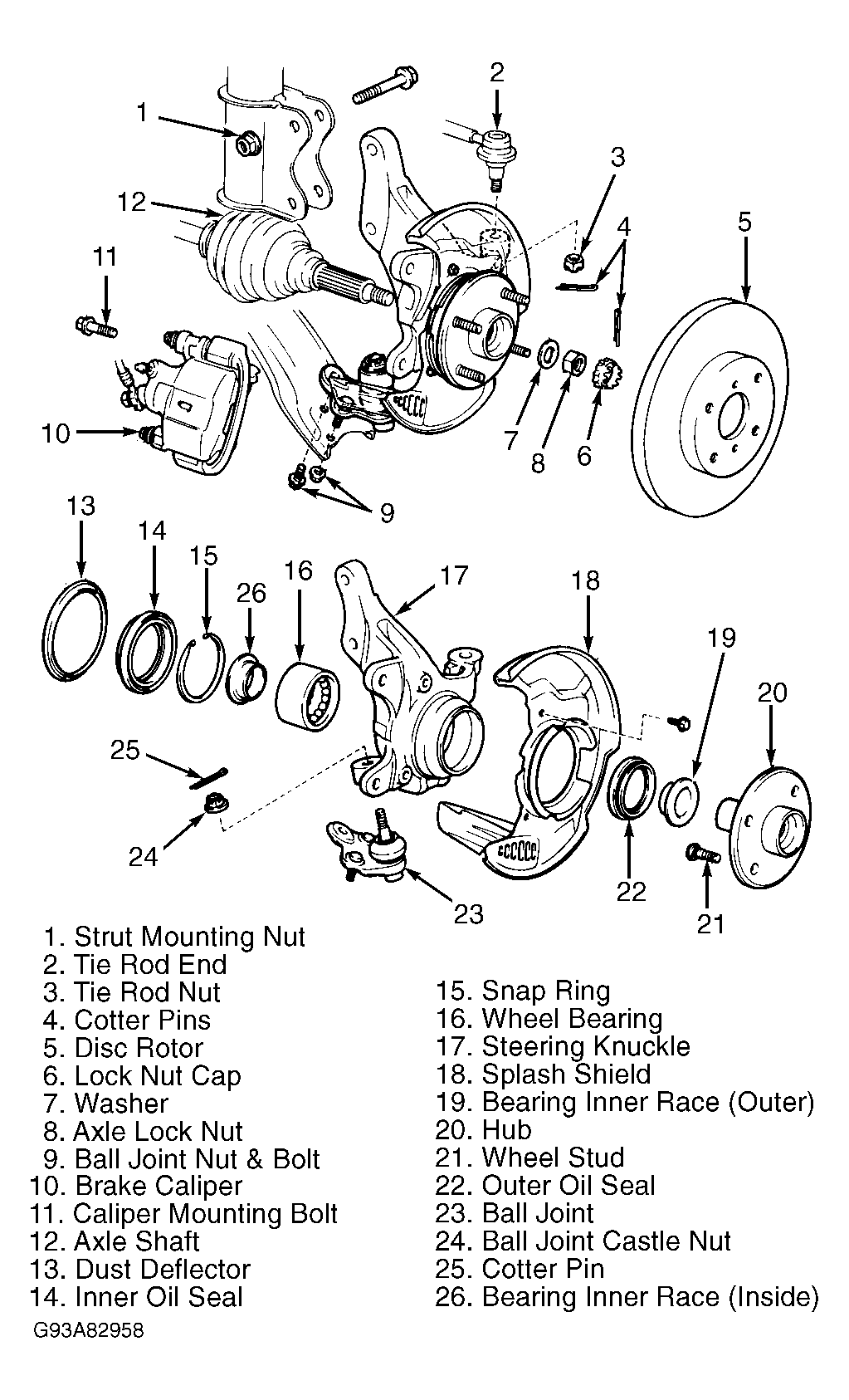

Fig 1: Exploded View Of Front Hub & Knuckle Assembly

Courtesy of GENERAL MOTORS CORP.
