Chevrolet
>>
2000
>>
Prizm Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Fuse & Relay Blocks
Fuse & Relay Blocks

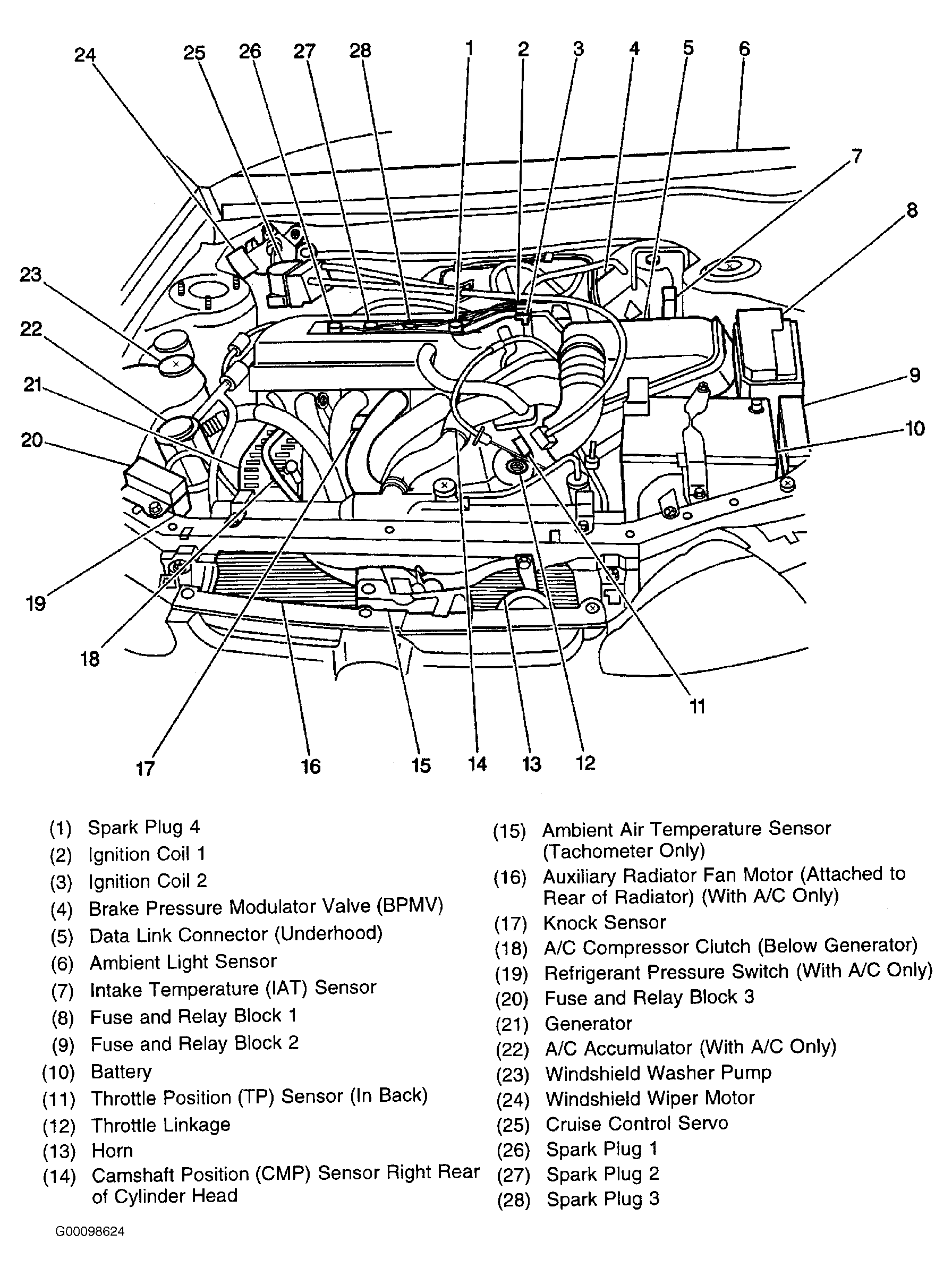

Fig 1: Locating Fuse & Relay Blocks
Courtesy of GENERAL MOTORS CORP.

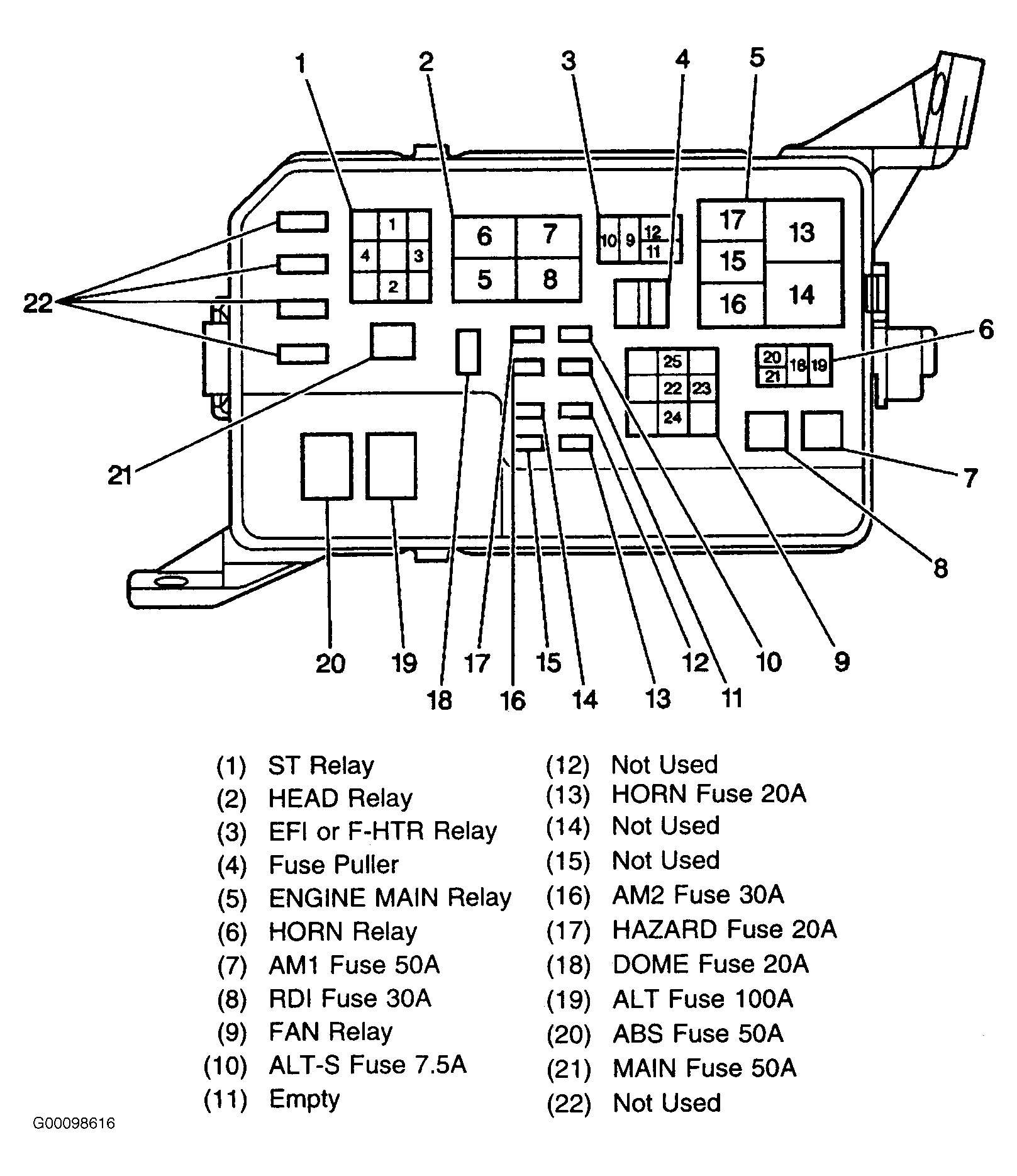

Fig 2: Fuse & Relay Block 1 - View & Identification
Courtesy of GENERAL MOTORS CORP.

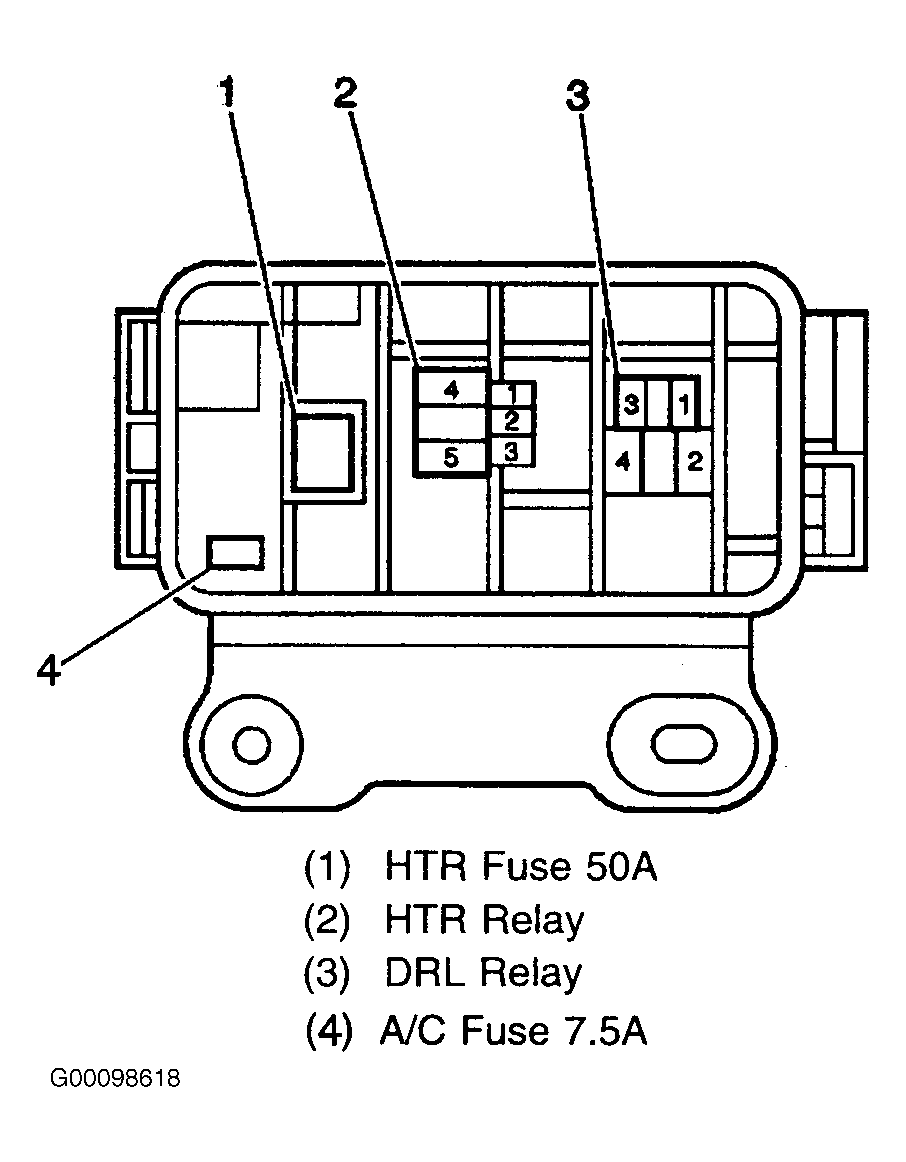

Fig 3: Fuse & Relay Block 2 - View & Identification
Courtesy of GENERAL MOTORS CORP.

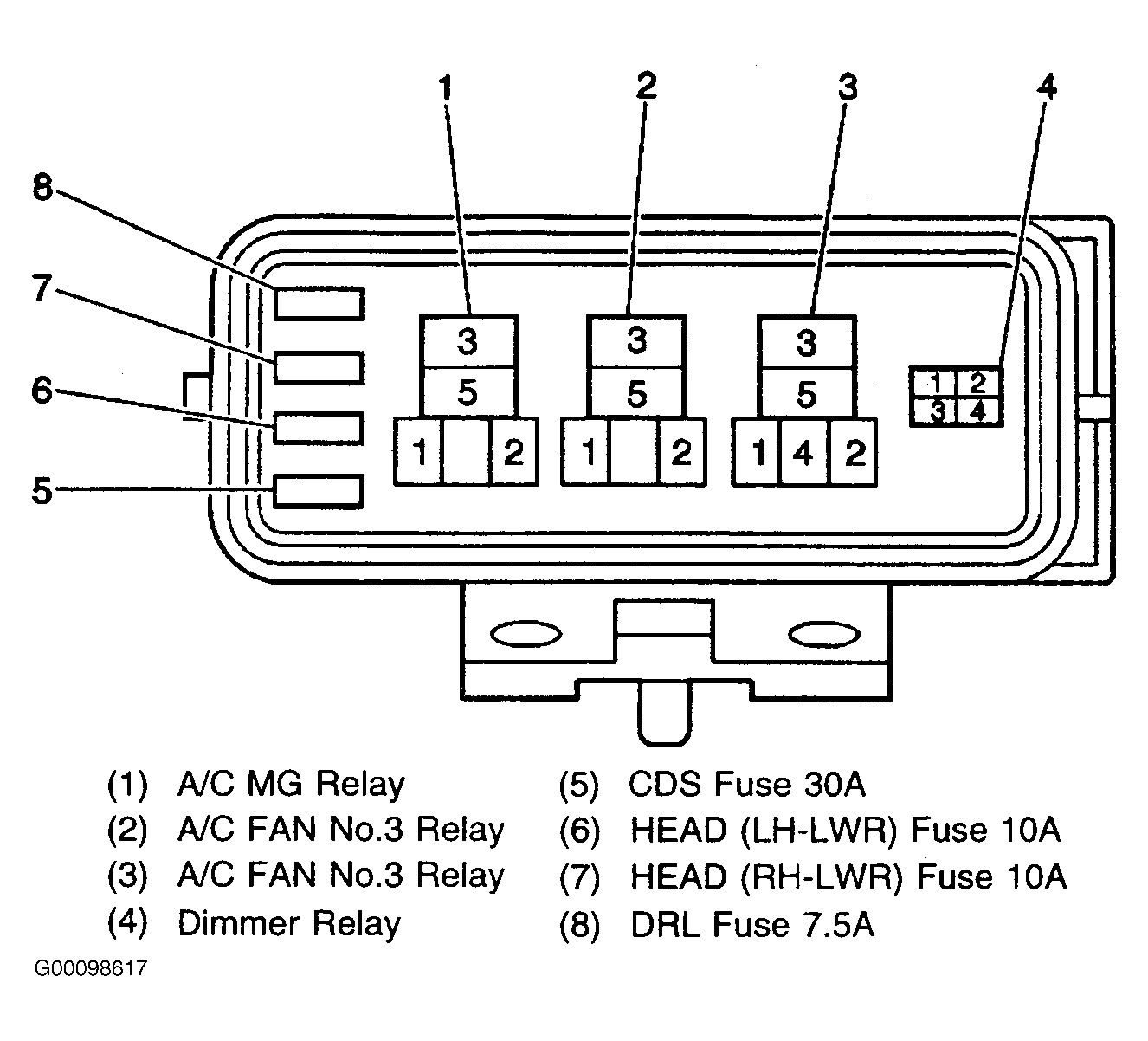

Fig 4: Fuse & Relay Block 3 - View & Identification
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
