Communication Devices
>>
Data Link Communications System
>>
Connector Identification
Connector Identification

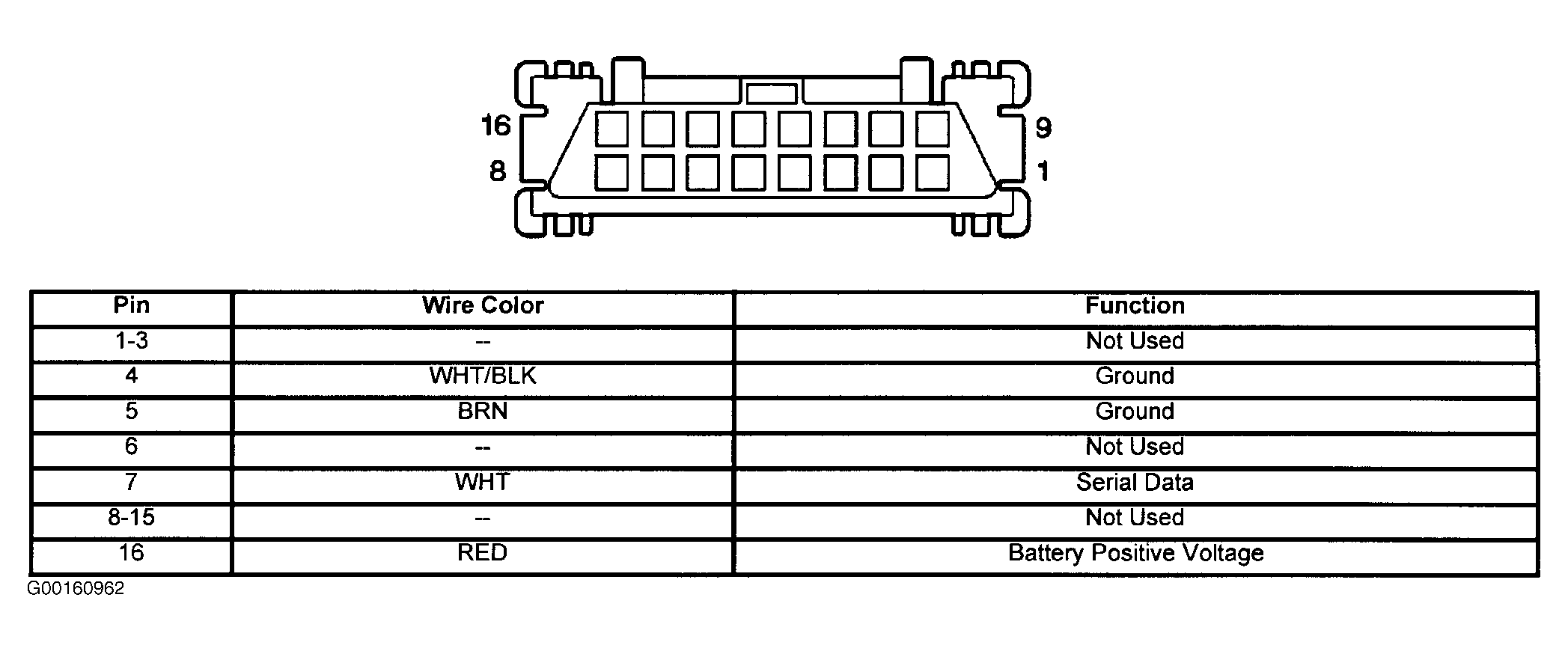

Fig 1: Identifying OBD-II DLC Terminals
Courtesy of GENERAL MOTORS CORP.

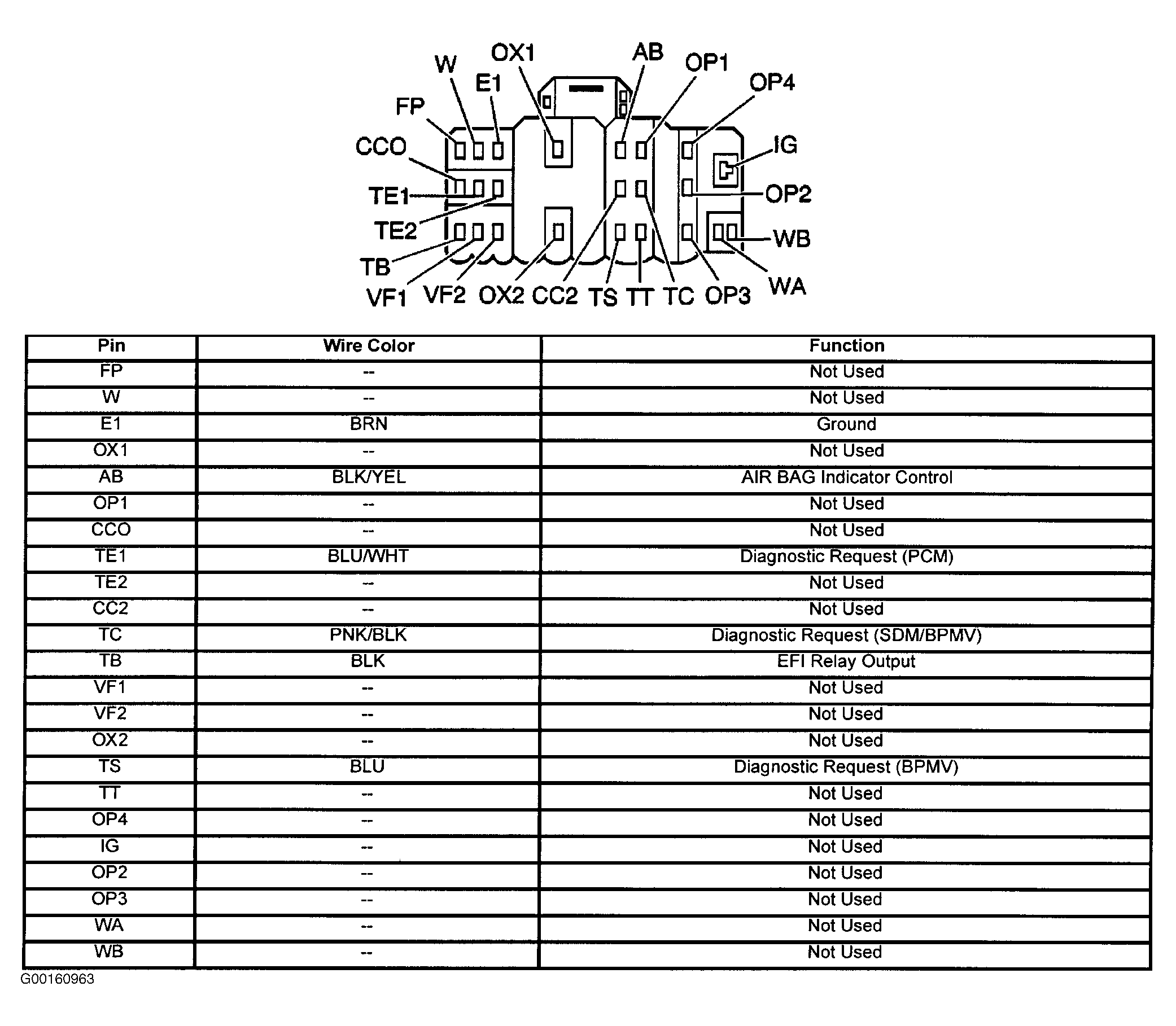

Fig 2: Identifying Underhood DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
