Wiper/Washer Switch
Check for continuity between specified terminals of wiper/washer switch with wiper/washer switch in specified position. See WIPER/WASHER SWITCH CONTINUITY TEST table. If continuity does not exist, replace wiper/washer switch. See WIPER/WASHER SWITCH under REMOVAL & INSTALLATION.
WIPER/WASHER SWITCH CONTINUITY TEST

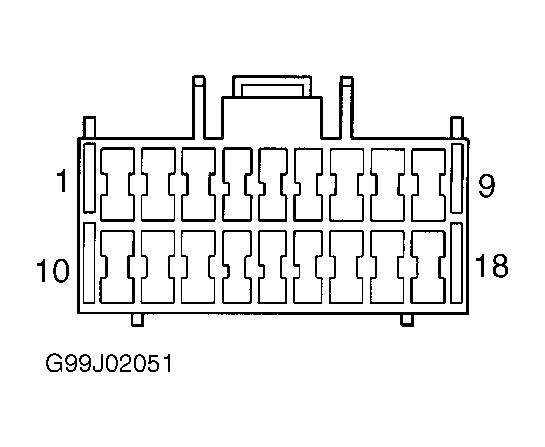

| Switch Position | (1) Terminals No. | ||
|---|---|---|---|
| OFF | 7 & 16 | ||
| INT | 7 & 16 | ||
| LO | 7 & 17 | ||
| HI | 8 & 17 | ||
|
|||
