Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood release handle.

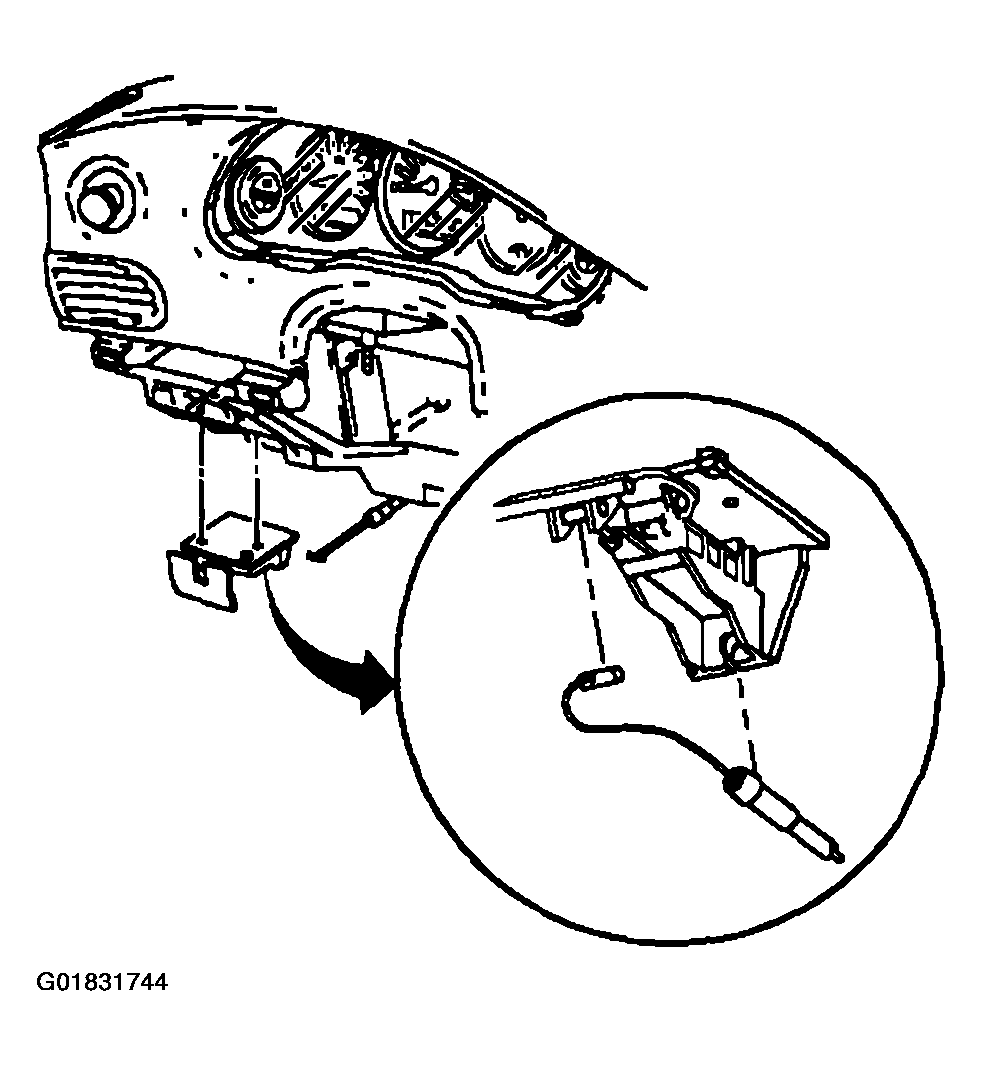

    Fig 1: Installing Hood Release Cable To Hood Release Handle
    G01831744Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts to hood release handle base.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  4. Install the instrument panel steering column filler. Refer to STEERING COLUMN FILLER REPLACEMENT in Instrument Panel, Gages, And Console

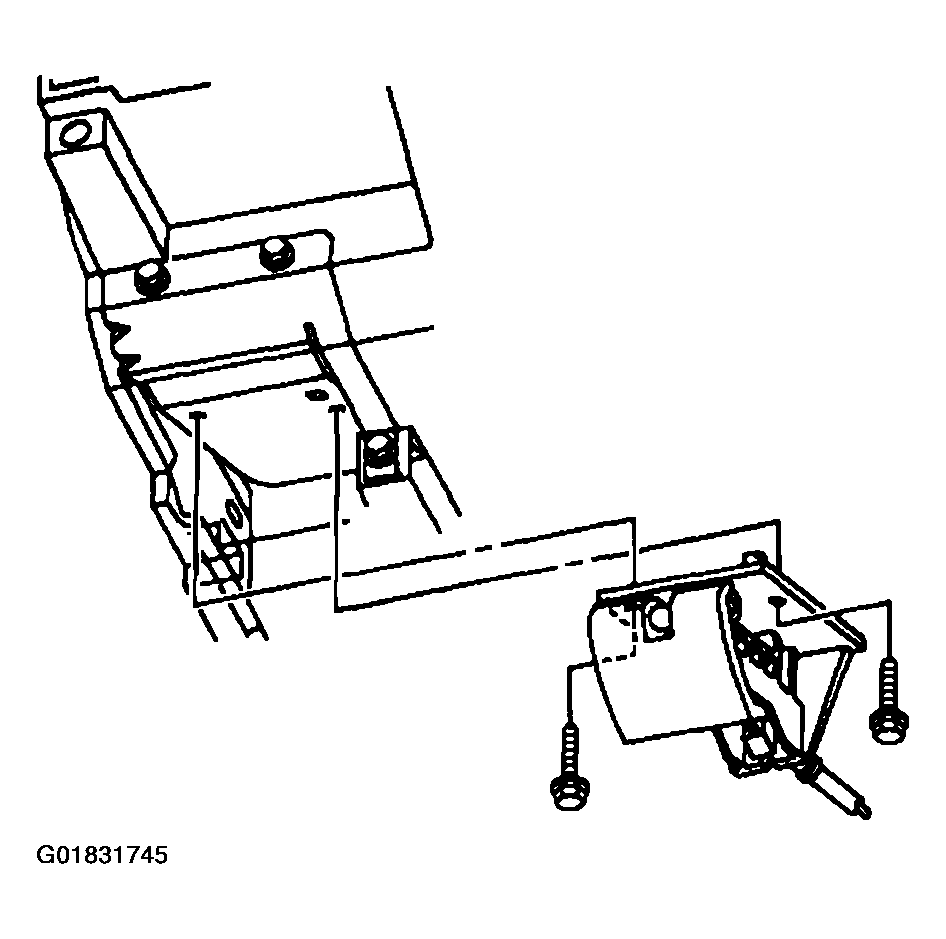

    Fig 2: Installing Bolts To Hood Release Handle Base
    G01831745Courtesy of GENERAL MOTORS CORP.
