Description & Operation

MacPherson strut independent front suspension is used. Strut and strut support are isolated by rubber mounts. Strut is connected to steering knuckle. Lower end of steering knuckle is attached to ball joint and control arm. See Fig 1.

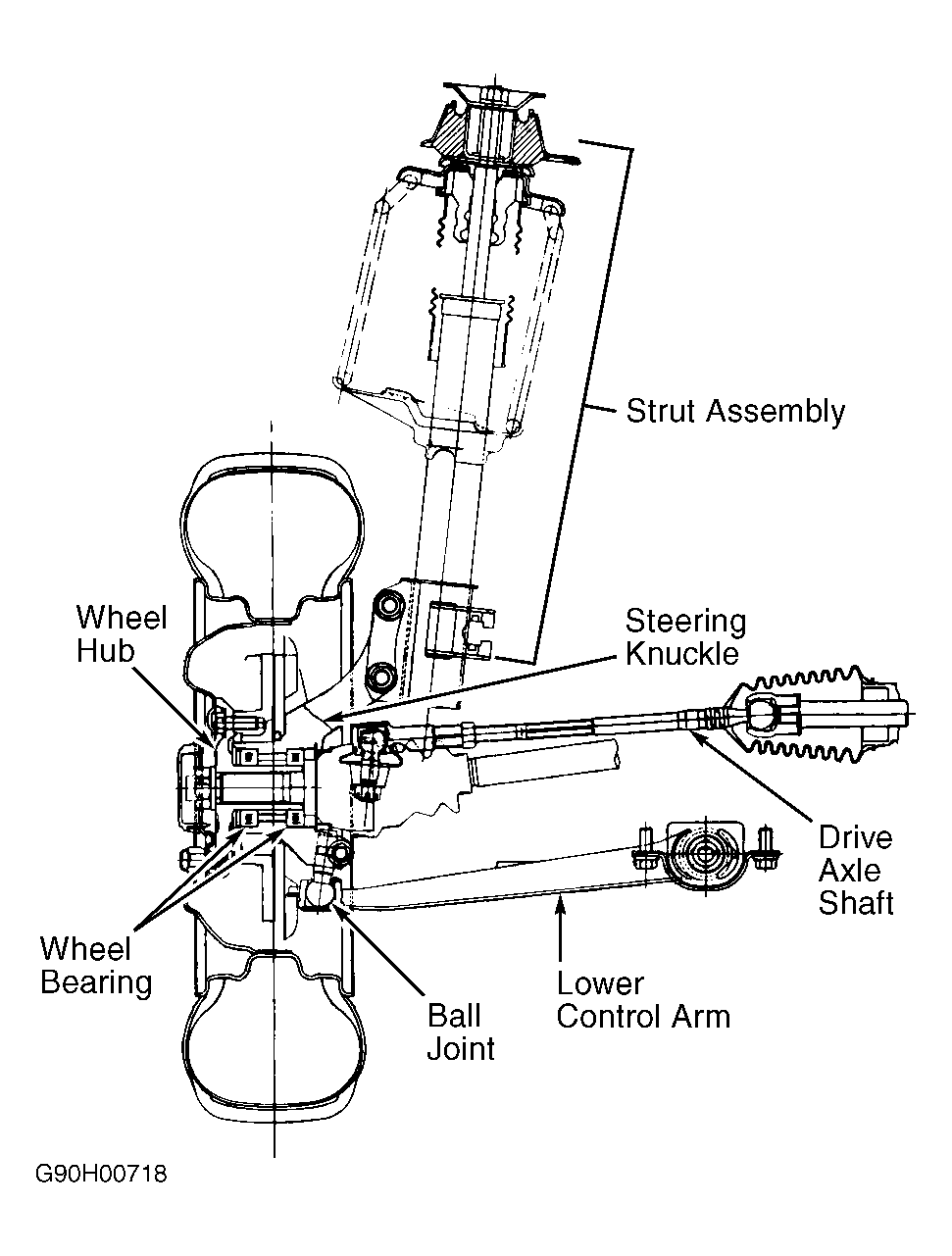

Fig 1: Cross-Sectional View Of Front Suspension Assembly

Courtesy of GENERAL MOTORS CORP.
