Vehicle Speed Sensor: Installation

  1. Install the O-ring (11) to the vehicle speed sensor (10). See Figure . Install the vehicle speed sensor (10) to the extension case. See Figure . Install the vehicle speed sensor bolt (9).

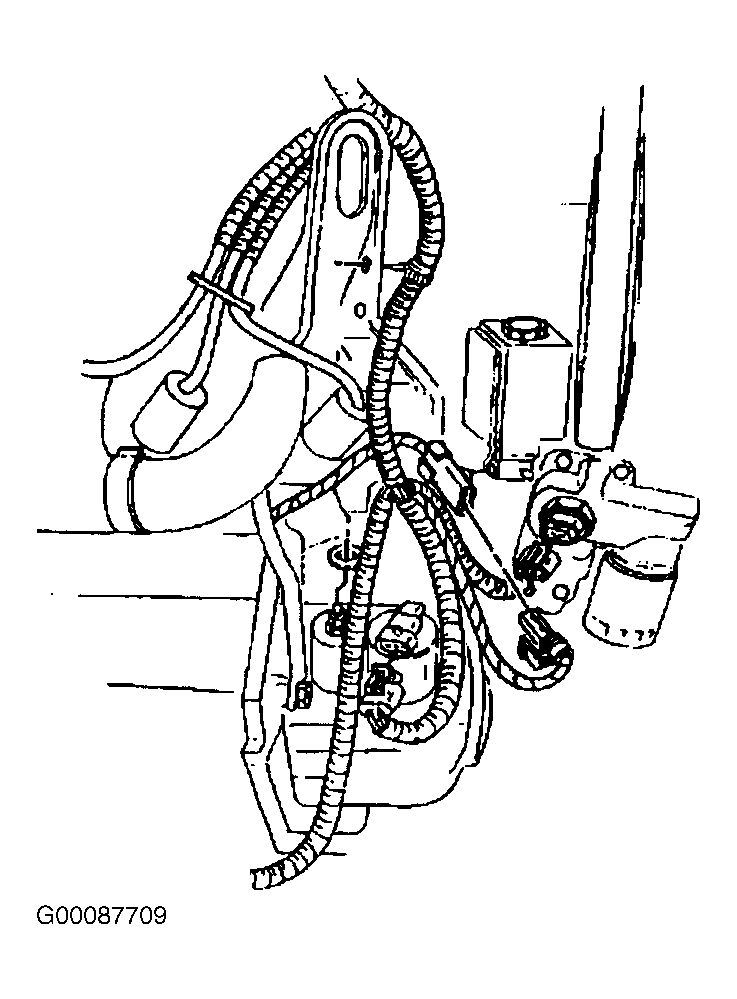

  2. Tighten the vehicle speed sensor bolt (9) to specification. See TORQUE SPECIFICATIONS  . Install the vehicle speed sensor wiring harness connector. See Figure .
  3. Install the right engine splash shield by positioning the engine splash shield to the lower flange of the engine compartment side rail. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail. Install the push-in retainers to the engine splash shield. Install the right front tire and wheel. Lower the vehicle.
