Oil Pump Assembly: Installation

Install oil pump assembly onto control valve body. Install bolts in specified locations. See OIL PUMP BOLT SPECIFICATIONS  table under TRANSAXLE REASSEMBLY. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

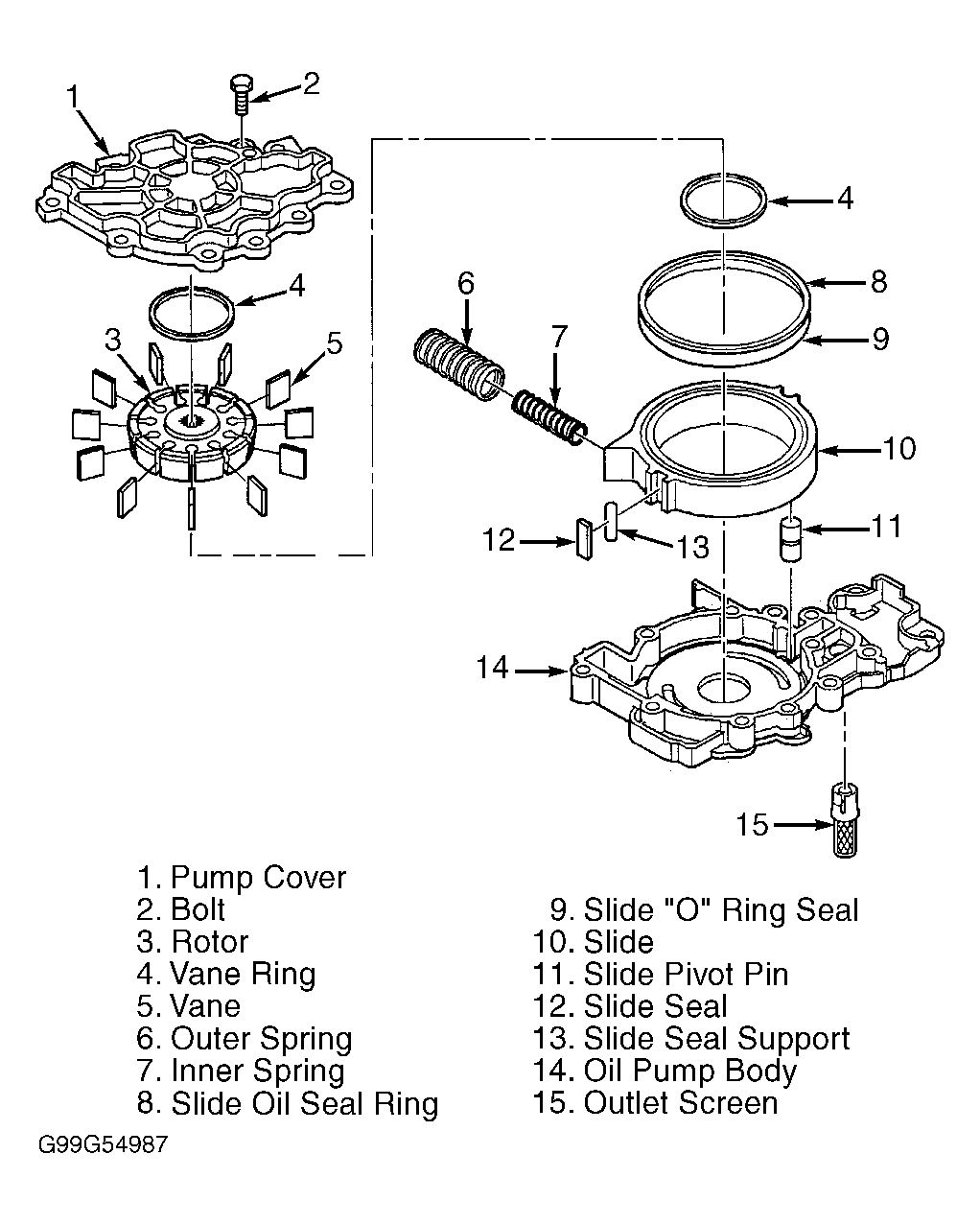

Fig 1: Exploded View Of Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.

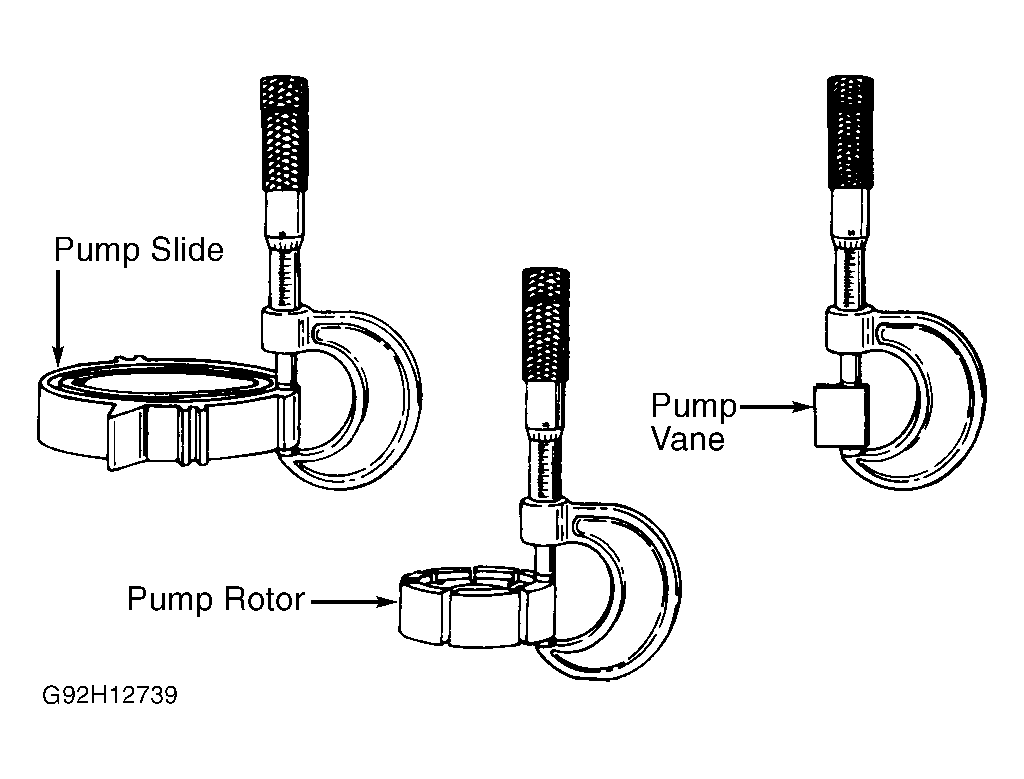

Fig 2: Measuring Pump Slide, Rotor & Vanes

Courtesy of GENERAL MOTORS CORP.
