Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY
Remove the bolts from the radio.
Pull the radio toward you.

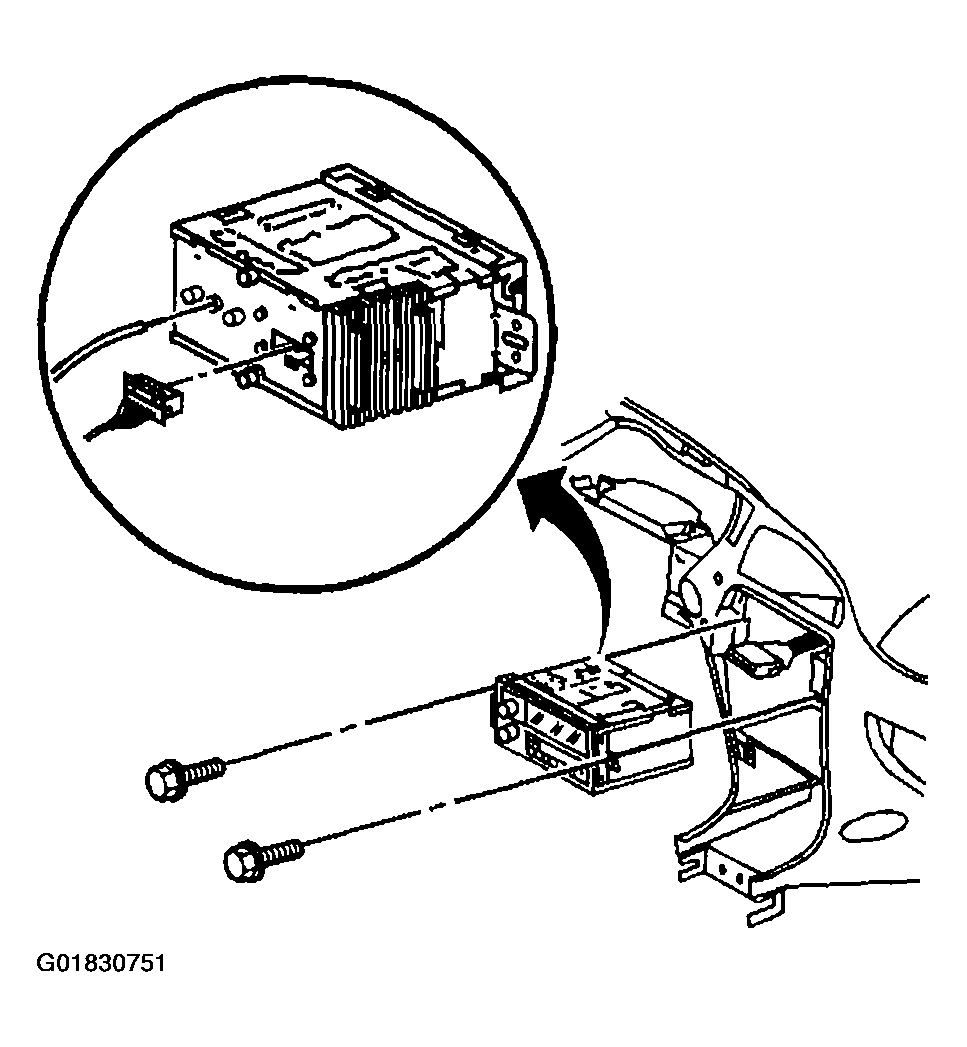

Fig 1: Remove Instrument Panel Accessory Trim Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical/audio connector from the rear of the radio.
Disconnect the coaxial cable from the rear of the radio.
Remove the radio from the instrument panel.

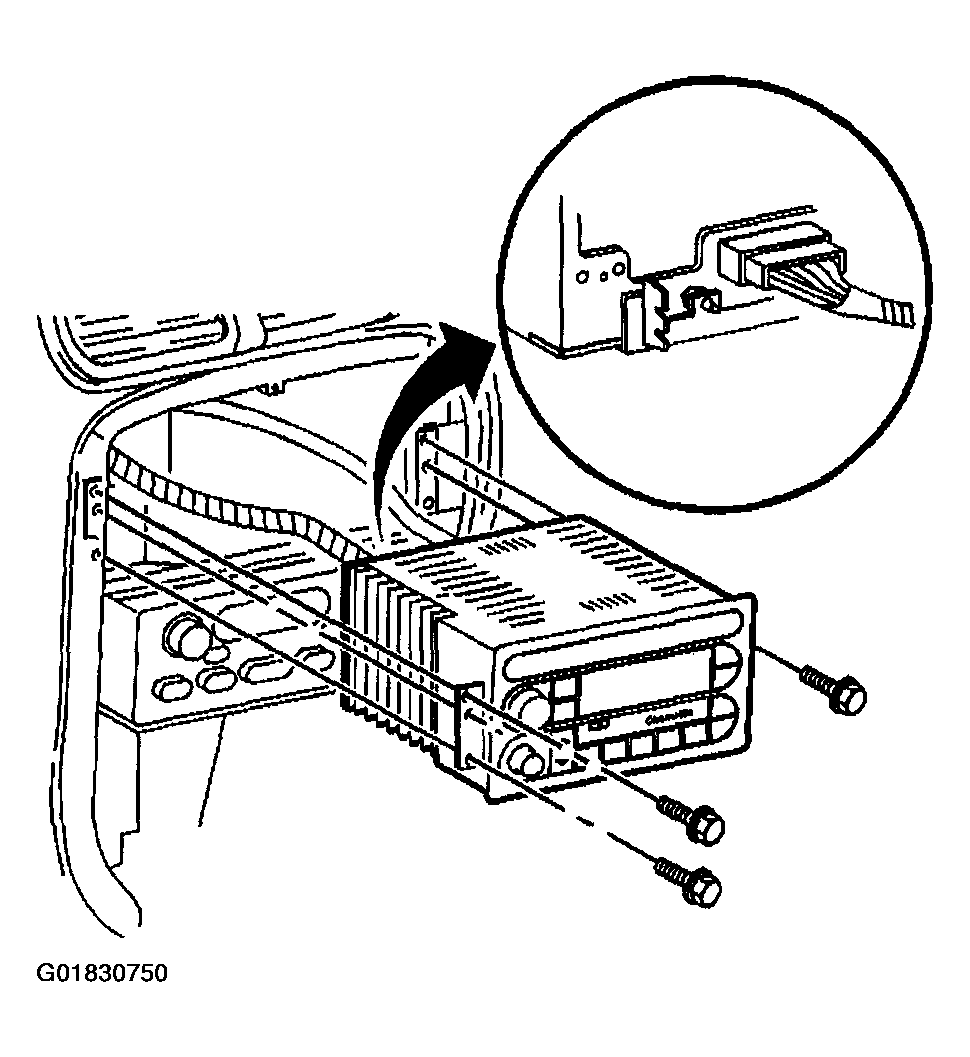

Fig 2: Disconnect Electrical/Audio Connector & Coaxial Cable
Courtesy of GENERAL MOTORS CORP.
