Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine splash shield to the lower flange of engine compartment side rail.
  2. Install the engine splash shield to the lower flange of engine compartment side rail.
  3. Route the ABS lead through the slot in the engine splash shield.
  4. Install the push-in retainers holding the ABS lead to the engine splash shield.
  5. Align the holes in the engine splash shield to the holes in the outboard side engine compartment side rail.
  6. Install the push-in retainers to the engine splash shield.

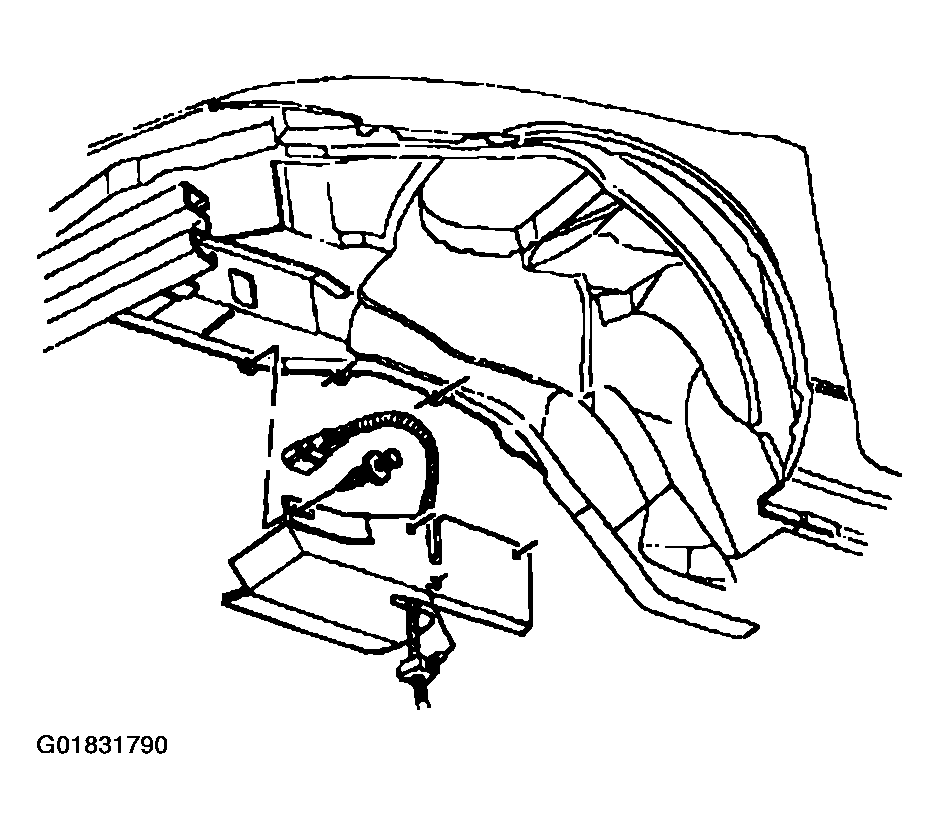

    Fig 1: Installing Push - In Retainers To Engine Splash Shield
    G01831790Courtesy of GENERAL MOTORS CORP.
