Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the vehicle with an assistant.
  2. Align the hood hinges to alignment marks on the hood.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts to the upper hood hinge with an assistant.

    Tighten

    Tighten the bolts to 27 N.m (20 lb ft).

  4. Adjust the hood. Refer to Hood Adjustment .

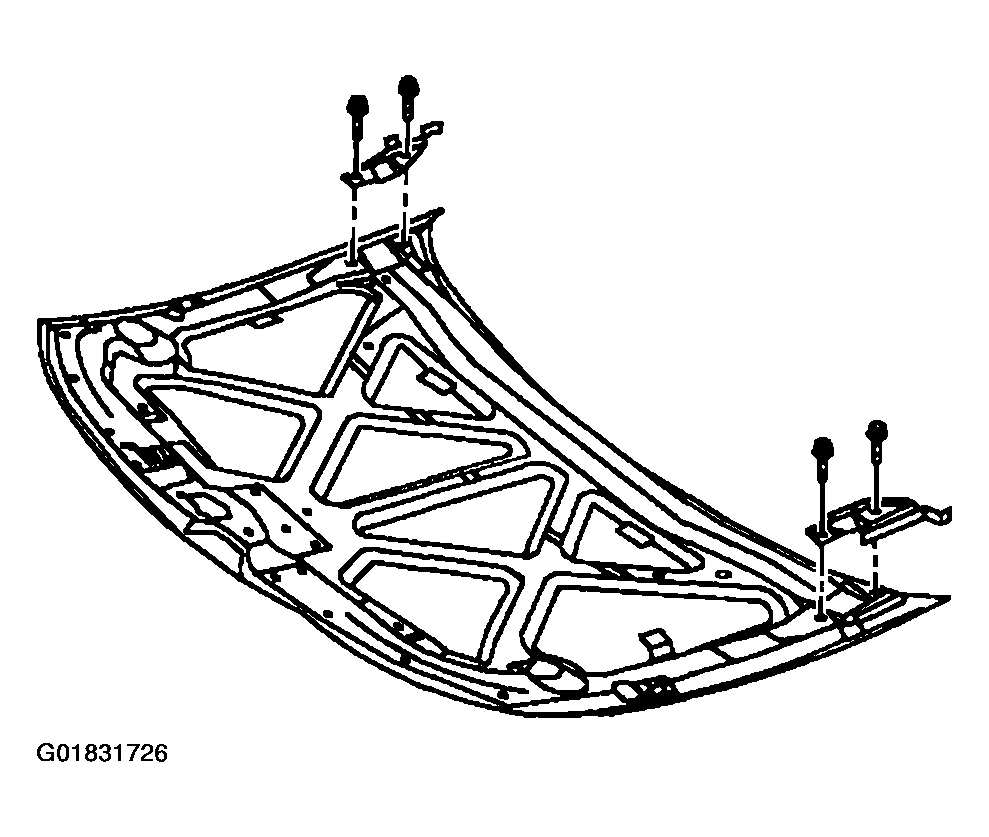

    Fig 1: Installing Bolts & Hood
    G01831726Courtesy of GENERAL MOTORS CORP.
