Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood latch.

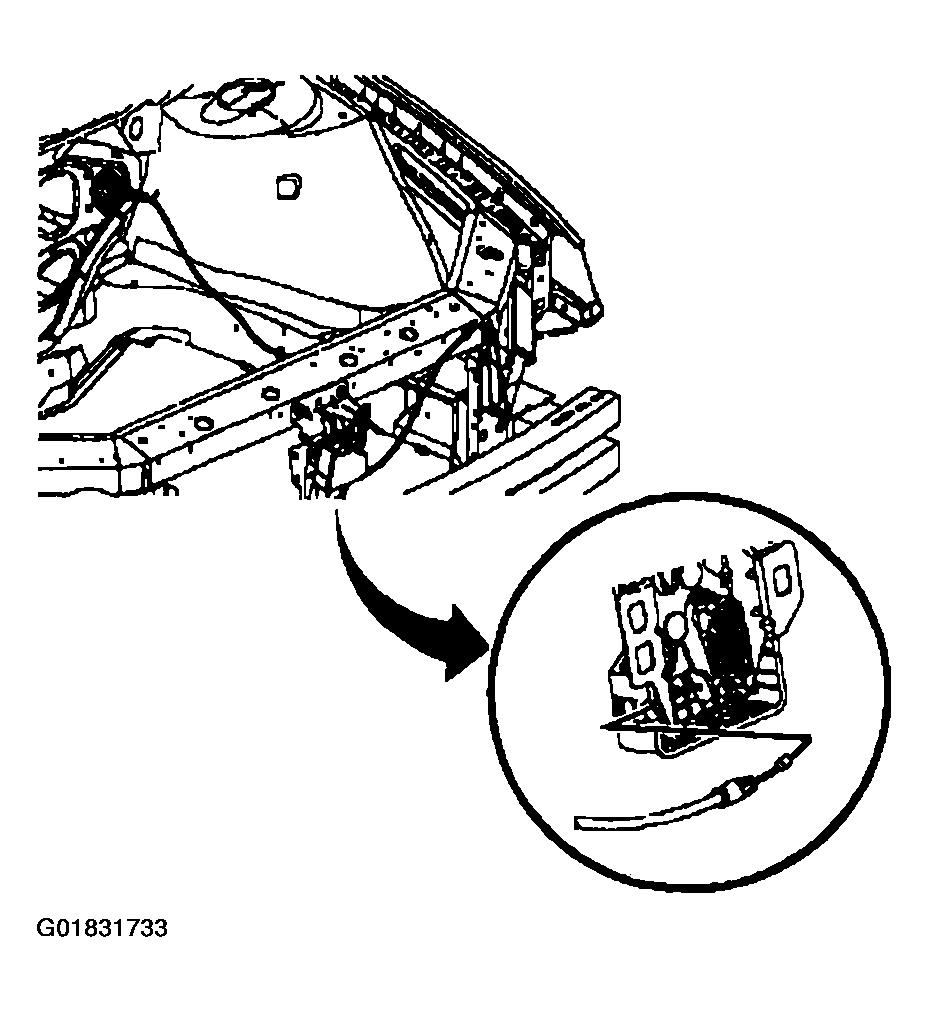

    Fig 1: Installing Hood Release Cable To Hood Latch
    G01831733Courtesy of GENERAL MOTORS CORP.
  2. Align the hood latch to the marks on the center support bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the hood latch to center support bracket bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  4. Close the hood.

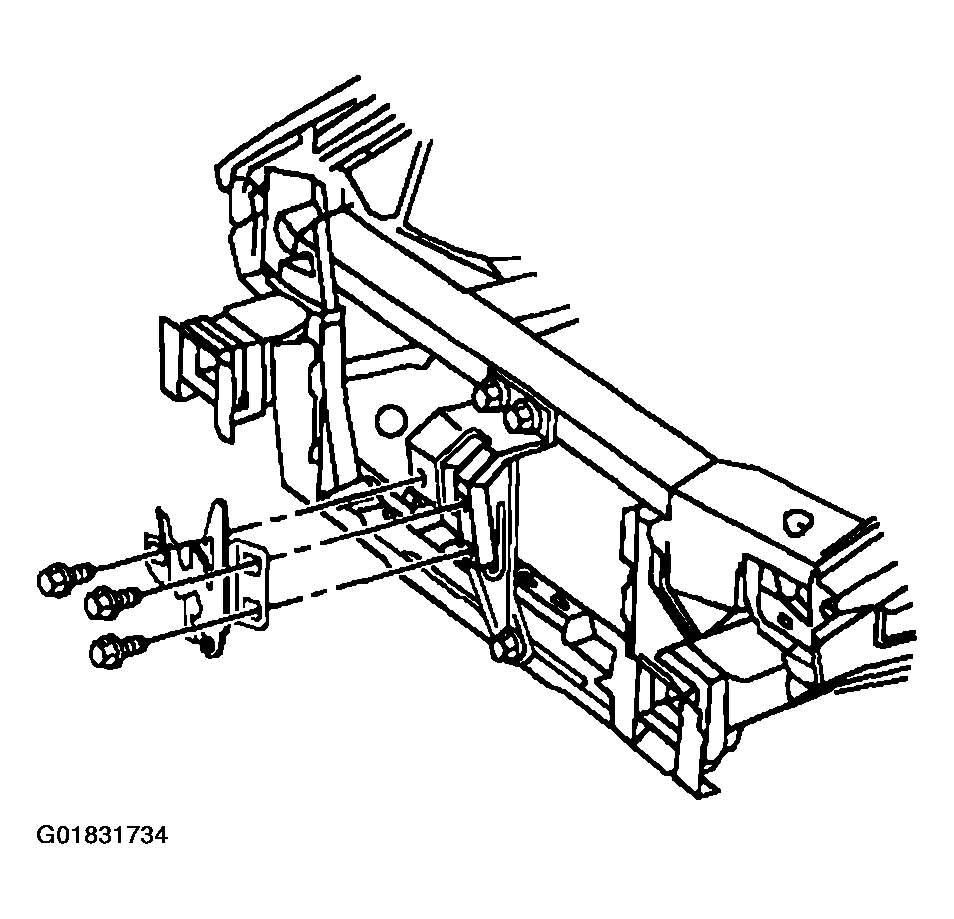

    Fig 2: Installing Bolts & Hood Latch
    G01831734Courtesy of GENERAL MOTORS CORP.
