Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE
  2. Remove the shift control trim bezel screws. Lift the shift control trim bezel for access.
  3. Rotate the floor shift control indicator lamp socket counterclockwise to release from the trim bezel.
  4. Remove the bulb from the socket.

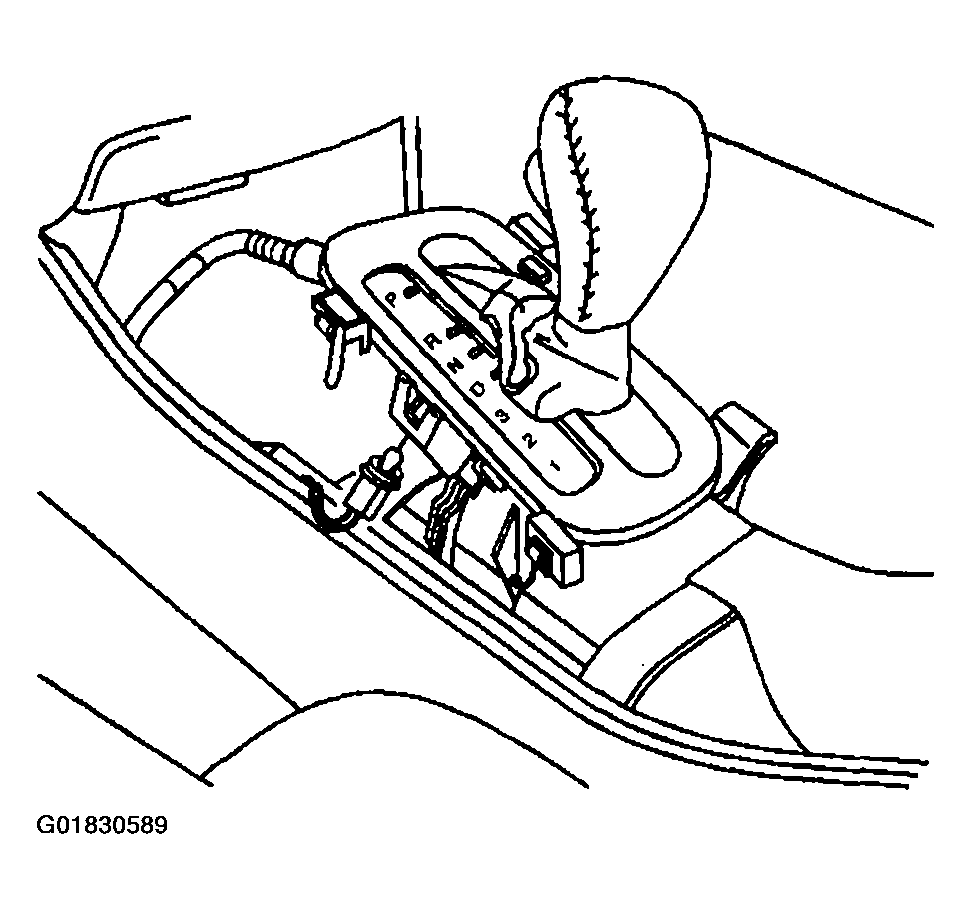

    Fig 1: Removing Trans Floor Shift Control Indicator Lamp
    G01830589Courtesy of GENERAL MOTORS CORP.
