Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the surge tank retainer.
  2. If removed, install the coolant level sensor into the surge tank.
    Fig 1: Install Coolant Level Sensor Into Surge Tank
    G01757979Courtesy of GENERAL MOTORS CORP.
  3. Connect the wiring harness connector to the coolant level sensor.
  4. Install the surge tank.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the surge tank nuts.

    Tighten

    Tighten the nuts to 3 N.m (30 lb in).

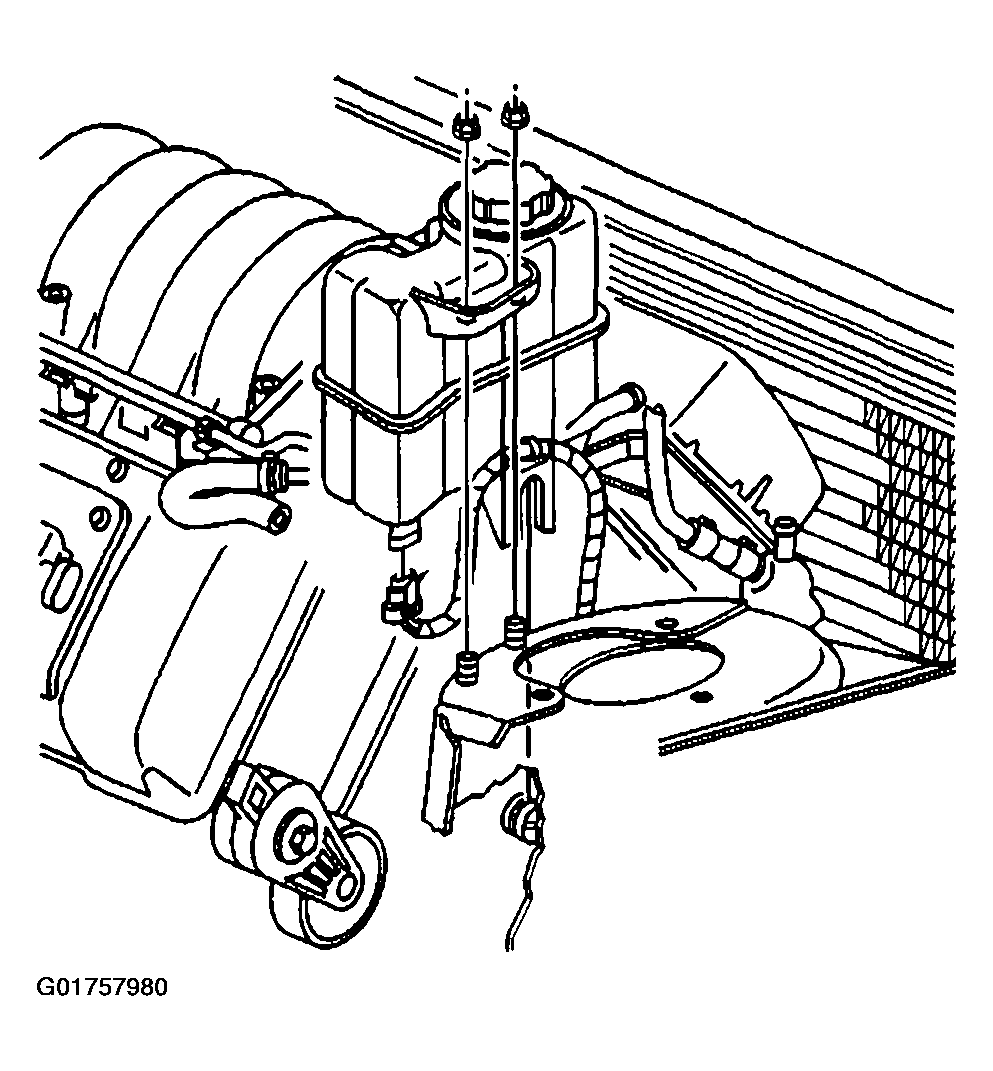

    Fig 2: Connect Wiring Harness Connector To Coolant Level Sensor
    G01757980Courtesy of GENERAL MOTORS CORP.
  6. Install the outlet hose to the surge tank.
  7. Install the outlet surge tank hose clamp to the surge tank use J 38185  .

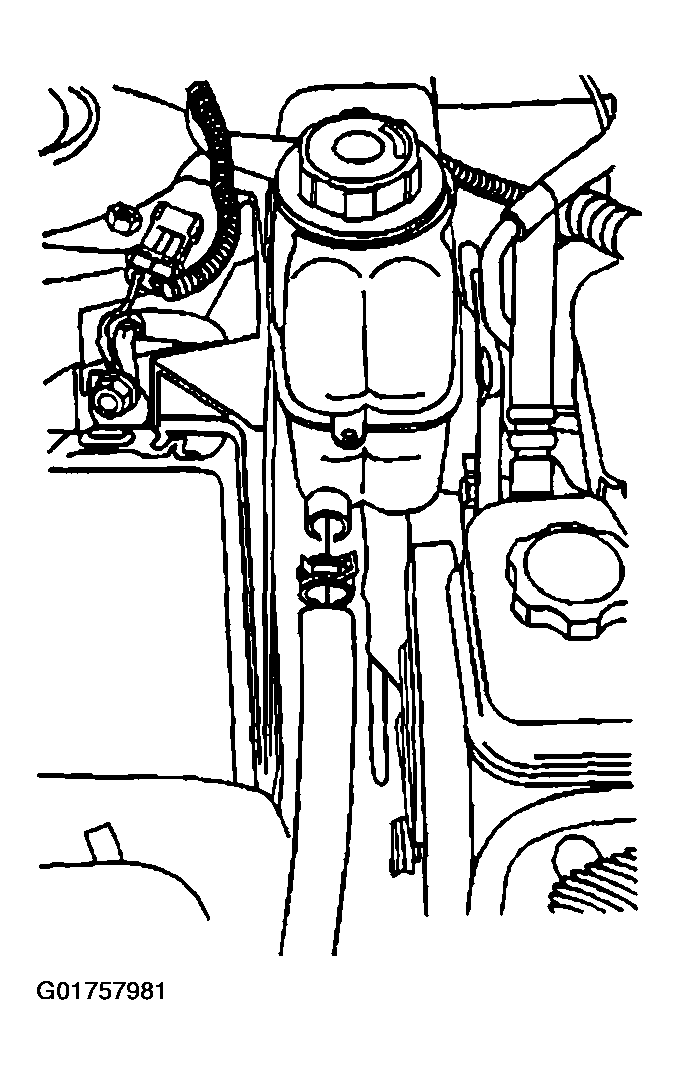

    Fig 3: Install Outlet Surge Tank Hose Clamp To Surge Tank
    G01757981Courtesy of GENERAL MOTORS CORP.
  8. Install the inlet hose to the surge tank.
  9. Install the inlet surge tank hose clamp to the surge tank use J 38185  .
  10. Fill the cooling system. Refer to Draining and Filling Cooling System  in Engine Electrical.
  11. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

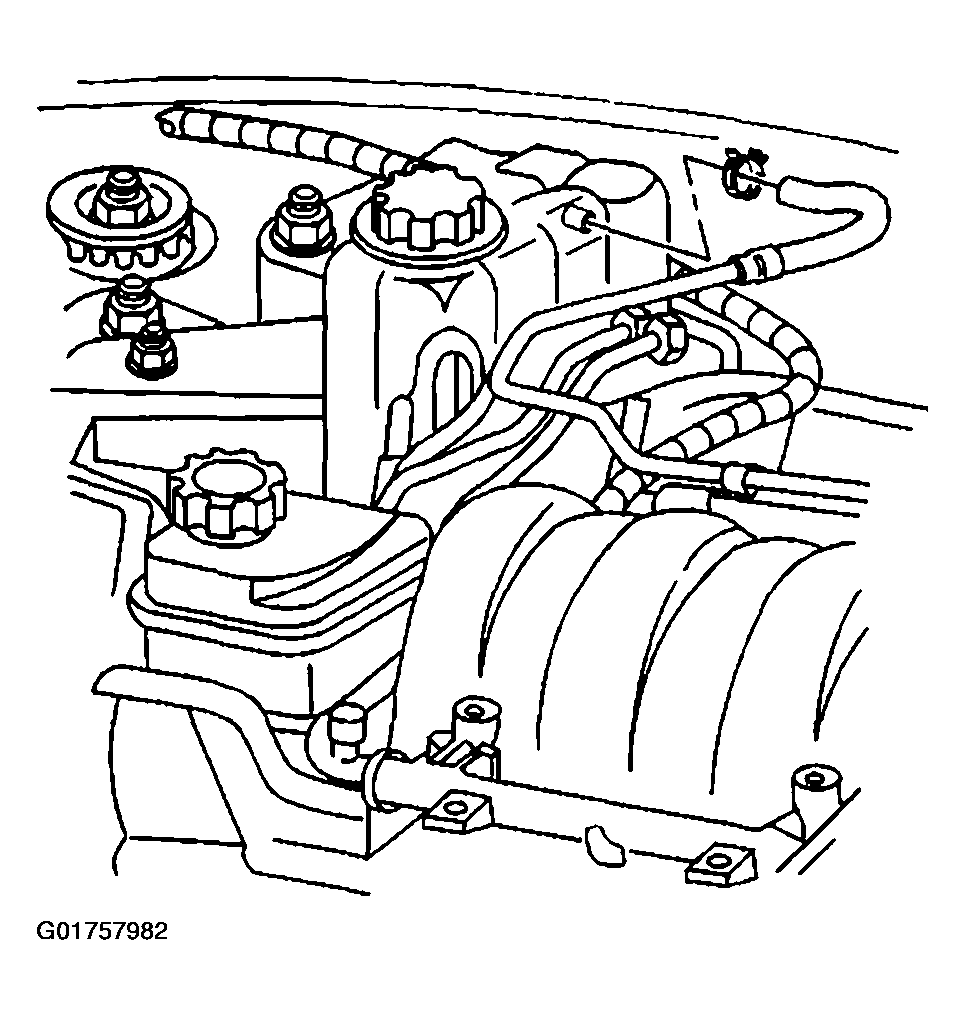

    Fig 4: Install Inlet Surge Tank Hose Clamp To Surge Tank
    G01757982Courtesy of GENERAL MOTORS CORP.
