Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seal on the drain cock stem.
  2. Install the drain cock. Make sure that the body is fully seated in the side tank.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .

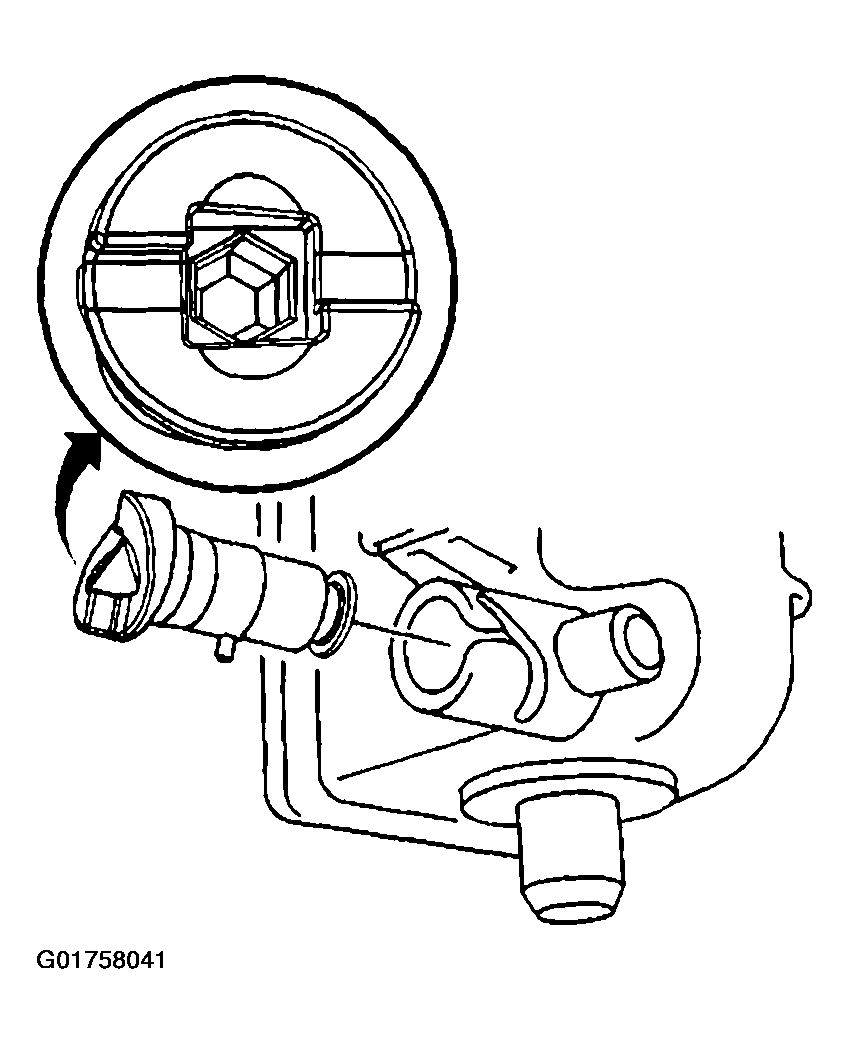

    Fig 1: Install Drain Cock
    G01758041Courtesy of GENERAL MOTORS CORP.
