Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the interior lamp switch to the opening in the overhead console.
  2. Install the fasteners in order to secure the switch to the overhead console.
  3. Connect the electrical connector (1) to the interior lamp switch.
  4. Install the overhead console into the opening in the headliner.
  5. Push in on the overhead console to engage the retainer clips securing the overhead console to the headliner.

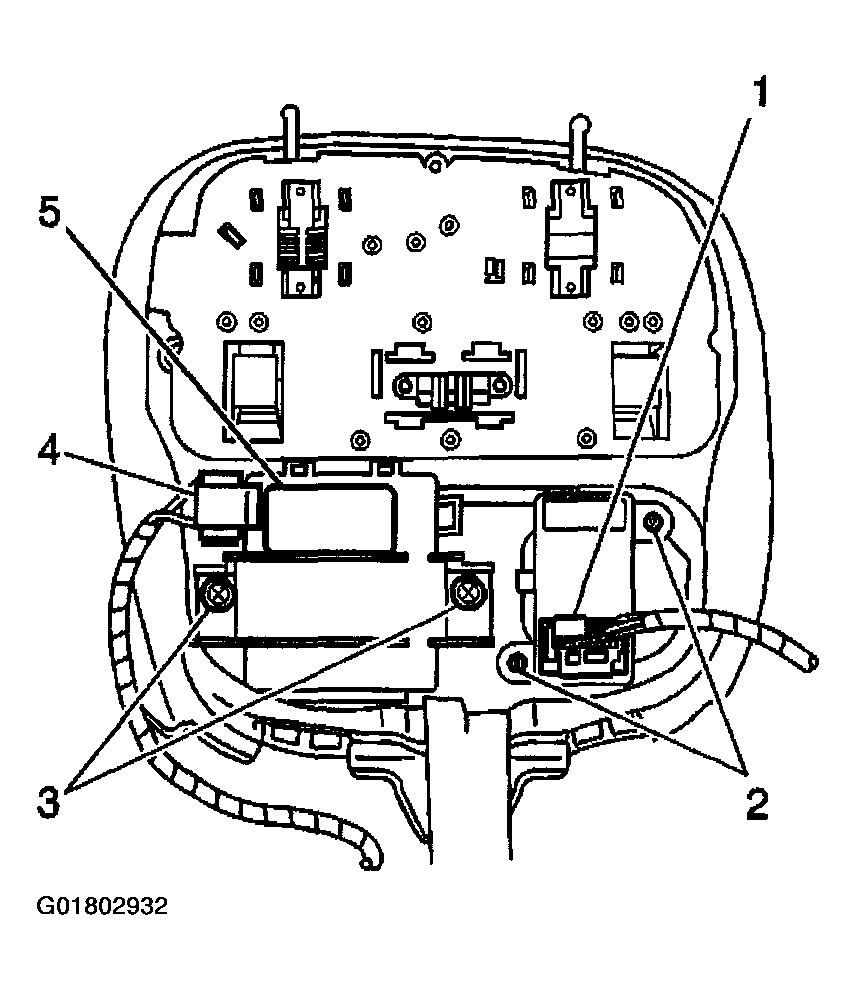

    Fig 1: Installing Interior Lamp Switch
    G01802932Courtesy of GENERAL MOTORS CORP.
