Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the IP storage compartment lamp.

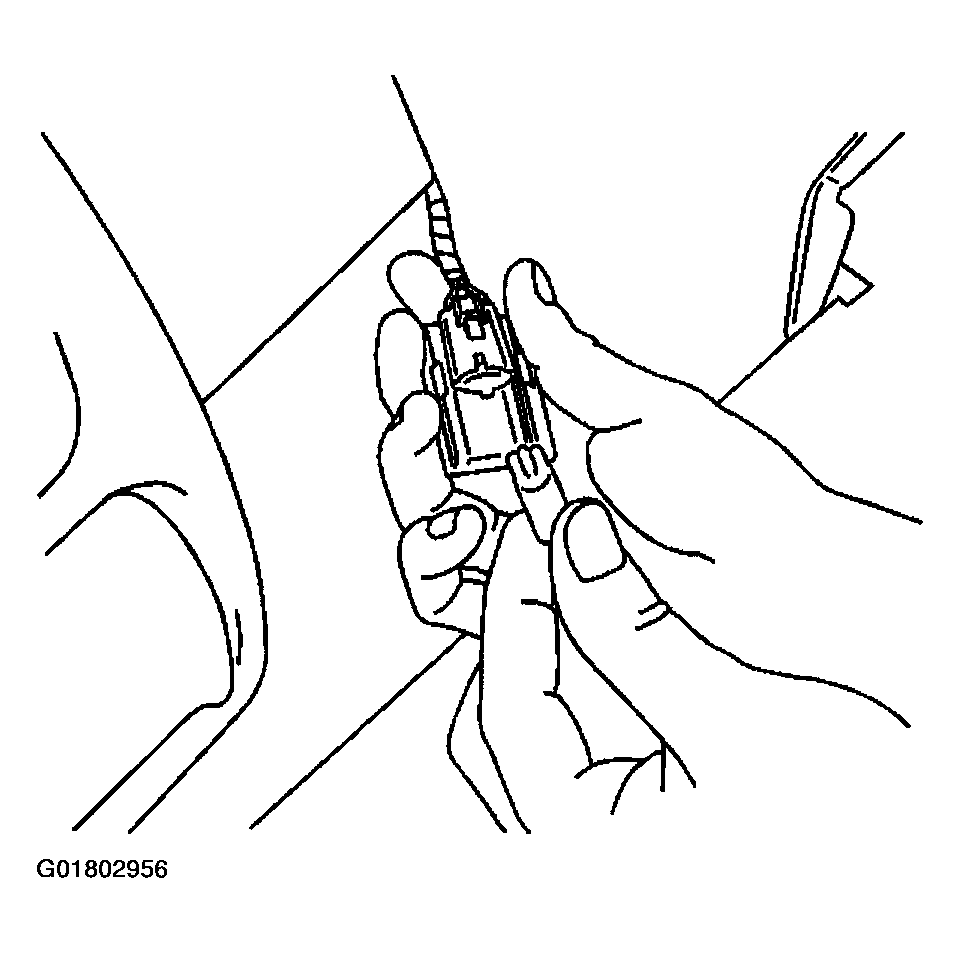

    Fig 1: Installing IP Storage Compartment Lamp Bulb
    G01802956Courtesy of GENERAL MOTORS CORP.
  2. Install the IP storage compartment lamp into the IP storage compartment.
  3. Connect the electrical connector to the IP storage compartment lamp.
  4. Install the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- IP .

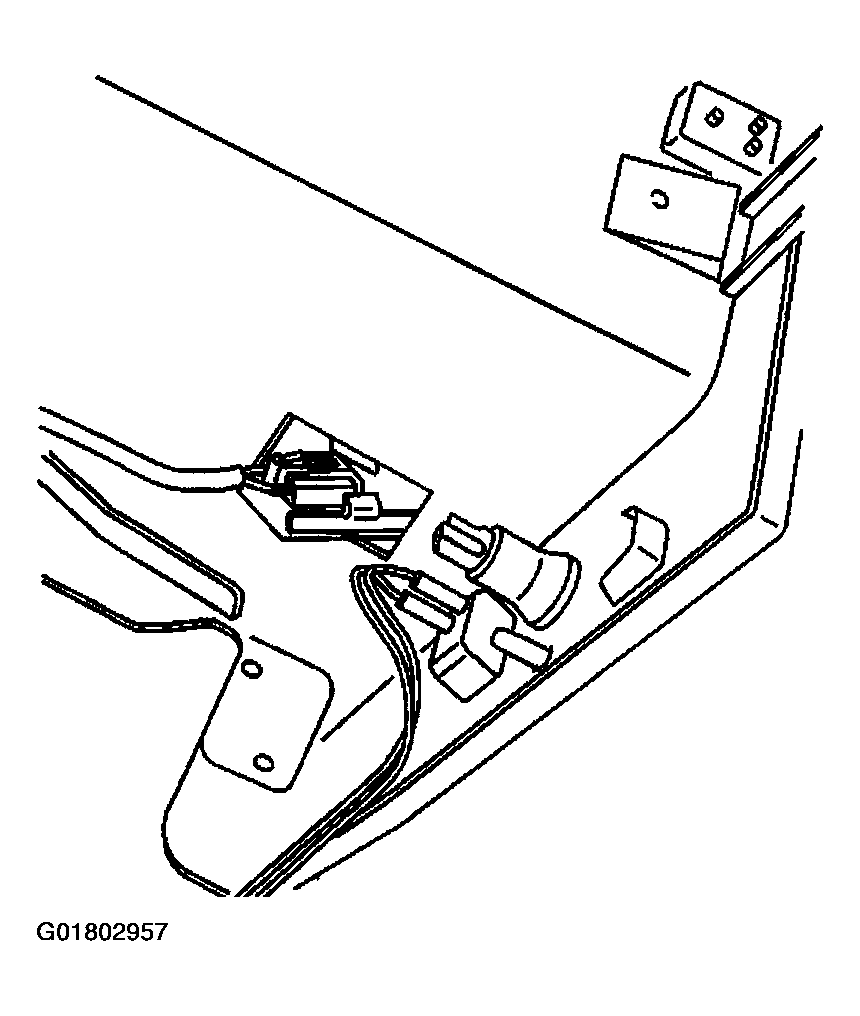

    Fig 2: Connecting IP Storage Compartment Lamp Electrical Connector
    G01802957Courtesy of GENERAL MOTORS CORP.
