DTC P0568: Cruise Set Circuit: Notes

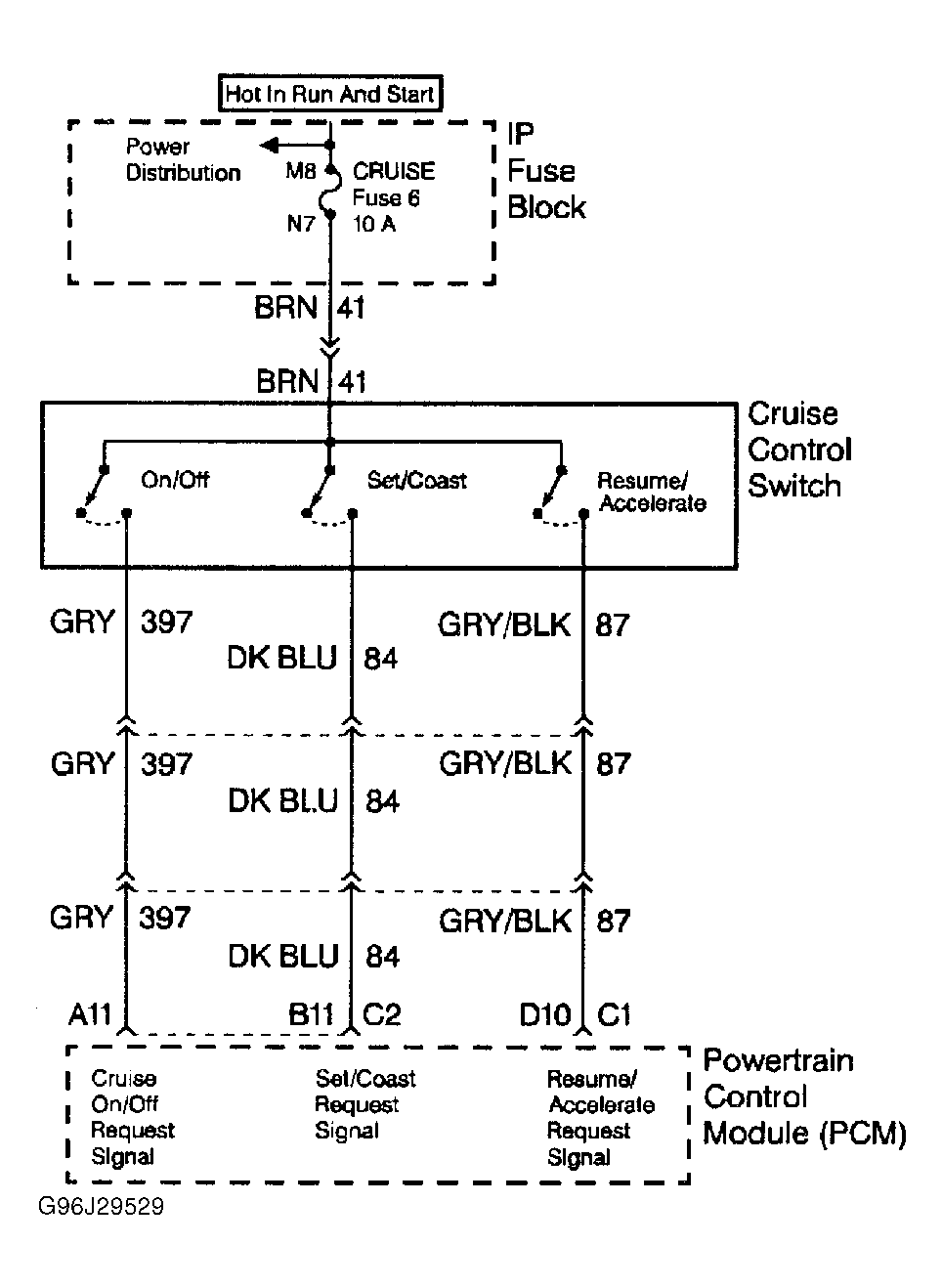

NOTE: For circuit reference, refer to DTC P0567 schematic. See Figure.
