DTC P0215: Engine Shutoff Solenoid Control Circuit: Notes

NOTE: For circuit reference, refer to appropriate schematic. See Fig 1 or Fig 2 .

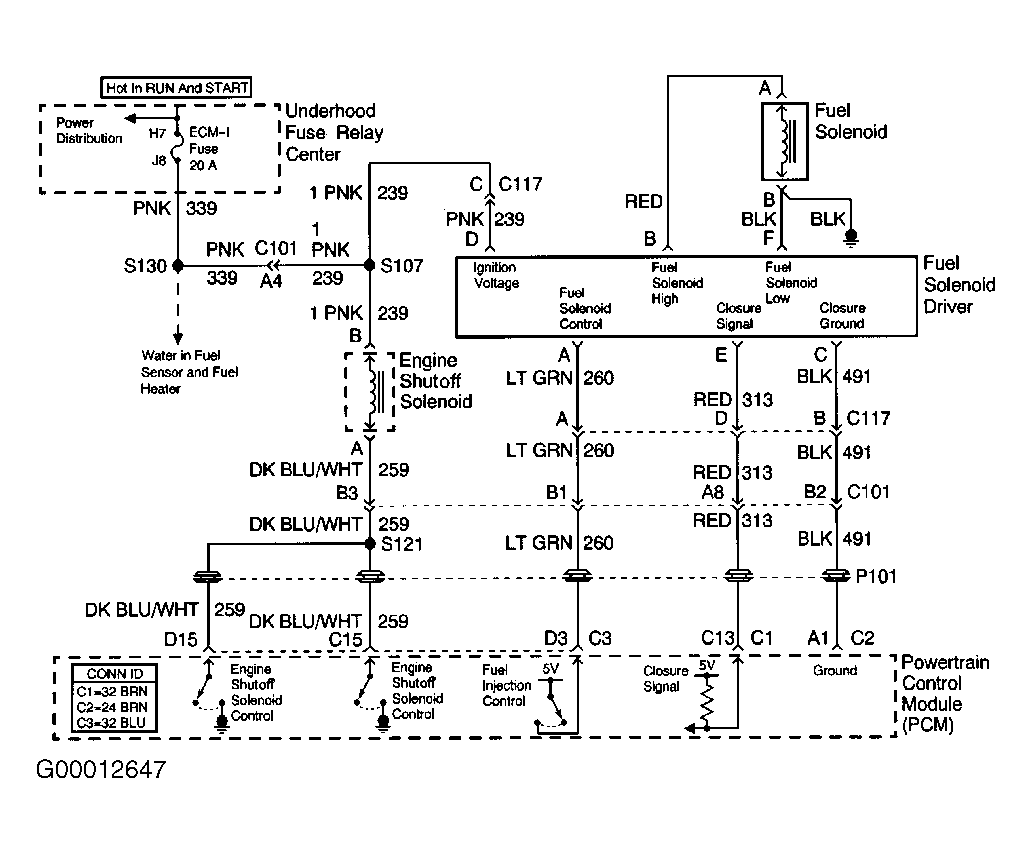

Fig 1: Engine Shutoff Solenoid & Fuel Solenoid Control System Circuit Diagram ("C" & "K" Series)

Courtesy of GENERAL MOTORS CORP.

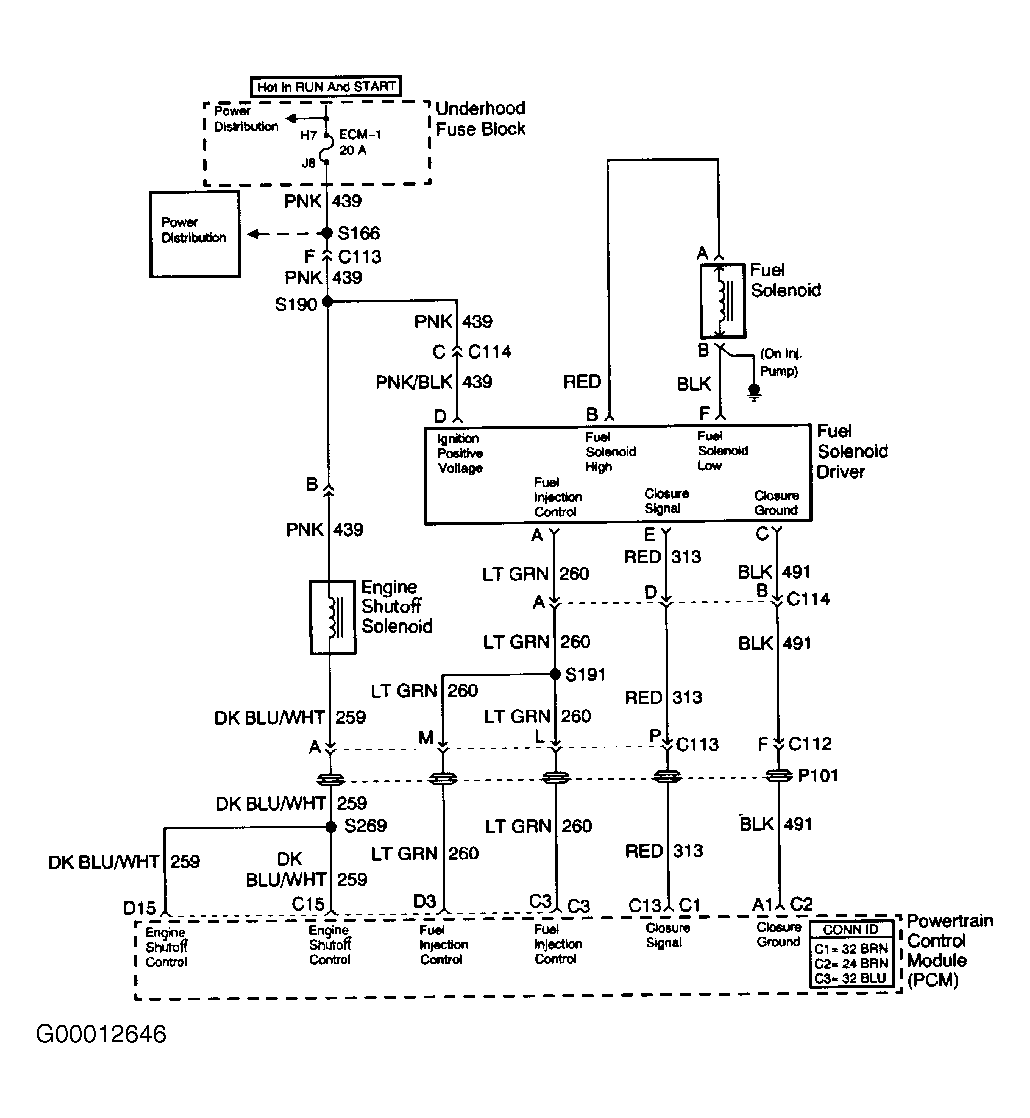

Fig 2: Engine Shutoff Solenoid & Fuel Solenoid Control System Circuit Diagram ("G" Series)

Courtesy of GENERAL MOTORS CORP.
