Test D: Fuel Gauge Does Not Change Position On Scale

NOTE: Refer to Technical Service Bulletin No. 83-83-07 for up-to-date fuel level sensor resistance values. See FUEL LEVEL SENSOR REPLACEMENT PROCEDURE .

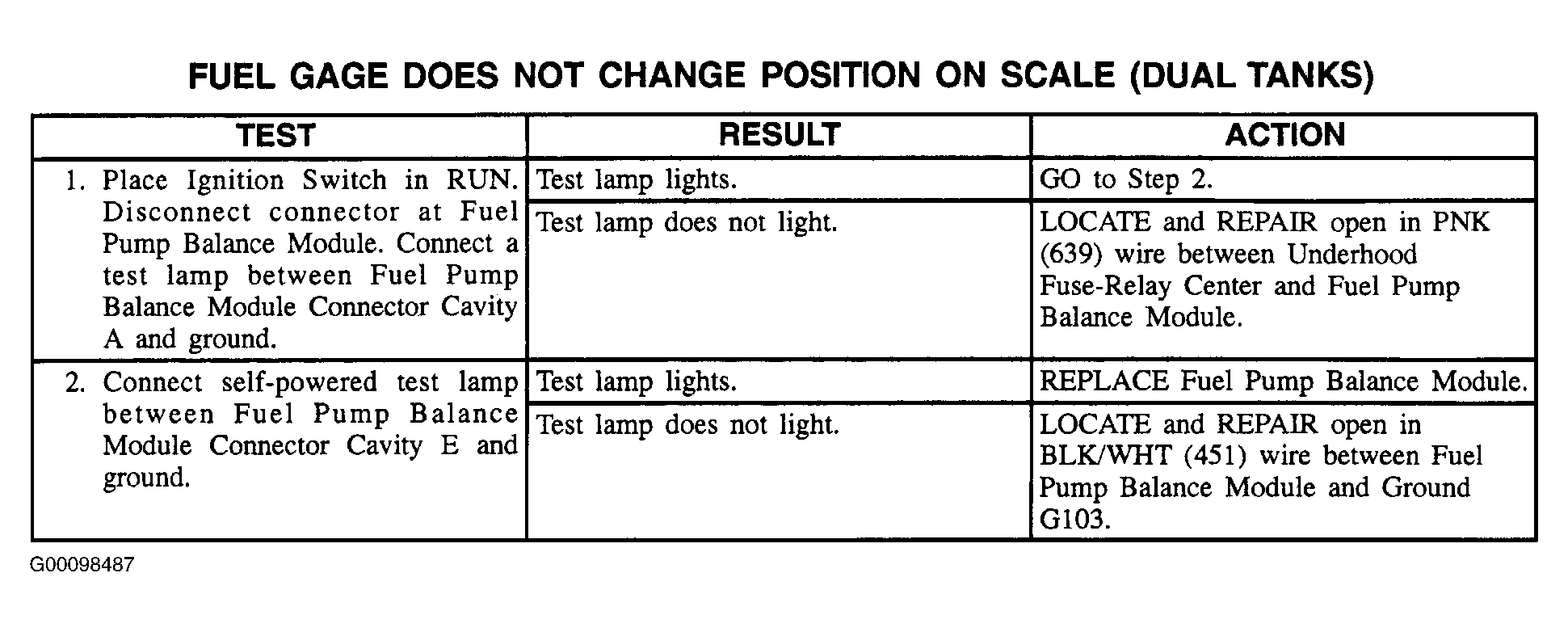

Fig 1: Fuel Gauge Does Not Change Position On Scale - Diagnostic Chart
G00098487Courtesy of GENERAL MOTORS CORP.
