FOGLIGHT/Rear Hatch Switch

Carefully pry the lower edge of the foglight/rear hatch switch to release locking tab. See Fig 1. Disconnect electrical connectors and remove switch. To install, reverse removal procedure.

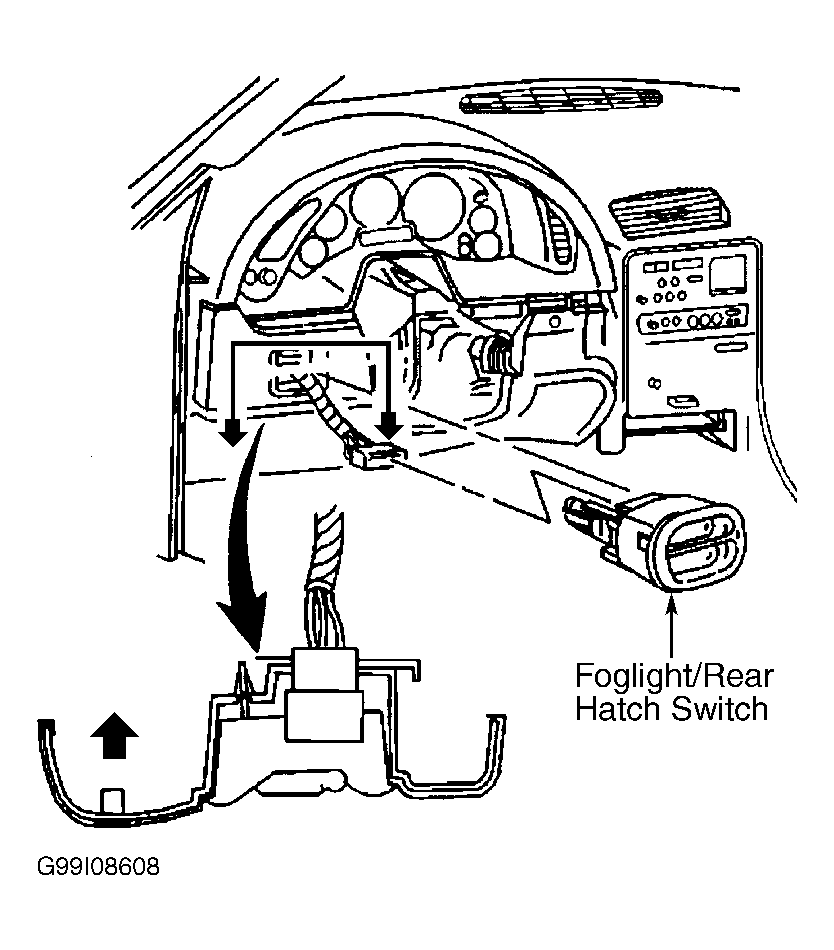

Fig 1: Removing Foglight/Rear Hatch Switch
G99I08608Courtesy of GENERAL MOTORS CORP.
