Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located behind driver's side kick panel. See Fig 1 .

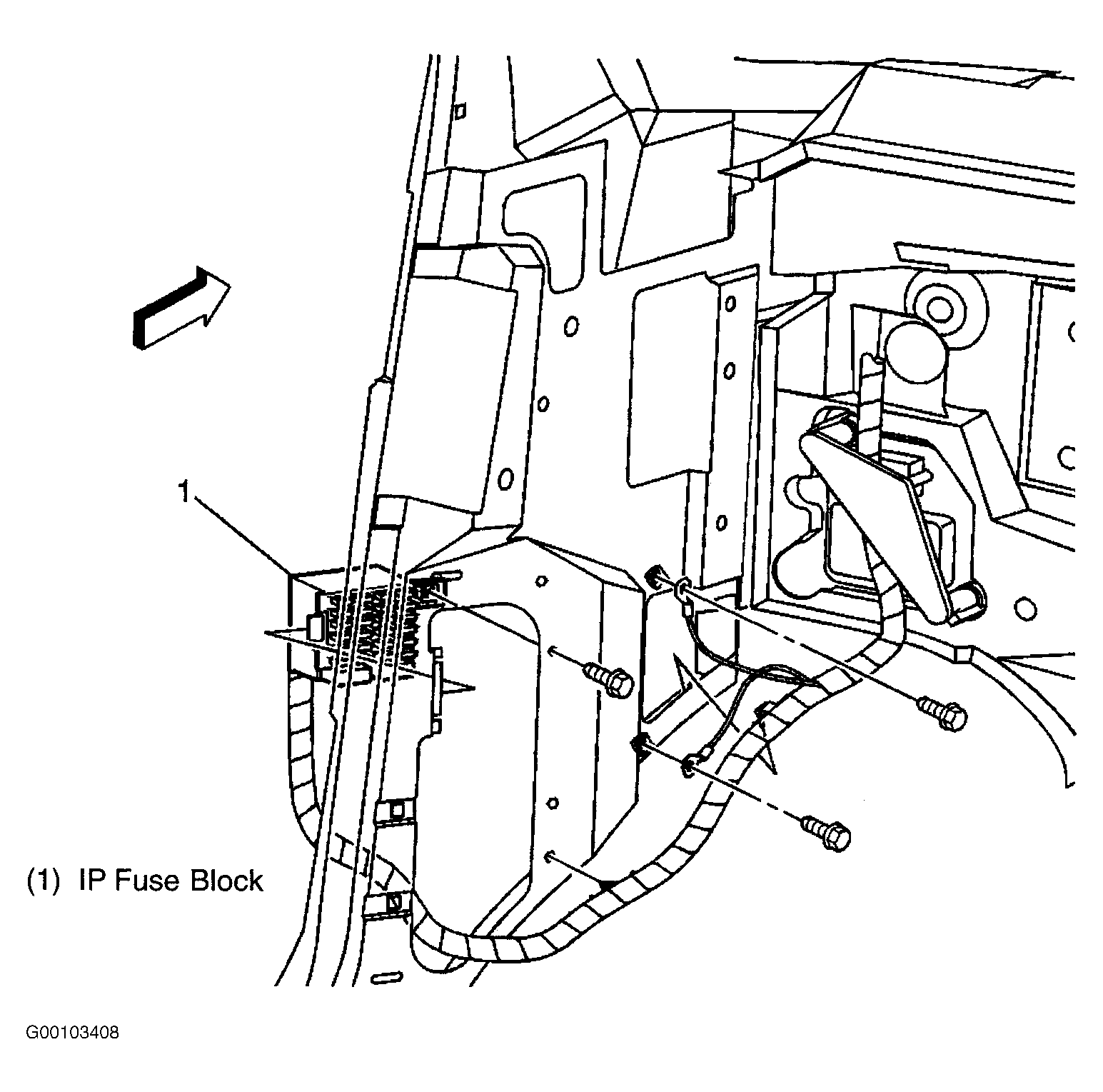

Fig 1: Locating Instrument Panel Fuse Block
G00103408Courtesy of GENERAL MOTORS CORP.

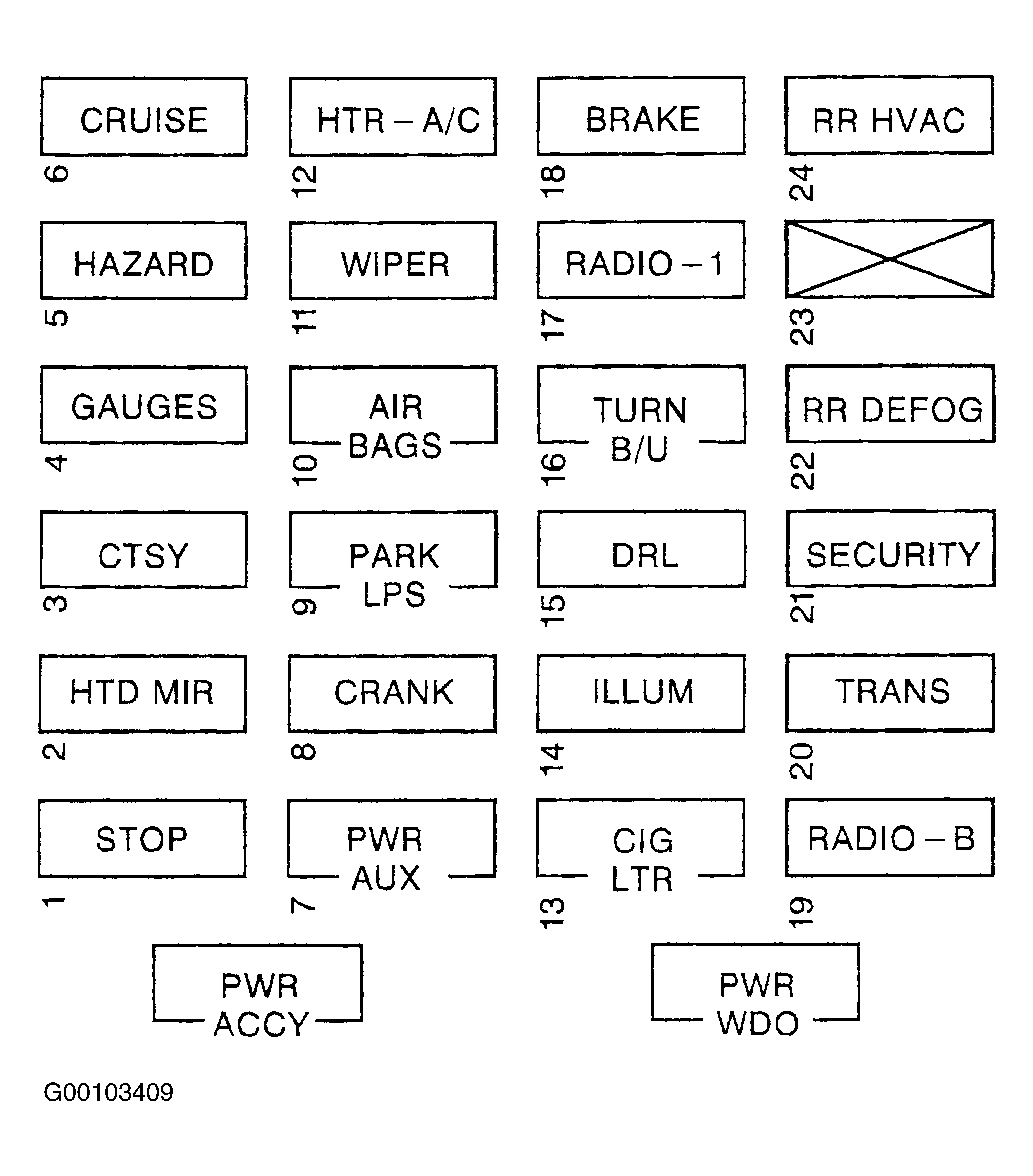

Fig 2: Identifying Instrument Panel Fuse Block Components
G00103409Courtesy of GENERAL MOTORS CORP.

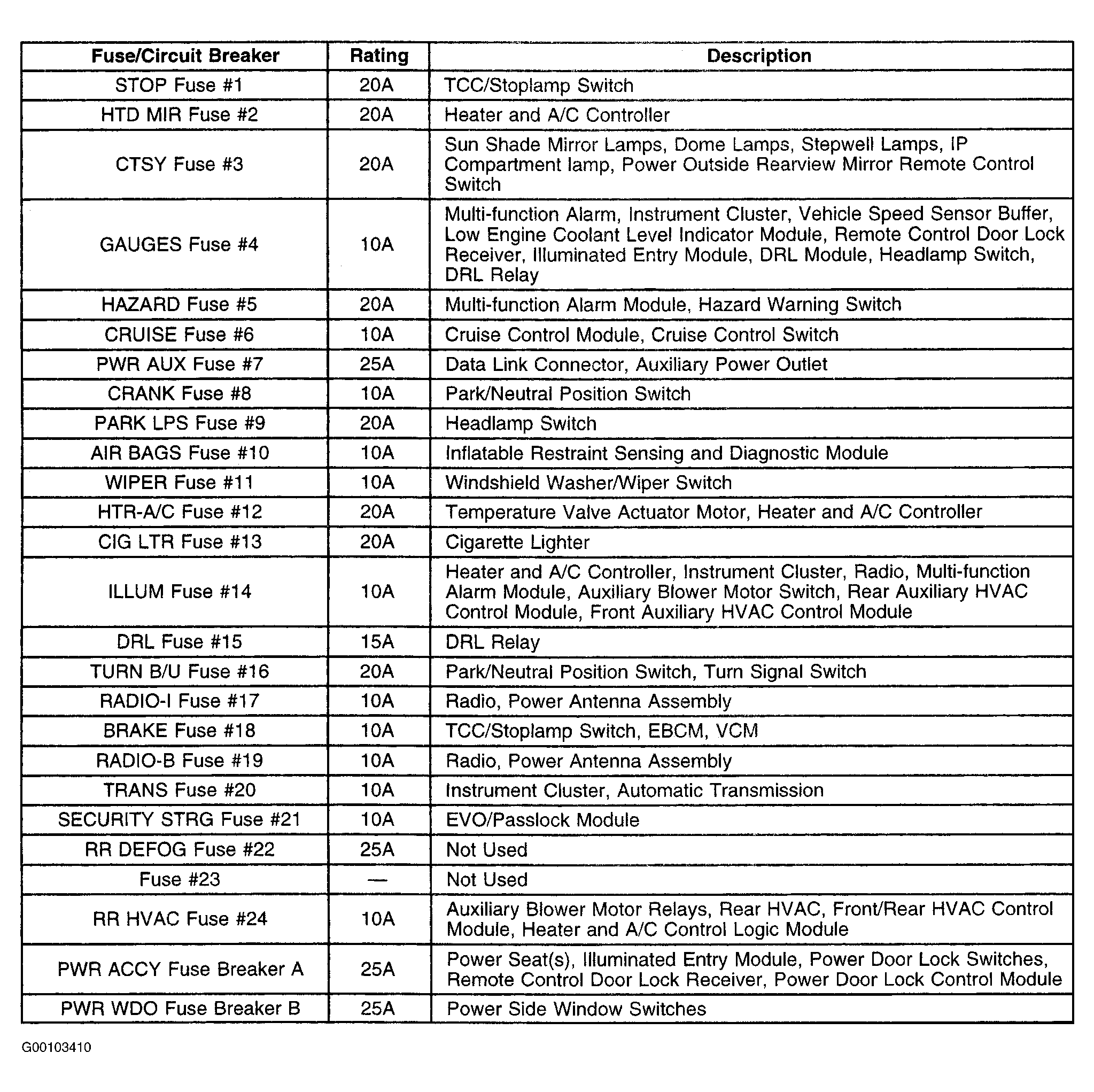

Fig 3: Instrument Panel Fuse Block Legend
G00103410Courtesy of GENERAL MOTORS CORP.
