Park/Neutral Position Switch: Removal

  1. Apply the parking brake. Shift the transmission into Neutral. Disconnect the negative battery cable.

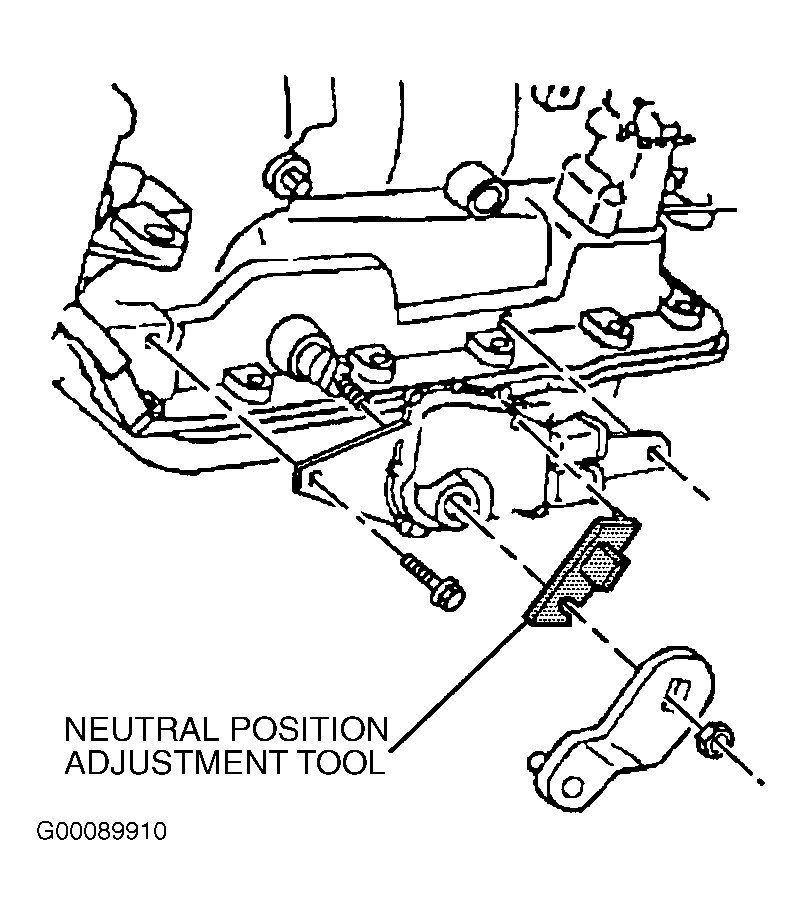

  2. Remove the nut securing the transmission control lever to the manual shaft. Remove the transmission control lever from the manual shaft. See Figure .
  3. Disconnect the wiring harness connector from the PNP switch.
  4. Remove 2 bolts securing the PNP switch to the transmission. Remove the PNP switch from the manual shaft.
