Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

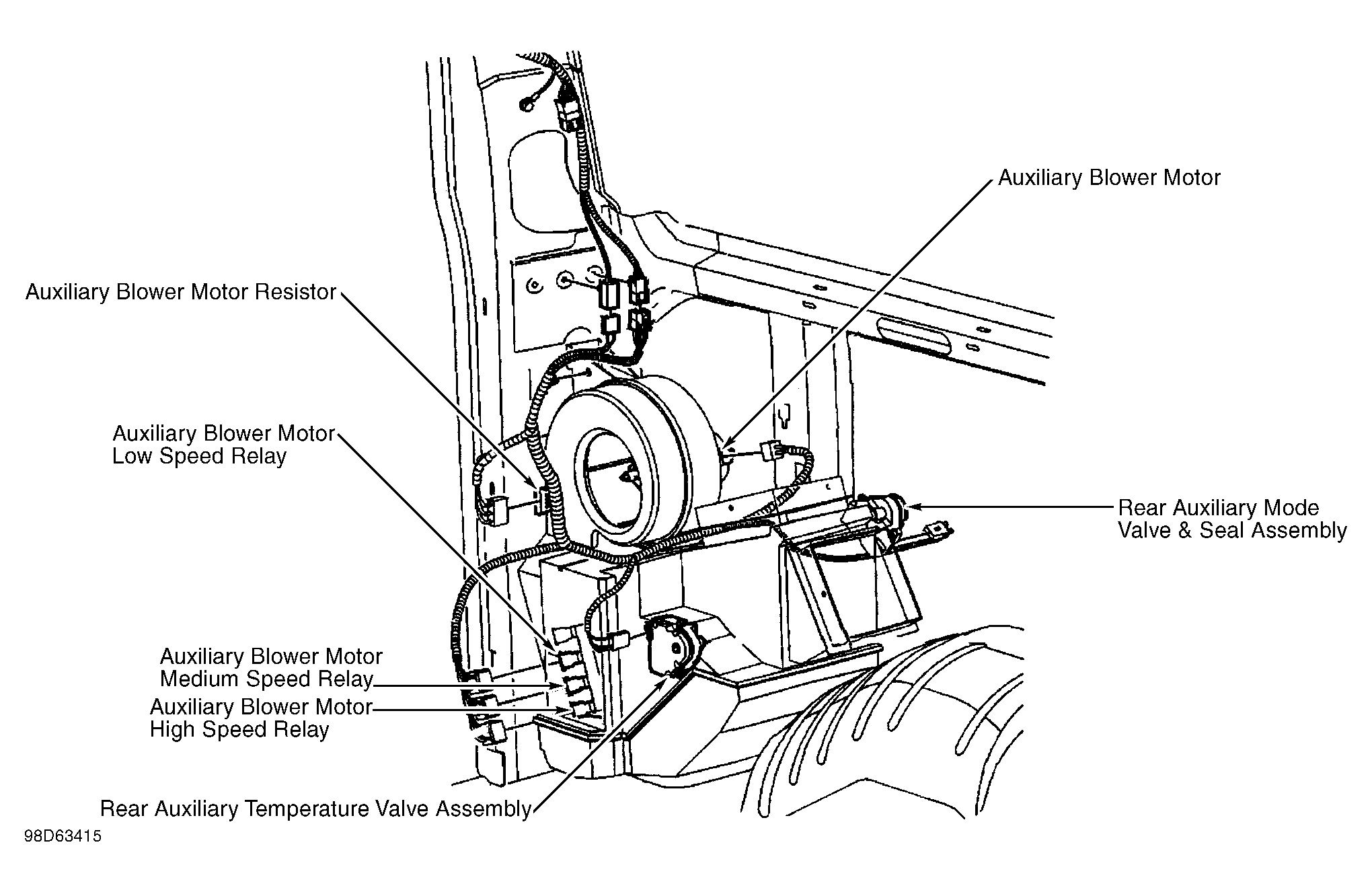

| Auxiliary Blower Motor Resistor | On left rear of interior cabin, behind rear wheelwell. See Figure . |
| Battery Junction Block | On right front side of engine compartment, next to radiator. |
| Convenience Center | Under left side of dash. |
| Data Link Connector (DLC) | Under left side of dash. See Figure . |
| Distributor (Gasoline) | On top rear of engine. |
| Fuel Filter/Manager (6.5L VIN F) | On left frame rail, near center of vehicle. See Figure . |
| Fuel Heater (6.5L VIN F) | On left frame rail, near center of vehicle, part of fuel filter/manager. See Figure . |
| Fuel Injectors (6) (4.3L VIN W) | On top of intake manifold. |
| Fuel Injectors (8) (5.0L VIN M) | On top of intake manifold, at each cylinder. |
| Fuel Injectors (8) (5.7L VIN R) | On top of intake manifold, at each cylinder. |
| Fuel Injectors (8) (7.4L VIN J) | On top of intake manifold, at each cylinder. |
| Fuel Injection Pump (6.5L VIN F) | On top front of engine. See Figure . |
| Fuel Pump Prime Connector | On left side of engine compartment. |

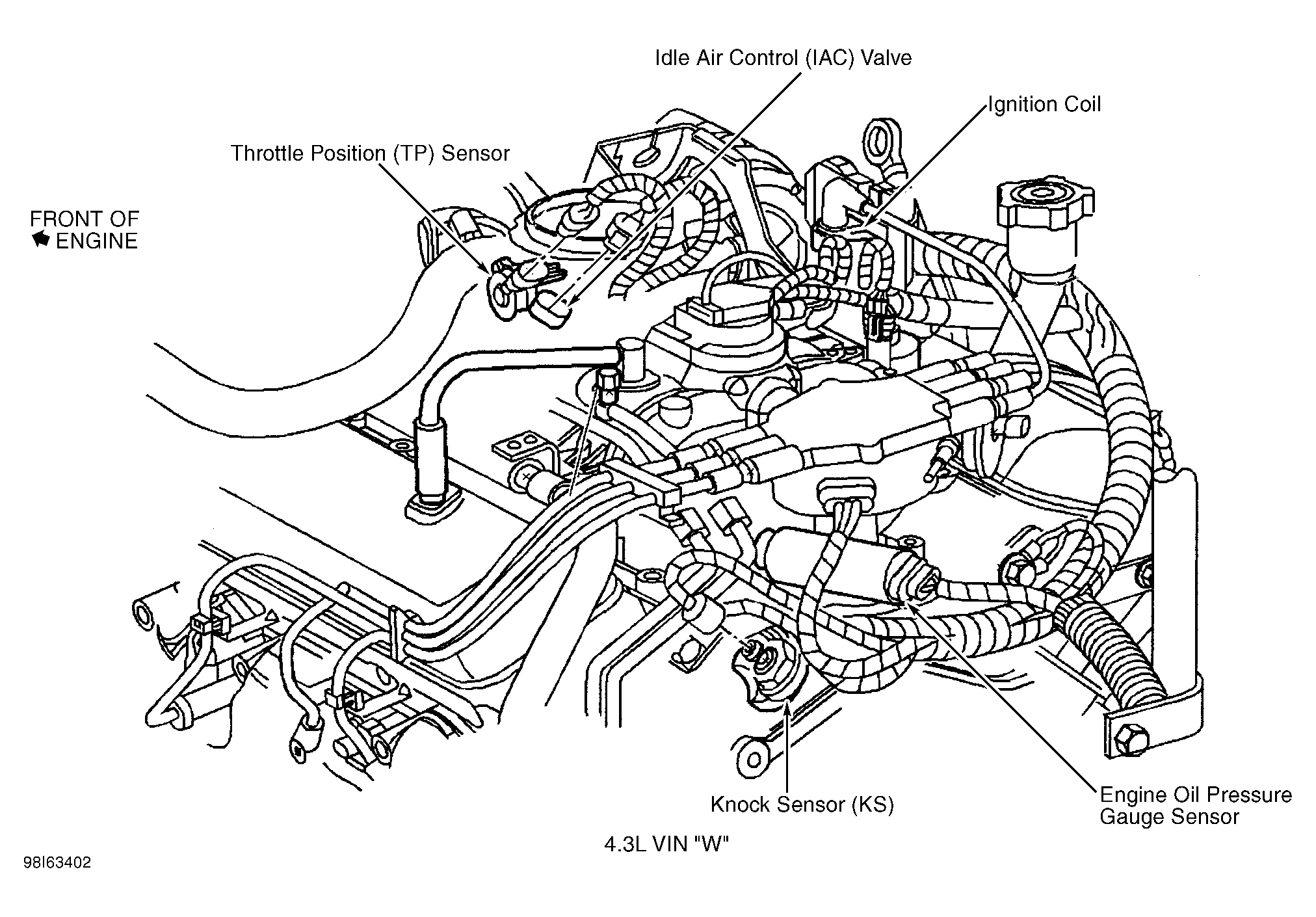

| Ignition Coil (4.3L VIN W) | On top right side of engine. See Figure . |
| Ignition Coil (5.0L VIN M) | On top rear of engine. See Figure . |
| Ignition Coil (5.7L VIN R) | On top rear of engine. See Figure . |
| Ignition Coil (7.4L VIN J) | On top rear of engine. |
| Inflatable Restraint Diagnostic Resistor | Behind right side of dash. |
| Vehicle Speed Sensor Buffer (6.5L VIN F) | Below dash, near steering column. |
